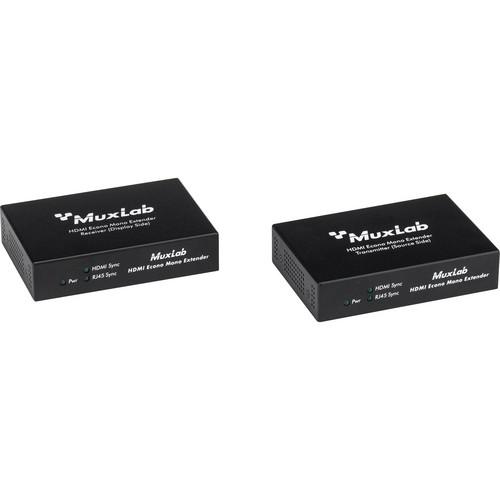

Product description The MuxLab HDMI Econo Mono Extender Kit is a transmitter and receiver set that extends an HDMI signal up to 230 ft over one Cat5e/6 cable, carrying, for example, a DVD player signal to a TV in a different room. Additional to the transmitter and receiver, the kit also includes an IR emitter and an IR sensor. One connects to the transmitter and the other to the receiver so that the remote control of the input source -- the DVD player, per the above example -- can be used in the room that the output source is in (by pointing at the IR Sensor).
Resolutions up to 1080p can be carried 230 ft, and 3840 x 2160 4K signals can be carried 115 ft -- the extender's HDMI connectors are HDMI 1.3a, but they have all but two features of HDMI 1.4, and 1.4 supports both 4K and 3D. The two missing features are audio return and LAN. UPC: 627699004517 In the Box MuxLab HDMI Econo Mono Extender Kit 2 x Power Supply with Interchangeable Blades 500998 IR Emitter zvsfzsdfwuzaursuaevrauvutdwaftfrsvsca 500999 IR Sensor 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI Econo Mono Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500451 Specs Environment | HDMI 1.3a, HDBaseT (5 Play technology) Supports the 3D / 4K features of HDMI 1.4 Supports all digital audio modes: 7.1 Ch, Dolby TrueHD, DTS-HD | Bandwidth | 340 MHz | Connections | Transmitter: 1x HDMI 1.3a 1x RJ45S 1x 3.5 mm jack for IR Emitter
Receiver: 1x HDMI 1.3a 1x RJ45S 1x 3.5 mm jack for and IR Sensor | Distance | Based on a maximum length of 6.6 ft (2 m) of HDMI cable per end:
480i/p, 720p, 1080i, 1080p, 1080p Deep Color by Cat 5e/6: 230 ft (70 m) 4K (3840 x 2160) by Cat 5e/6: 115 ft (35 m)
When installed in an electrically noisy environment, an STP cable must be used. Cross-connection reduces effective distance depending on the grade of twisted cable used. Patch panels are not recommended with 1080p Deep Color. | RJ45 Pin Configuration | Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight-through wiring
Pin 1 (R) Pin 3 (R) Pin 4 (R) Pin 7 (R)
Pin 2 (T) Pin 5 (T) Pin 6 (T) Pin 8 (T) | Enclosure | Metal | Compliance | FCC Class A, CE, RoHS | Power Supply | 110-240 V / 5 VDC (2x with interchangeable blades included) | Power Consumption | Transmitter: 1.6 W Receiver: 3.2 W | Operating Temperature | 32 to 104°F (0 to 40ºC) | Storage Temperature | -4 to 185°F (-20 to 85ºC) | Operating Humidity | Up to 95% non-condensing | Dimensions | 4.4 x 3 x 1" (11.2 x 7.6 x 2.5 cm) | Weight | 1.4 lb (.63 kg) | | Package Weight | 1.8 lb | Box Dimensions (LxWxH) | 8.3 x 5.8 x 2.9" |
