User Manual for MuxLab HDMI Fiber Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI Fiber Extender Kit
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab HDMI Fiber Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

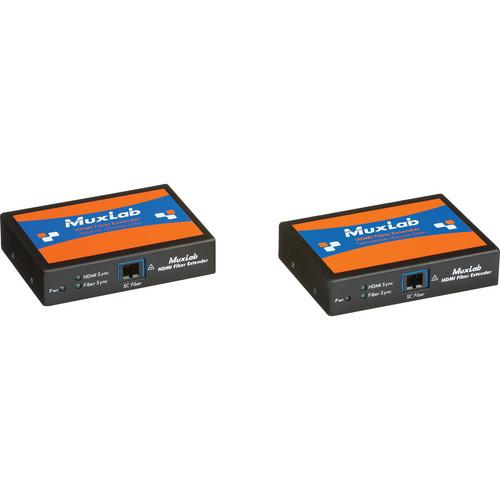

Product description The Muxlab HDMI Fiber Extender Kit from MuxLab is designed to transport DVI signals over extended distances using multimode fiber cables. The Extender Kit includes a transmitter and receiver as well as an IR sensor and emitter for remote control applications. - Transmits HDMI signals to AV equipment up to a distance up to 1000' (305 m) via multi-mode cables
- Works with DVDs, projectors, PC, laptops, TVs, monitors, and plasma displays
- Point-to-point configuration
- Includes transmitter and receiver as well as IR sensor and emitter for remote applications
- Can be used with deep color equipment
- Suitable for use with commercial AV and digital signage systems, industrial video systems, classroom projector systems, interbuilding systems, and medical video systems
UPC: 627699004609 In the Box MuxLab HDMI Fiber Extender Kit Transmitter Receiver 500998 IR Emitter 500999 IR Sensor 2 x 110 to 240 V / 5 VDC Power Supplies with Interchangeable Blades 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI Fiber Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500460 Specs | Environment | HDMI 1.3a | | Devices | DVD, plasma displays, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Transmission | Transparent to the user | | Bandwidth | 340 MHz | | Signals | HDMI 1.3a protocol | | Connectors | One HDMI receptacle
One SC fiber connector
3.5 mm jacks for IR emitter and sensor
DB9 connectors for RS-232 ports Fiber and serial cables not included | | Maximum Distance | 1080p video may be extended up to 1000' (305 m), depending on the type of fiber used 100 m (300') on 62.5/125 µm (OM1) multimode SC fiber
305 m (1000') on 50/125 µm (OM3) multimode SC fiber Based on a maximum length of 6.6' (2 m) of HDMI cable per end | | Cable | One multimode fiber 50/125 µm or 62.5/125 µm cable required | | Power Supply | 110 to 240 V / 5 VDC | | Power Consumption | Transmitter: 2.7 W
Receiver: 2.3 W | | Temperature | Operating: 32 to 104 ºF (0 to 40 °C)
Storage: -4 to 185 ºF (-20 to 85 °C)
Humidity: Up to 95% non-condensing | | Enclosure | Steel | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 4 x 3 x 0.9" (102 x 76 x 22 mm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.8 x 7.7 x 3.4" |
