User Manual for MuxLab HDMI Mono Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI Mono Extender Kit
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab HDMI Mono Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

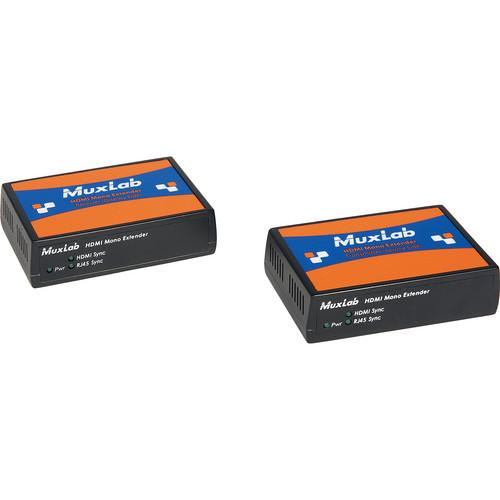

Product description The HDMI Mono Extender Kit from MuxLab is designed to extend HDMI 1.3a signals using a transmitter and receiver. When connected to a Cat5e/6 unshielded twisted pair cable, the kit can extend your transmission distances up to 330’ in a point-to-point configuration. It supports resolutions of up to 4K, and it includes an IR emitter and sensor for remote control. This kit is suitable for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems. - Extend transmission distances for HDMI 1.3a signals with a transmitter and a receiver
- Uses Cat5e/6 unshielded twisted pair cable
- Transmission distances up to 330' in a point-to-point configuration
- Supports up to 4K resolutions
- IR signaling for remote control using an included IR emitter and sensor
- Suitable for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems
UPC: 627699004500 In the Box MuxLab HDMI Mono Extender Kit Power Adapter IR Emitter (500998) IR Sensor (500999) Limited 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI Mono Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500450 Specs | Environment | HDMI 1.3a, HDBaseT (supports 3D feature of HDMI 1.4) | | Devices | DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Transmission | Transparent to the user | | Bandwidth | 340 MHz | | Signals | HDMI 1.3a, HDBaseT | | Connectors | 1 x HDMI receptacle
1 x RJ45S for Cat5e/6 unshielded or shielded twisted pair 1 x 3.5mm jack for IR emitter and IR Sensor | | Maximum Distance | 480i/p, 720p, 1080i, 1080p, 1080p Deep Color: Cat 5e/6 up to 330' (100 m)
STP cable is suggested for electrically noisy environments
Cross connection can reduce effective distance, depending on cables used | | Cable | Cat5e/6 or better twisted pair cable required | | Power Supply | 110 to 240 V / 12 VDC power supply with interchangeable blades | | Power Consumption | Transmitter: 1.8 W
Receiver: 3.6 W | | Temperature | Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C)
Humidity: Up to 95% non-condensing | | Enclosure | Cast aluminum | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 4.50 x 3.00 x 1.25" (11.4 x 7.6 x 3.2 cm) | | Weight | 2.0lb (0.9kg) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 12.1 x 7.1 x 4.3" |
