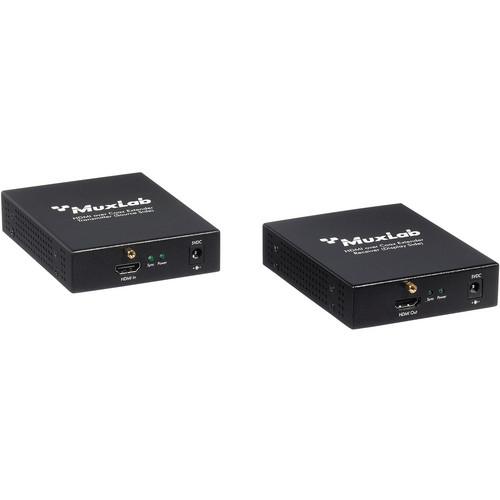

User Manual for MuxLab HDMI-over-Coax Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI-over-Coax Extender Kit
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab HDMI-over-Coax Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The HDMI-over-Coax Extender Kit from MuxLab enables the long-distance transmission of HDMI signals over a RG-59 or RG-6 coax cable, eliminating the need for long and expensive custom HDMI cables. With a range of up to 800' for 480i, and 300' for 1080p, you can use the kit for digital signage, projection systems, A/V systems, or any other application where the source is far from the display.The incoming digital signal from a source, such as a computer or DVD player, is converted to analog, transmitted through the coax, converted back to digital in the receiver, and sent to an HDMI port on a display. This system is ideal for upgrading an existing system, since it eliminates the need for re-wiring, while providing the benefit of 1080p resolutions. - Recommended Uses
-
- For devices such as DVD players, HD televisions, projectors, monitors, and servers
- Commercial applications including digital signage, surveillance system public monitor, A/V systems
- Education/Business applications such as A/V systems, projector systems, collaborative PC systems
- Cascadable, with additional optional equipment, to support multiple displays
- HD Video/Audio Transmission
-
- Eliminates the need for long custom HDMI cable
- Transmit HDMI signal over coax cable
- Supports resolutions from 480i to 1080p
- Maximum range of up to 800' at 480i, or 300' at 1080p
UPC: 627699004654 In the Box MuxLab HDMI-over-Coax Extender Kit Receiver Unit Transmitter Unit 2 x 110 - 240 VAC/5 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI-over-Coax Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500465 Specs | Bandwidth | 225 MHz | | Connector | 1 x HDMI port2 x BVC connector | | Resolution | 480i, 576i, 720p, 1080i, 1080p | | Range | 480i:RG-59 cable: 650 ft (198 m), RG-6 cable: 800 ft (244 m)
720p, 1080i:RG-59 cable: 500 ft (152 m) RG-6 cable: 650 ft (198 m)
1080p:RG-59 cable: 250 ft (76 m) RG-6 cable: 300 ft (91 m) | | Power | 2 x 110 - 240 VAC/5 VDC power supplyConsumption: Transmitter: 3.3 W, Receiver: 3.6 W | | Compliance | Regulatory: FCC, CE, RoHSFlammability: 94V0 | | Environmental | Operating: 32 to 104 ° F (0 to 40 ° C)Humidity: Up to 95%, non-condensing | | Dimensions | 4.7 x 3.5 x 1.2" (12 x 9 x 3 cm), per unit | | Weight | 20.8 oz (590 g), per unit | | | | Package Weight | 3.08 lb | | Box Dimensions (LxWxH) | 12.6 x 7.6 x 6.55" |
