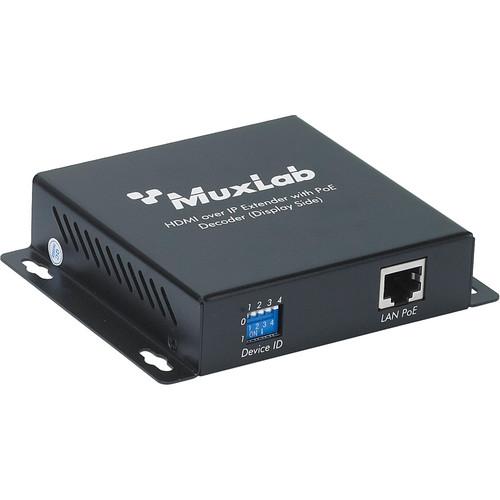

Product description The MuxLab HDMI over IP Decoder with PoE connects with a separately-sold encoder and extends an HDMI signal for up to 328 ft over a CAT5e/6 twisted pair cable, in resolutions up to 1080p.
You can run this decoder directly to an encoder, or you can incorporate an optional LAN switch and connect up to 200 decoders to one or up to 16 encoders. The maximum number of decoders is limited to 200 because of bandwidth limitations. A 4-position dip switch is available on both the decoder and optional encoders for setting device IDs and connecting the units together. If you use a LAN switch with PoE, you won't need to use a power supply with any of your decoder/encoder units.
A control software called HDMI over IP is available for free download on the MuxLab website for controlling multipoint configurations. A 3.5mm jack is available for optional IR control. - Key Features
-
- Supports 1080p HDMI signal from 328 ft over a CAT5e/6 twisted pair cable
- Works in multipoint configurations of up to 16 encoders and 200 decoders
- No power supply is required if you incorporate optional LAN switch with PoE
- 4-position dip switch for device ID addressing
- 3.5mm jack for optional IR control
- Includes free-download control software
- 225 MHz bandwidth
- 1 frame latency; 33ms latency at 30 fps
- 60 Mbps bit rate
- Supports HDCP
UPC: 627699807521 In the Box MuxLab HDMI over IP Decoder with PoE Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI over IP Decoder with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500752-RX Specs | Environment | HDMI 1.3a, Ethernet, IGMP | | Bandwidth | 225 MHz | | Compression | MJPEG | | Bit Rate | 60 Mbps | | Latency | 1 frame; 33 ms latency at 30 fps | | Network Requirements | Point to Point: 100BaseT, Multipoint: 1000BaseT | | IR Frequency | 38 kHz | | Configuration Options | Point-to-point, point-to-multipoint, multipoint-to-multipoint (for multipoint-to-multipoint the gigabit Ethernet switch must support the IGMP communications protocol) | | Connectors | 1x HDMI
1x RJ45S for Cat 5e/6 unshielded or shielded twisted pair via 10/100BaseT
1x 3.5 mm jack for IR emitter/sensor | | DIP Switch | 4-digit/position DIP switch for device ID addressing | | Transmission Distance | Based on a maximum length of 6.6 ft (2 m) of HDMI cable per end:
Cat 5e/6: 328 ft (100 m) up to 1080p (Gigabit Ethernet required for 1080p)
When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. | | HDCP | Yes | | RJ45 Pin Configuration | Reverse polarity sensitive; use EIA/TIA 568A or 586B straight-through wiring:
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T) | | Required Cabling | 1 x Cat 5e/6 or better twisted pair
1 x HDMI | | Power Supply | 110-240 V / 5 VDC power supply (available separately) | | Power Consumption | 2.9 W | | Operating Temperature | 32 to 104°C (0 to 40°C) | | Storage Temperature | -4 to 185°C (-20 to 85°C) | | Humidity | Up to 95%, non-condensing | | Enclosure | Metal | | Compliance | Regulatory: FCC, CE, RoHS; Flammability: 94V0 | | Dimensions | 3.7 x 3.7 x 1" (9.4 x 9.4 x 2.5 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.105 lb | | Box Dimensions (LxWxH) | 8.1 x 6.0 x 2.2" |
