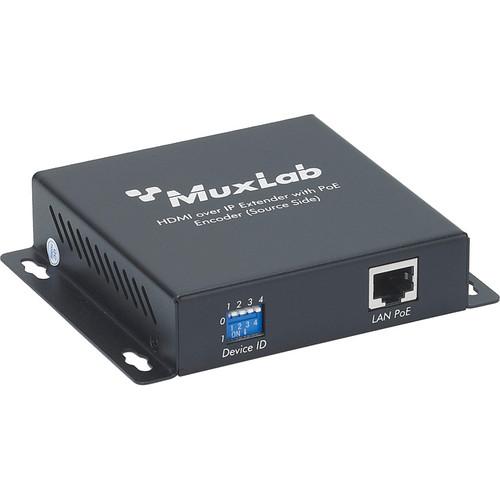

User Manual for MuxLab HDMI over IP Encoder with PoE Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI over IP Encoder with
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab HDMI over IP Encoder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab HDMI over IP Encoder with PoE converts an HDMI signal to Ethernet and extends it for up to 328 ft over a CAT5e/6 twisted pair cable, in resolutions up to 1080p. An IP Decoder with PoE, sold separately, is required on the receiving end.
You can run the encoder directly to a decoder, or you can incorporate an optional LAN switch and output to up to 200 decoders. You can also interconnect up to 16 encoders with 200 decoders. The maximum number of decoders is limited to 200 because of bandwidth limitations. A 4-position dip switch is available on both the encoder and optional decoders for setting device IDs and connecting the units together. If you use a LAN switch with PoE, you won't need to use a power supply with any of your encoder/decoder units.
A control software called HDMI over IP is available for free download on the MuxLab website for controlling multipoint configurations. A 3.5mm jack is available for optional IR control. - Key Features
-
- Transmits 1080p HDMI signal up to 328 ft over a CAT5e/6 twisted pair cable
- Works in multipoint configurations of up to 16 encoders and 200 decoders
- No power supply is required if you incorporate optional LAN switch with PoE
- 4-position dip switch for device ID addressing
- 3.5mm jack for optional IR control
- Includes free-download control software
- 225 MHz bandwidth
- 1 frame latency; 33ms latency at 30 fps
- 60 Mbps bit rate
- Supports HDCP
UPC: 627699907528 In the Box MuxLab HDMI over IP Encoder with PoE Power Supply (North American) 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI over IP Encoder with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500752-TX Specs | Environment | HDMI 1.3a, Ethernet, IGMP | | Bandwidth | 225 MHz | | Compression | MJPEG | | Bit Rate | 60 Mbps | | Latency | 1 frame; 33 ms latency at 30 fps | | Network Requirements | Point to Point: 100BaseT, Multipoint: 1000BaseT | | IR Frequency | 38 KHz | | Configuration Options | Point-to-point, point-to-multipoint, multipoint-to-multipoint (for multipoint-to-multipoint the gigabit Ethernet switch must support the IGMP communications protocol) | | Connectors | 1x HDMI
1x RJ45S for CAT5e/6 unshielded or shielded twisted pair via 10/100BaseT
1x 3.5 mm jack for IR emitter/sensor | | DIP Switch | 4-digit/position DIP switch for device ID addressing | | Transmission Distance | Based on a maximum length of 6.6 ft (2 m) of HDMI cable per end:
CAT5e/6: 328 ft (100 m) up to 1080p (Gigabit Ethernet required for 1080p)
When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. | | HDCP | Yes | | RJ45 Pin Configuration | Reverse polarity sensitive; use EIA/TIA 568A or 586B straight-through wiring:
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T) | | Required Cabling | 1x CAT5e/6 or better twisted pair
1x HDMI | | Power Supply | 110-240 V / 5 VDC power supply with North American blades included | | Power Consumption | 2.9 W | | Operating Temperature | 32 to 104°C (0 to 40°C) | | Storage Temperature | -4 to 185°C (-20 to 85°C) | | Humidity | Up to 95%, non-condensing | | Enclosure | Metal | | Compliance | Regulatory: FCC, CE, RoHS; Flammability: 94V0 | | Dimensions | 3.7 x 3.7 x 1" (9.4 x 9.4 x 2.5 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.09 lb | | Box Dimensions (LxWxH) | 8.2 x 6.05 x 2.2" |
