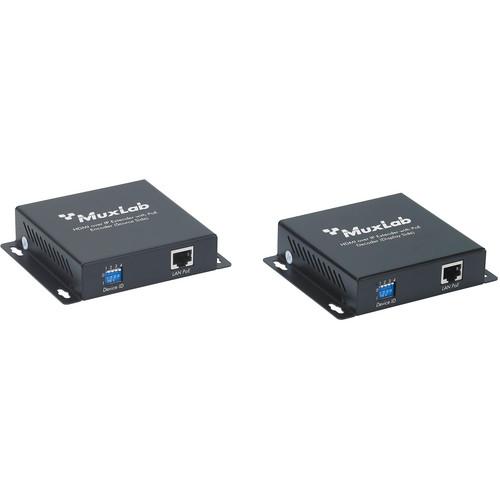

User Manual for MuxLab HDMI Over IP Extender kit with PoE Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI Over IP Extender kit
- Product category: HDMI Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab HDMI Signal Extenders
|
User manual for the MuxLab HDMI Over IP Extender kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The HDMI Over IP Extender with PoE from MuxLab multicasts digital video and audio signals to one or more receivers up to 330' away using CAT5e/6 cable. Each HDMI Over IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI source. The local and remote units can be connected together for a point-to-point connection, or through VLAN isolation on a managed network switch for a multipoint-to-multipoint configuration. However, for the multipoint-to-multipoint configuration the gigabit Ethernet switch must support the IGMP communications protocol. The kit includes both an encoder and decoder. The encoder converts an HDMI bit stream into IP allowing it to be transmitted over an Ethernet LAN. The HDMI decoder converts the IP packets back to the original HDMI bit stream for playback via an HDMI display. - Extends 1080p HDMI signals up to 330'
- Supports up to 16 transmitters and 200 receivers
- Supports multicasting and broadcasting
- IR control, HDCP compliant
- Applications include commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information system
UPC: 627699007525 In the Box MuxLab HDMI Over IP Extender kit with PoE HDMI over IP Encoder (500752-TX) HDMI over IP Decoder (500752-RX) IR Emitter IR Sensor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI Over IP Extender kit with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500752 Specs | Environment | HDMI 1.3a, Ethernet, IGMP | | Devices | DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Transmission | Transparent to the user | | Bandwidth | 225 MHz | | Compression | MJPEG | | Bit Rate | 60 Mbps | | Latency | With one (1) frame at 30 fps, there is 33 msec latency | | Network Requirements | Point to Point: 100BaseT
Multipoint: 1000BaseT | | IR Frequency | 38 KHz | | Configuration | Point-to-Point, Point-to-Multipoint, Multipoint-to-Multipoint*
*For multipoint-to-multipoint configuration the Gigabit Ethernet switch must support the IGMP communications protocol | | Connectors | HDMI receptacle x 1
RJ-45S for Cat 5e/6 unshielded or shielded twisted pair via 10/100BaseT x 1
3.5mm jacks for IR emitter/sensor x 1
DIP switches for device ID addressing x 4 | | DIP Switch | 4-position DIP to set Device ID | | Maximum Distance | Based on a maximum length of 6.6' (2 m) of HDMI cable per end:
Cat5e/6: 330' (100 m) up to 1080p*
*Gigabit Ethernet required for 1080p Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used | | RJ45 Pin Configuration | RJ-45 Link:
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T) | | Cable | One (1) Cat 5e/6 or better twisted pair cables required | | Power Supply | PoE power
Optional 5 V/1.2 A universal power supply sold separately | | Power Consumption | Transmitter: 2.9 W
Receiver: 1.8 W | | Temperature | Operating: 32-104°F (0-40°C)
Storage: -4-185°F (-20-85°C) | | Humidity | Up to 95% non-condensing | | Enclosure | Metal | | Compliance | Regulatory: FCC, CE, RoHS Flammability: 94V0 | | Dimensions | 3.7 x 3.68" x 0.97" (94 x 93.5 x 24.6 mm) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 12.5 x 7.6 x 4.6" |
