User Manual for MuxLab HDMI over IP H.264 H.265 PoE Receiver Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI over IP H.264 H.265
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
 |
User manual for the MuxLab HDMI over IP H.264 H.265 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

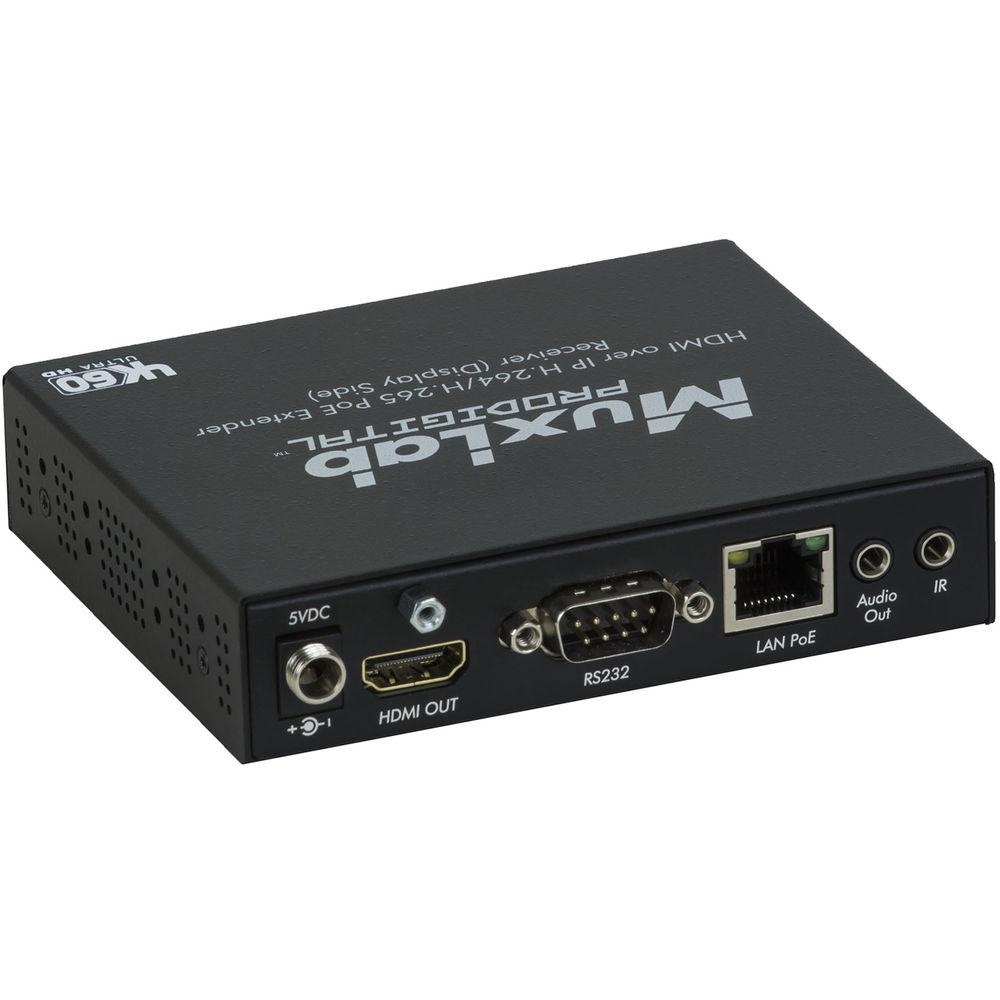

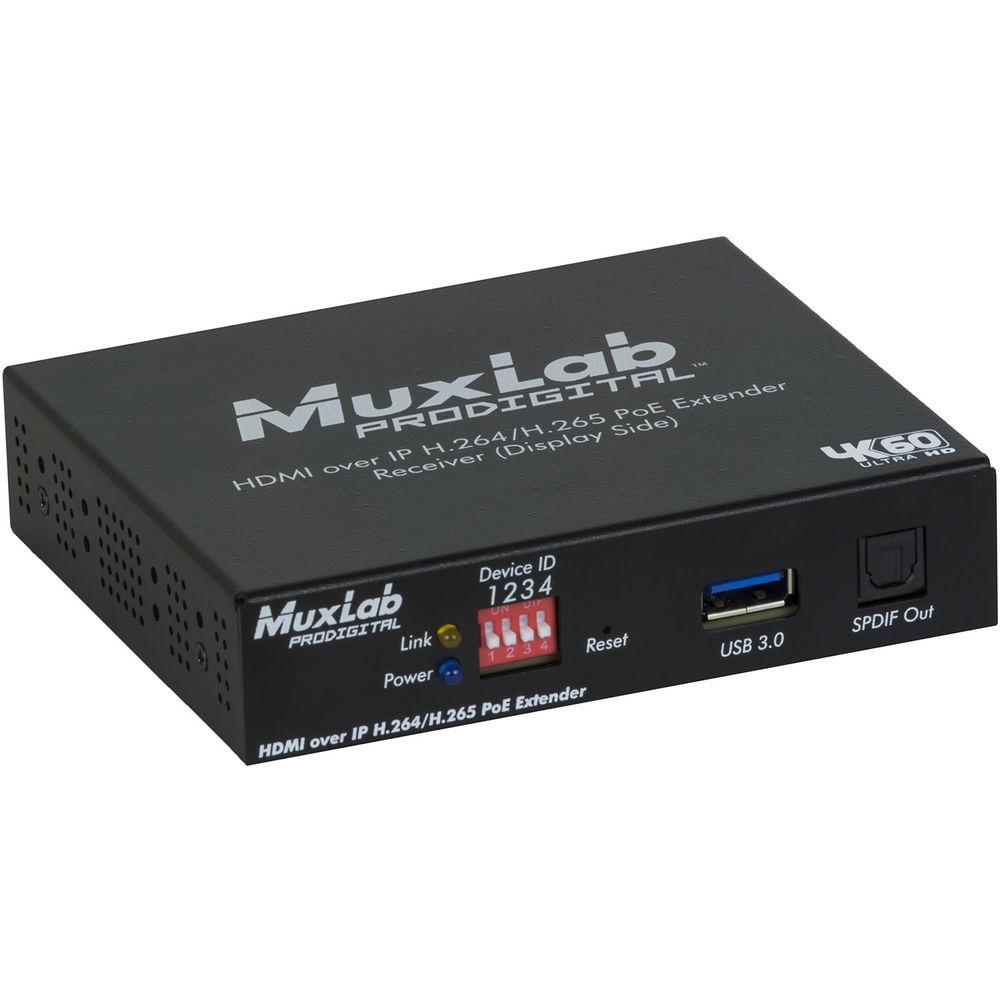

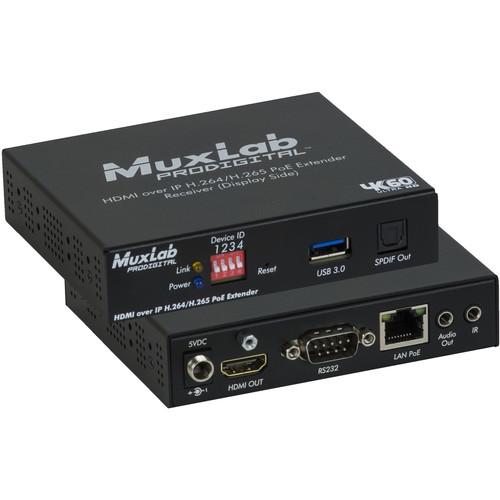

Product description Provided by third party: The HDMI over IP H.264/H.265 PoE Extender Transmitter and Receiver combination allows HDMI source and display equipment to be extended locally up to 330 ft (100 m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over Wi-Fi, and over the Internet for distributed installations spread-out throughout the globe. The transmitter accepts a 1080p @ 60Hz video and streams the content to the Receiver, where the signal is up-scaled up to 4K @ 60 Hz to be displayed on a 4K monitor. The Receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60 Hz, and supports a USB 3.0 Type A connector for storing and playback of local content from an external USB drive. These devices support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.
- Key Features
-
- Receiver supports up to 4K @ 60 Hz (4:4:4) video streams
- Receiver up-scales 1080p @ 60 Hz video streams from Transmitter and other devices up to 4K @ 60 Hz
- Transmitter supports up to 1080p @ 60 Hz video
- Extends local audio/video transmission up to 330 ft (100 m) over Cat5e/6
- H. 264/265 video codec, excellent for LAN, Wi-Fi & Internet transmission
- High image quality and 100 ms latency depending on protocol
- Supports 100's of Transmitters & Receivers depending on network bandwidth
- Supports Multicast (LAN), and RTSP/RTMP/HLS (LAN & Internet)

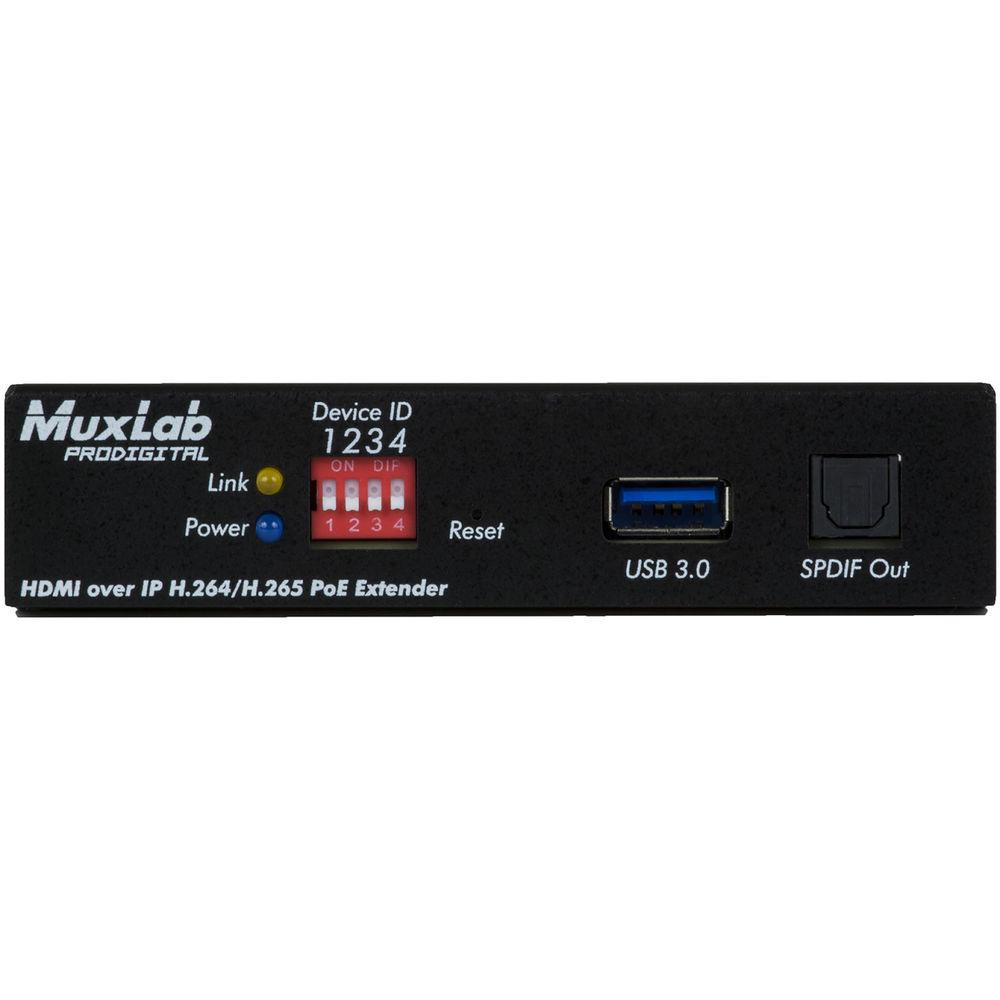

- USB 3.0 port for storing and playback of local content from an external USB drive (RX)
- Supports SPDIF (TosLink) Audio Out (RX)
- 2CH audio insert (TX), and 2CH audio extract (RX)
- RS232 and Directional IR for remote control of end-devices
- PoE powered, via PoE (PSE) Ethernet Switch
- Managed remotely via Pro Digital Network Controller (500811)
Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI over IP H.264 H.265 PoE Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

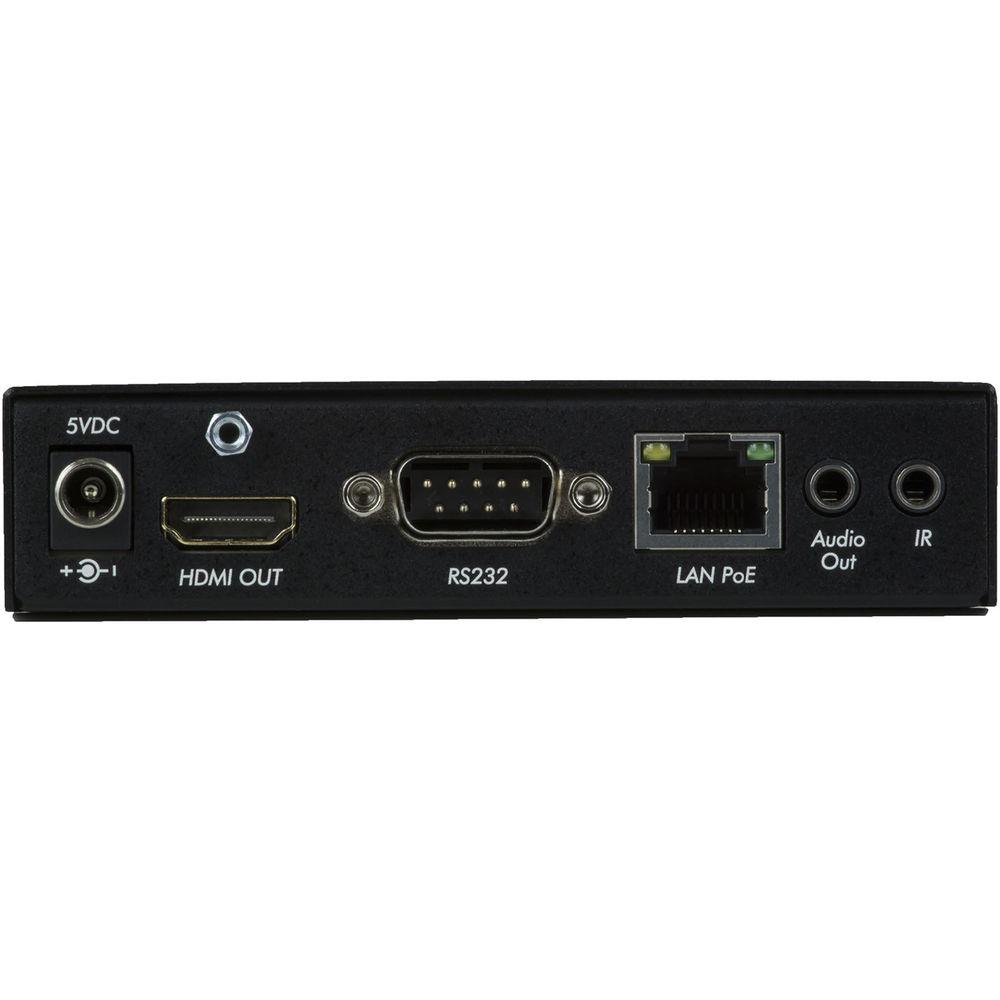

Technical parametersMuxLab 500762-RX Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI | | Max Resolution | 2160p @ 60 Hz | | Max Video Bandwidth | 225 MHz | | Max Transfer Distance | 328 ft | | Features | 4K resolution support | | | | Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A
1 x IrDA - mini jack
1 x RS-232 - DB-9
1 x network - RJ-45
1 x audio (output) - mini jack | | | | Power Over Ethernet (PoE) | PoE | | Power Device | External power adapter | | | | Width | 4.4 in | | Depth | 3.6 in | | Height | 1 in | | Weight | 14.11 oz | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
