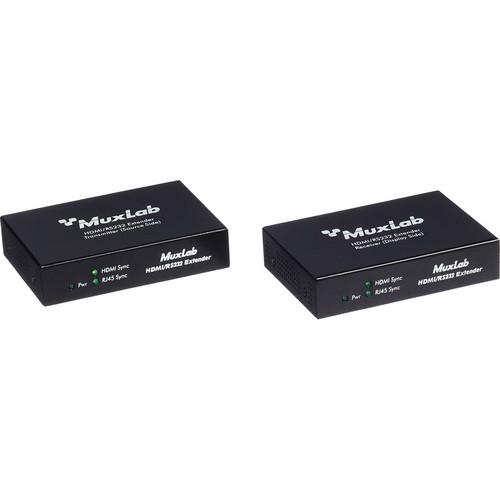

Product description The HDMI/RS232 Extender Kit with PoE from MuxLab enables the long-distance transmission of HDMI signals over a single Cat5e/6 or higher cable. It supports all digital audio including 7.1-channel surround, Dolby TrueHD, and DTS-HD. With a range of up to 230' for resolutions up to 1080p, use this for digital signage, projection systems, A/V systems, or any other application where the source is far from the display. There is an included IR emitter and sensor for controlling the source, such as a DVR or cable box, from the display location. The transmitter powers the receiver using the same Cat5e/6 cable, via Power-over-Ethernet (PoE), eliminating the need for a second power supply, and reducing the cabling required. - Recommended Uses
-
- For devices such as DVD players, HD televisions, projectors, monitors, and servers
- Commercial applications including digital signage, surveillance system public monitor, A/V systems
- Education/Business applications such as A/V systems, projector systems, collaborative PC systems
- HD Video/Audio Transmission
-
- Transmits HDMI 1.3a, HDBaseT signals, and 7.1-ch, Dolby TrueHD, DTS-HD digital audio
- Transmit up to 1080p HDMI signal, with digital audio, over a Cat5e/6 or higher cable
- Up to 230' maximum for 1080p
- VGA connector for remote computer monitor
- Power-over-Ethernet: Transmitter powers receiver to reduce cabling
- IR Remote Support
-
- Supports bi-directional IR remote source control
- Includes IR emitter and sensor
UPC: 627699014547 In the Box MuxLab HDMI/RS232 Extender Kit with PoE IR Sensor IR Emitter Receiver Unit Transmitter Unit 110-240VAC/5 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI RS232 Extender Kit with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500471-SA Specs | Bandwidth | 340 MHz | | Signal | HDMI 1.3a, HDBaseTDigital audio: 7.1-ch, Dolby TrueHD, DTS-HD | | Connectors | 1 x HDMI port1 x RJ45S port, for link1 x DB9, for RS-2322 x 3.5 mm jacks, for IR emitter and IR Sensor | | Range | Up to 230' (70 m) for 1080p on Cat5e/6 cable | | Power | Power-over-Ethernet (PoE) StandardConsumption: Transmitter: 1.6W, Receiver: 3.2W | | Environmental | Operating: 0º to 55º CHumidity: up to 95% non-condensing | | Compliance | Regulatory: FCC, CE, RoHSFlammability: 94V0 | | Dimensions | 4.4" x 3.0" x 1.0" (11.2 x 7.6 x 2.5 cm), per unit | | Weight | 22.4 oz (635 g), per unit | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 8.3 x 5.9 x 3.0" |
