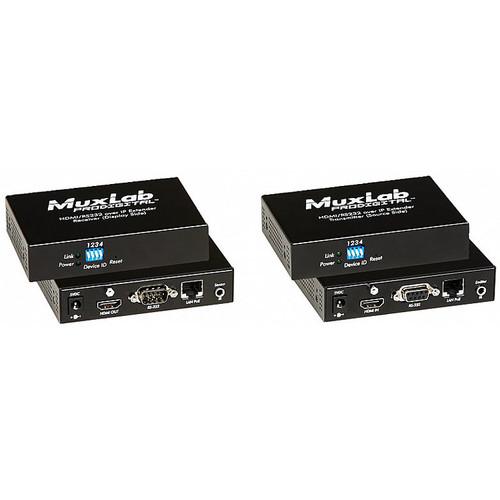

Product description The HDMI/RS232 over IP Extender Kit with PoE from MuxLab consists of a transmitter unit and a receiver unit. This extender enables long-distance transmission of HDMI signals over a single Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint are possible by connecting several encoders and decoders to the same Ethernet network. With a range of up to 330' for resolutions up to 1080p, you can use this for digital signage, projection systems, A/V systems, or any other application where the source is far from the display. There is an included IR emitter and sensor for controlling the source, such as a DVR or cable box, from the display location. - Recommended Uses
- For devices such as DVD players, HD televisions, projectors, monitors, and servers
Commercial applications including digital signage, surveillance system public monitor, A/V systems
Education/Business applications such as A/V systems, projector systems, collaborative PC systems - Video/Audio Transmission
- Transmits HDMI 1.3a, BaseT signals
Transmit up to 1080p HDMI signal, with digital audio, over a Cat 5e/6 or higher cable
Up to 330' maximum for 1080p
Compatible VGA over IP with RS232 - IR Remote Support
- Supports bidirectional IR remote source control
Includes IR emitter and sensor UPC: 627699007532 In the Box MuxLab HDMI/RS232 over IP Extender Kit with PoE IR Sensor IR Emitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI RS232 over IP Extender Kit with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500753 Specs | Bandwidth | 225 MHz, 60 Mb/s | | Signal | HDMI 1.3a | | Connectors | Transmitter Unit: 1 x HDMI video input
1 x RJ45S, port
1 x 9-pin Sub-D, RS232 serial port
1 x 3.5 mm phone jack, IR emitter and sensor
1 x 4-position DIP switch, device ID addressing
Receiver Unit:
1 x HDMI, video output
1 x RJ45S, port
1 x 9-pin Sub-D, RS232 serial port
1 x 3.5 mm phone jack, IR emitter and sensor
4 x DIP switches for device ID addressing | | Range | Up to 330' (100 m) for 1080p on Cat 5e/6 cable | | Network Requirements | 100BaseT for Point to Point
1000BaseT for other configuration | | IR Frequency | 38 kHz | | PoE | IEEE 802.3af | | Power Consumption | Transmitter: 2.9 W
Receiver: 1.8 W | | Power Supplies | 2 x 110-240 V, 5 VDC power supplies with interchangeable blades (available separately) | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 185°F / -20 to 85°C
Humidity: Up to 95% non-condensing | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 4.4 x 3.0 x 1.0" / 11.2 x 7.6 x 2.5 cm, per unit | | Weight | 1.1 lb / 499 g, per unit | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 9.213 x 7.165 x 6.378" |
