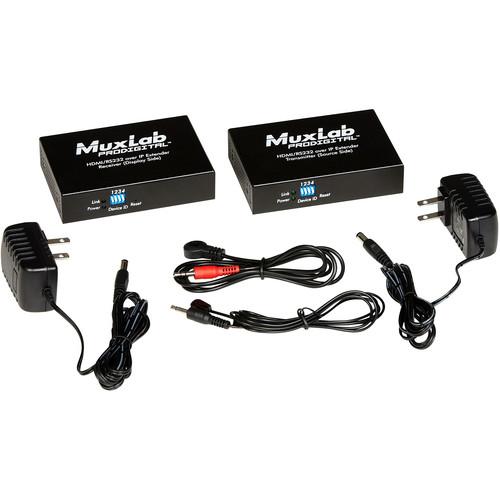

Product description The HDMI/RS232 over IP Receiver with PoE from MuxLab is a receiver unit. When paired with its matching transmitter unit, it enables long-distance transmission of HDMI signals over a single Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint is possible by connecting several encoders and decoders to the same Ethernet network. With a range of up to 330' for resolutions up to 1080p, you can use this for digital signage, projection systems, A/V systems, or any other application where the source is far from the display. There is an included IR sensor for controlling the source, such as a DVR or cable box, from the display location. - Recommended Uses
- For devices such as DVD players, HD televisions, projectors, monitors, and servers
Commercial applications including digital signage, surveillance system public monitor, A/V systems
Education/Business applications such as A/V systems, projector systems, collaborative PC systems - Video/Audio Transmission
- Transmits HDMI 1.3a, BaseT signals
Transmit up to 1080p HDMI signal, with digital audio, over a Cat 5e/6 or higher cable
Up to 330' maximum for 1080p
Compatible VGA over IP with RS232 - IR Remote Support
- Supports bi-directional IR remote source control
Includes IR sensor UPC: 627699807538 In the Box MuxLab HDMI/RS232 over IP Receiver with PoE IR Sensor 110-240VAC/5 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI RS232 over IP Receiver with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500753-RX Specs | Bandwidth | 225 MHz, 60 Mb/s | | Signal | HDMI 1.3a | | Connectors | 1 x HDMI video output
1 x RJ45S, port
1 x 9-pin Sub-D, RS232 serial port
1 x 3.5 mm phone jack, IR sensor
1 x 4-position DIP switch, device ID addressing | | Range | Up to 330' (100 m) for 1080p on Cat5e/6 cable | | Network Requirements | 100BaseT for point-to-point
1000BaseT for other configurations | | IR Frequency | 38 kHz | | PoE | IEEE 802.3af | | Power Consumption | 1.8 W | | Power Supply | 110 - 240 V, 5 VDC power supplies with interchangeable blades | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: up to 95% non-condensing | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 4.4 x 3.0 x 1.0" (11.2 x 7.6 x 2.5 cm) | | Weight | 1.1 lb (499 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.11 x 6.063 x 2.126" |
