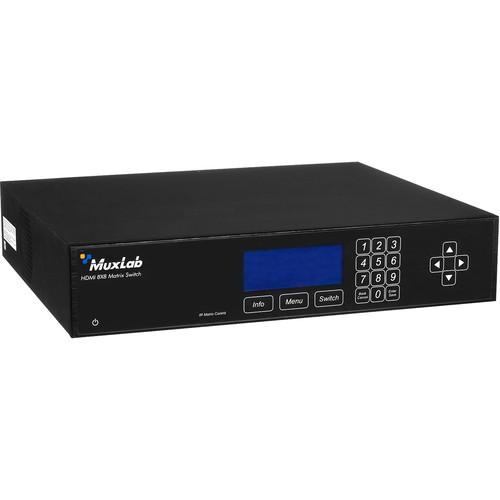

Product description The HDMI to HDBT/PoE 8 x 8 Matrix Switch from MuxLab allows eight HDMI sources to be switched and distributed to up to eight remote displays via unshielded twisted pair (UTP) or shielded twisted pair (STP) cables for cost-efficient connectivity. Remote displays can be connected up to 230' (70 m) @ 1080p Deep Color via Cat 5e/6 UTP/STP cables. The Matrix Switch works in conjunction with MuxLab's HDMI Receiver 500451-RX, 500454-RX, and 500454-POE-RX. - Single modular RJ45 jacks
- UTP/STP extension for 1080p Deep Color up to 230' (70 m) via Cat 5e/6 UTP/STP cables
- Seamless integration with HDMI Receiver 500451-RX, 500454-RX, and 500454-POE-RX
- HDMI input supported with resolution up to 1080p
- Configurable EDID settings
- RS232 and USB CDC control
- Firmware is field upgradable
- Touch pad on front panel for manual control
- Device control over HTTP protocol
UPC: 627699014691 In the Box MuxLab HDMI to HDBT/PoE 8 x 8 Matrix Switch IR Sensor 8 x IR Emitters Remote USB Cable RS232 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI to HDBT PoE 8 x 8 Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500469-POE-US Specs | Environment | HDMI 1.4A 3D Support | | Devices | LCD and Plasma TVs, DVD and Blu-Ray players, monitors, projectors, PCs, laptops, home theatre systems, home theater PCs, and game consoles | | Transmission | Transparent to the user | | Connectors | Input:
8 x HDMI, video
8 x 3.5 mm stereo phone jack, IR Sensor
Output:
8 x RJ45, HDBaseT
8 x 3.5 mm stereo phone jack, IR emitter | | Controls | 1 x RJ45, Ethernet LAN
1 x USB Type B, port
1 x 9-pin Sub-D, RS232 | | Indicators | LED blue, Diagnostics Power
LED green, LAN Link
LED yellow, activity | | Maximum Distance | UTP/STP Cat 5e/6 output port: 230' (70 m) | | Cables | Cat 5e/6 UTP/STP cables (or better) | | Power | 100 - 240 VAC 50/60Hz, 0.72 A | | Switching Time | Matrix Switching Time: 3 seconds (maximum) | | LED Diagnostics | Power (Blue)
LAN Link (Green)
Activity (Yellow) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Compliance | Regulatory: FCC, CE, RoHS, WEEE | | Dimensions | 19.0 x 13.6 x 3.5" (48.3 x 34.5 x 8.9 cm) | | Weight | 17.0 lb (7.7 kg) |
