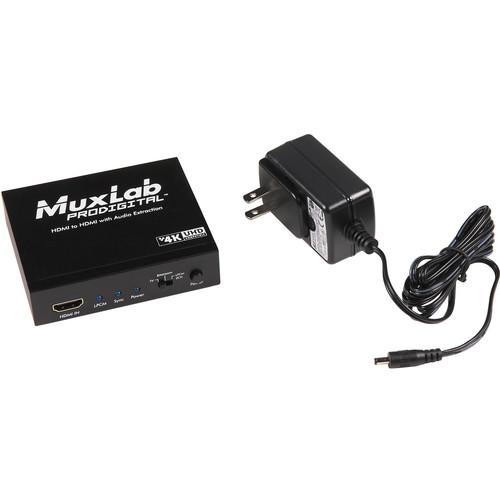

Product description The HDMI to HDMI UHD-4K with Audio Extraction from MuxLab allows you to extract the audio signal from an HDMI input while outputting the video input to one HDMI display. The switcher supports up to 4K (3840 x 2160), 8-bit color and HD audio. The extracted audio is available on an S/PDIF Toslink and 3.5mm stereo phone jack. This unit is HDCP 1.3 compliant and features LED diagnostics indicators. - Supports up to 4K (3840 x 2160), 8-bit color and HD audio
- Suitable for commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems
UPC: 627699004319 In the Box MuxLab HDMI to HDMI UHD-4K with Audio Extraction Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI to HDMI UHD-4K with Audio Extraction in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500431 Specs | Environment | HDMI 1.4 (3D) | | Devices | DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, and laptops | | Transmission | Transparent to the user | | Frequency | 25 to 340 MHz | | Signals | HDMI 1.4 protocol | | Connectors | 1 x HDMI Type A 19-pin female
1 x Toslink
1 x 3.5mm stereo phone jack | | Indicators | LED blue, power
LED blue, LPCM
LED blue, sync | | Power Control | Push button on the front of the unit | | Resolution | 480i to 1080p @ 50/60 fps
1080p @ 24/50/60 fps
3840 X 2160 @ 24/25/30 fps
VGA to UXGA | | Color | 8-bit 10-bit, and 12-bit | | Audio Format | HDMI Output: LPCM, Dolby Digital, DTS, Dolby Digital Plus, Dolby True-HD, DTS-HD Master Audio
Optical Output: LPCM, Dolby Digital, DTS
Stereo Output: Analog Stereo | | Sampling Rate | HDMI Output: 192 KHz Optical Output: 192 KHz Stereo Output: 48 KHz | | HDCP | Revision 1.3 | | Cable | HDMI Cable | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | up to 90% non-condensing | | Power Supply | 5 VDC, 2A with interchangeable blade for US, UK, and Euro | | Compliance | Regulatory: FCC, CE, RoHS | | Enclosure | Metal enclosure | | Dimensions | 3.74 x 3.27 x 0.91" (9.50 x 8.31 x 2.31 cm) | | Weight | 1 lb (0.45 Kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.2 x 6.9 x 2.2" |
