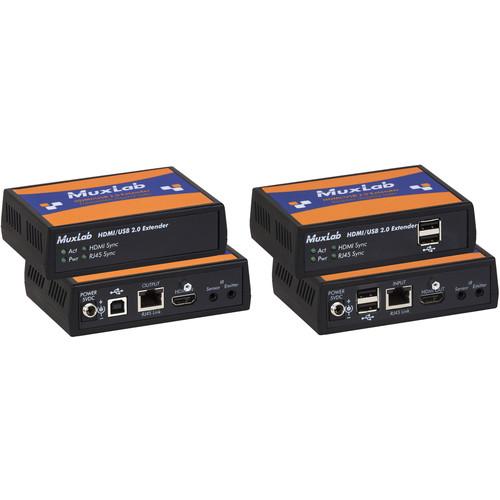

Product description The HDMI/USB 2.0 Extender Kit from MuxLab allows one HDMI 1.4 and one USB 2.0 channel to be transmitted up to 330 ft over a single Cat5e/6 cable. It supports resolutions up to 1920 x 1200 at 60 Hz. The receiver unit includes a four-port USB 2.0 hub, supporting KVM applications. Key Features - Supports HDMI 4K at 30 fps (4:4:4) and at 60 fps (4:2:0)
- Uncompressed signal transmission
- USB 2.0 (250 Mb/s maximum)
- Receiver side includes a four-port USB hub, supporting KVM applications
- Up to 330' (100m) over Cat5e/6 at 4K30
- Supports bi-directional IR transmission
KVM Applications - Commercial and residential AV systems
- Classroom projector systems
- Medical information systems
UPC: 627699004579 In the Box MuxLab HDMI/USB 2.0 Extender Kit Transmitter Unit Receiver Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI USB 2.0 Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500457 Specs | Environment | KVM, HDMI 1.4, and USB 2.0 | | Devices | KVM, Monitors, TV, PC, laptops, mouse, keyboard | | Transmission | Transparent to the user | | Bandwidth | 340 MHz | | Signals | HDMI 1.4 protocol and USB 2.0 | | USB | 1 x Input on transmitter
4 x Output on receiver
Bandwidth Available: Up to 250 Mb/s | | Connectors | 1 x HDMI receptacle
1 x RJ45 for Cat5e/6 unshielded or shielded twisted pair
1 x Standard USB connector, type B (transmitter)
4 x Standard USB connector, type A (receiver) | | Maximum Distance | Cat5e/6:
330' (100 m) for up to 1920 x 1200 resolution, up to 60 Hz
330' (100 m) for UHD 4K (3840 x 2160), up to 30 Hz
Note: A Cat5e/6 cable with minimum length of 12' (4m) is required. When installed in an electrically noisy environment, an STP cable must be used. | | Cable | 1 x Cat5e/6 or better twisted pair cable required (not included) | | Power Supply | Two 110 to 240 V, 5 VDC power supplies with interchangeable blades | | Power Consumption | Transmitter: 3 W
Receiver: 7 W + USB power | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95%, non-condensing | | Enclosure | Aluminum casting with plastic side panel | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 4.5 x 3.0 x 1.3" (11.4 x 7.6 x 3.2 cm) each unit | | Weight | 2.6 lb (1.2 kg) each unit | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 8.4 x 7.0 x 3.2" |
