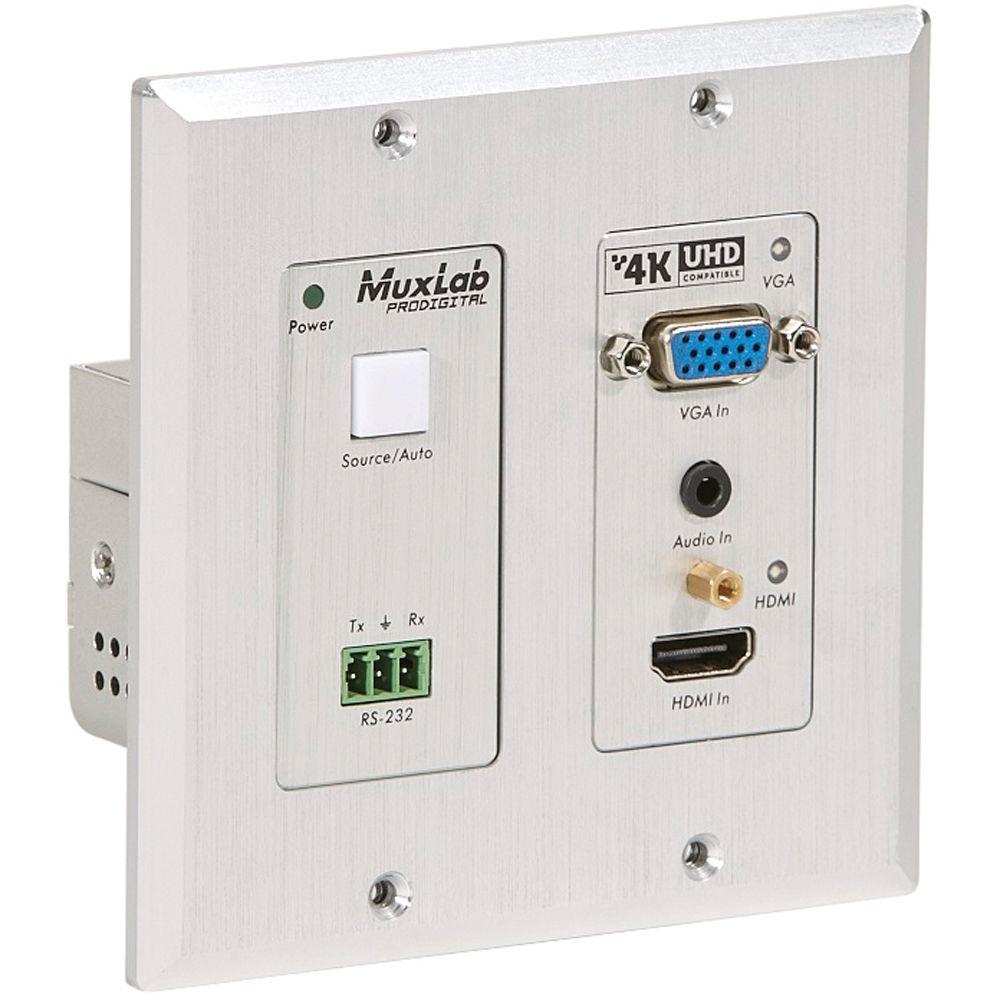

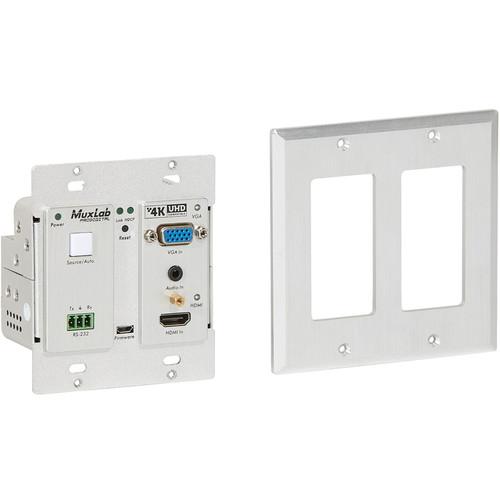

Product description The HDMI VGA/Audio over CAT5e/6 UHD-4K Wall-Plate Transmitter from MuxLab is a Decora style transmitter wall-plate that installs in a double-gang wall box to provide a convenient interface for HDMI / VGA input sources. It has one HDMI input, one VGA input, one Audio input, and one HDBaseT output. It supports VGA with full HD scaler, and HDMI 1.4 with 4k & 3D, input signals support auto-switching and manual-switching.
The HDBaseT output supports 60m UHD video transmission, enables bi-directional RS232 communication between HDMI - VGA/Audio Wall-Plate Transmitter and remote device. The unit is powered by a 12 VDC Power Supply. - Selectable HDMI/ VGA with audio input
- Support of VGA output resolution up to 1920 x 1200
- High bandwidth: 10.2 Gbps
- Built-in scaler function supports scaling HDMI/ VGA signals to match the native resolution of the display
- Transmission of HDMI signals up to 4K
- Compliant with HDMI 1.4, supports 1080p and 3D
- HDCP compliance, equipped with HDCP auto-tracking solution
- Auto-switching capability
- Support of multiple control methods including front panel buttons and RS232. Serial interface supports bi-directional RS232 pass-through control
- Supports firmware upgrading via USB
- Powered by local 12 VDC power supply
- Aluminum design for better cooling
UPC: 627699904558 In the Box MuxLab HDMI VGA/Audio over CAT5e/6 UHD-4K Wall-Plate Transmitter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI VGA Audio over CAT5e 6 UHD-4K Wall-Plate Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500455-TX Specs | Video Bandwidth | 10.2 Gbps | | Video Resolution | VGA: 800 x600, 1024 x 768, 1280 x 800, 1280 x 1024, 1440 x 900, 1600 x 1200, 1920 x 1080, 1920 x 1200
HDMI: 4K @ 24, 25 & 30 Hz, 3D 1080p/1080i/720p/576p/ 576i/480p/480i | | Audio Bandwidth | 20 Hz to 20 kHz | | Audio Impedance | >10 ohms | | SNR | Audio: 85 dB @ 20 Hz to 20 kHz | | Signals | HDMI 1.3a protocol and HDCP | | Connectors | 1 x HDMI
1 x 15-pin Sub-D, VGA
1 x 3.5 mm stereo phone jack, audio

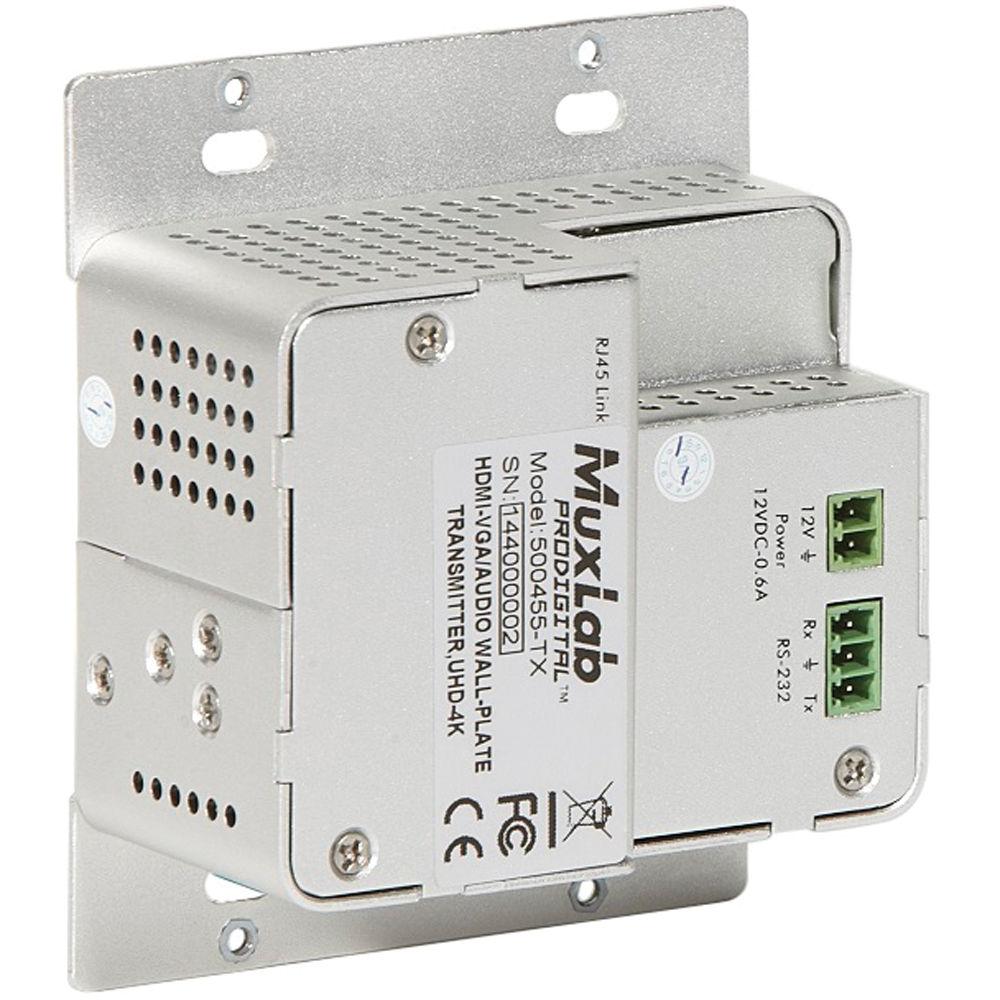

2 x 3-pin terminal block, RS232
1 x 2-pin terminal block, Power
1 x RJ45S, CAT5e/6 | | Maximum Distance | CAT5e/6: 230' (70 m) up to 1080p Deep Color
131' (40 m) for 4K; 3840 X 2160/24, 25, & 30 Hz | | Compatible Receivers | 500451-RX (No Serial Port)
500454-RX | | Power Supply | 1 x 110 - 240 VAC, 12 VDC power supply with interchangeable blades | | Power Consumption | 10.3 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Compliance | Regulatory: FCC, CE, RoHS | | Enclosure | Metal | | Chassis Style | Decora two gang | | Dimensions | 4.11 x 3.50 x 1.73" (10.44 x 8.89 x 4.39 cm) | | Weight | 1.35 lb (0.61 kg) | | | | Package Weight | 1.39 lb | | Box Dimensions (LxWxH) | 7.3 x 5.35 x 4.45" |
