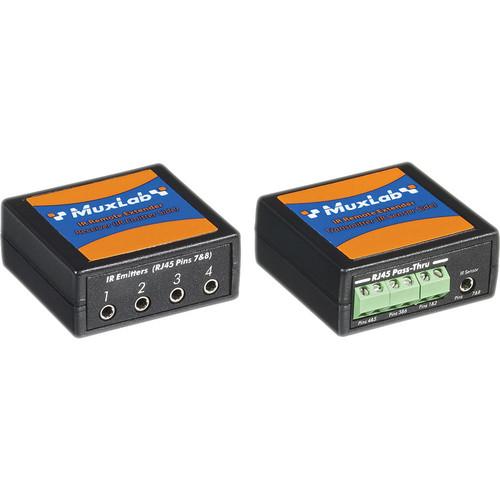

User Manual for MuxLab IR Remote Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab IR Remote Extender Kit
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab IR Remote Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab IR Remote Extender Kit is used to transmit control signals via remote IR between a display and up to 4 audio-video sources. Using Cat5e/6 cable, the kit lets you control the source which is kept up to 2200’ (670.56m) away. It includes 3 pairs of screw terminal block which allow you to utilize the 3 unused twisted pairs to be accessed for low voltage services such as balanced video, audio, or data. The remote extender kit can be used in residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems, commercial display on/off control, etc. - Used to transmit control signals via remote IR between an display and up to 4 audio-video sources
- Extends control distance up to 2200' (670.56m)
- Includes 3 pairs of screw terminal block - allows you to utilize the 3 unused twisted pairs, to be accessed for low voltage services such as balanced video, audio, or data
- Used in residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative pc systems, medical information systems, commercial display on/off control, etc
UPC: 627699006009 In the Box MuxLab IR Remote Extender Kit 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab IR Remote Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500600 Specs | Environment | Infra-red (IR) control | | Devices | TV Sets, STB, DVD, DVR, PVR, and satellite receivers | | Transmission | Transparent to the user | | IR Data Format Supported | NEC code, RC5 code, RC6 code, Grundig code, RCA Code, Zenith code and Sony 12-bit code | | Carrier Frequency | 38 kHz | | IR Wavelength | 940nm | | Connector | Transmitter:
1 3.5mm stereo jack for IR sensor, 1 RJ45S for Cat 5e/6 unshielded or shielded twisted pair, 3 screw-type terminal blocks for RJ45 pass-thru, 1 PSU connector
RX:
4 3.5mm stereo jacks for IR Emitter, 1 RJ45S for Cat 5e/6 unshielded or shielded twisted pair, 3 screw-type terminal blocks for RJ45 pass-thru | | Maximum Distance IR | 2200' (670m) | | RJ45 Pin Configuration | IR remote: pin 7 (R) pin 8 (T)
Pass-thru: pin 1 (R) pin 2 (T)
Pass-thru: pin 3 (R) pin 6 (T)
Pass-thru: pin 4 (R) pin 5 (T) | | Cable | Cat 5e/6 | | Power Supply | 110-240V / 12VDC - 500mA power supply with interchangeable blades | | Power Consumption | Transmitter: 1.8W | | Temperature | Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C)
Humidity: Up to 95% non-condensing | | Enclosure | Fire retardant plastic | | Dimensions | Transmitter: 2.40 x 2.25 x 1.00" (6.1 x 5.7 x 2.5 cm)
Receiver: 2.40 x 2.25 x 1.00" (6.1 x 5.7 x 2.5 cm) | | Weight | 1.3lb (0.6 kg) | | Mounting | Hook and loop pads | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.8 x 5.6 x 2.7" |
