User Manual for MuxLab LongReach CCTV IP PoE Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab LongReach CCTV IP PoE Extender
- Product category: Ethernet Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Ethernet Extenders
 |
User manual for the MuxLab LongReach CCTV IP PoE Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

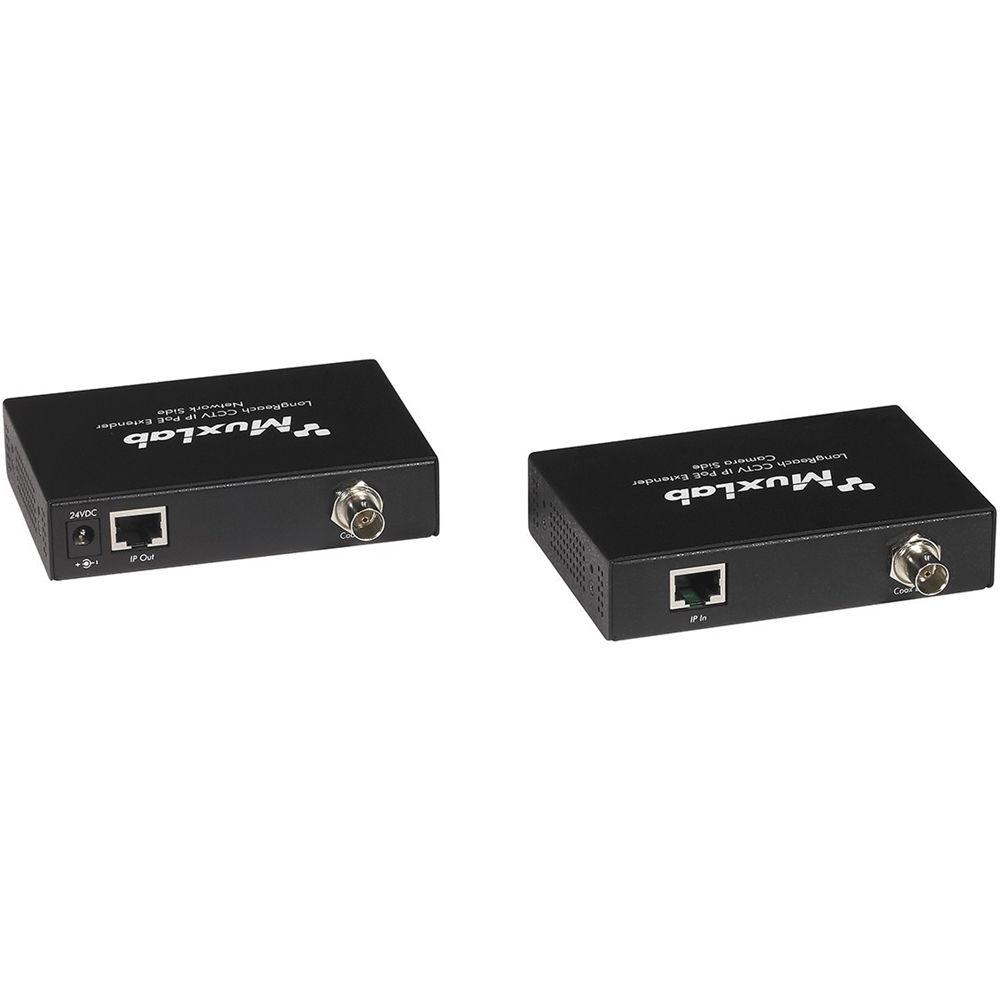

Product description The LongReach CCTV IP PoE Extender Kit from MuxLab allows you to connect a single IP PoE camera via a coax cable in a point-to-point configuration. It supports signal transmission for a distance of up to 3281' at 100 Mbps. On a LAN connection, the maximum transmission distance supported is 330'. - Features
-
- Supports one IP PoE camera (15.4W) via one coax cable
- Supports transmission distance of up to 3281' via coax at 100 Mbps
- Supports transmission distance of up to 330' on LAN connection
- LED indicators for power, IP traffic, and 100 Mbps connection
- Includes wall-mounting brackets
- Applications
-
- Campus
- Highways
- Airports
- Hotels
- Casinos
- Commercial complex
In the Box MuxLab LongReach CCTV IP PoE Extender Kit (1km) Wall-Mount Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab LongReach CCTV IP PoE Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500114 Specs | For Use with | PoE CCTV IP cameras with a 10/100Mb/s Ethernet port, using up to 15.4 W power | | Transmission | Transparent to the user | | Supported Standards | Ethernet Side:
IEEE 802.3 10BaseT
IEEE 802.3U 100Base-TX

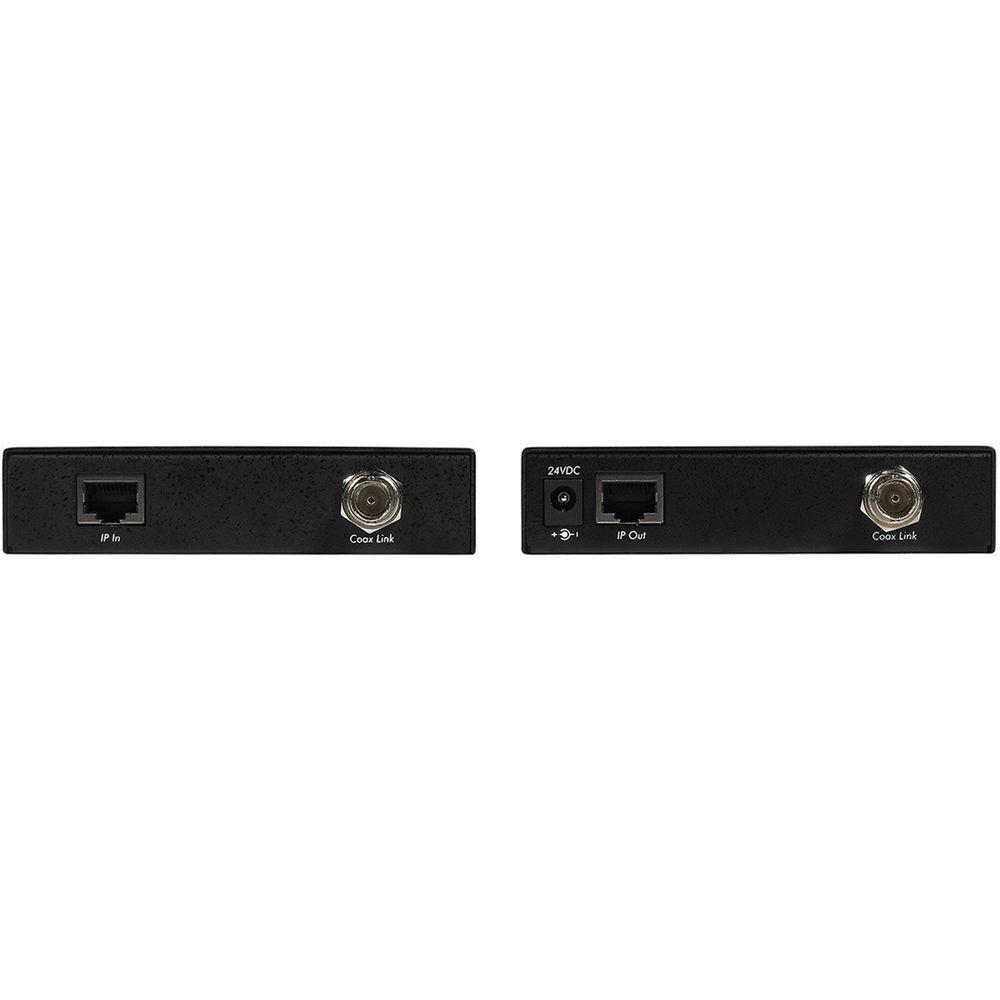

IEEE 802.3af compatible PoE (on camera side only) | | PoE Power | Class 3 | | Connectors | 1 x BNC 75 ohms
1 x RJ45S for cat 5e/6 unshielded or shielded twisted-pair | | LED Indicators | Power, IP traffic, 100 Mbps | | Throughput | Unidirectional Mode: 100 Mbps downstream and 1 Mbps upstream
Bidirectional Mode: 60 Mbps downstream and upstream | | Maximum Distance | RG59/RG6: Up to 3281' (1000 m) @ 100 Mbps
UTP Cat 5e/6: Up to 330' (100 m) When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance, depending on the grade of twisted cable used. | | RJ45 Pin Configuration | Pin-1, -3, -4, and -7 for reception
Pin-2, -6, -5, and -8 for transmission Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straight-through wiring. | | Cable Requirements | UTP/STP: 1 x Cat 5e/6 or better twisted-pair cable
RG59/RG6: 75 ohms (avoid CCS cable) | | Power Supply | 110 to 240 VAC; 24 VDC; 2.7 A | | Power Consumption | Network Side: 1.82 W
Camera Side: 1.73 W | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Enclosure | Metal | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 4.37 x 2.95 x 0.99" (11.09 x 7.49 x 2.52 cm) | | Weight | 2.0 lb (0.9 kg) |
