User Manual for MuxLab LongReach CCTV IP PoE Extender Kit for 15.4W Camera Click to enlarge the picture
Contents of the user manual for the MuxLab LongReach CCTV IP PoE Extender
- Product category: Power over Ethernet (PoE) MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Power over Ethernet (PoE)
 |
User manual for the MuxLab LongReach CCTV IP PoE Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

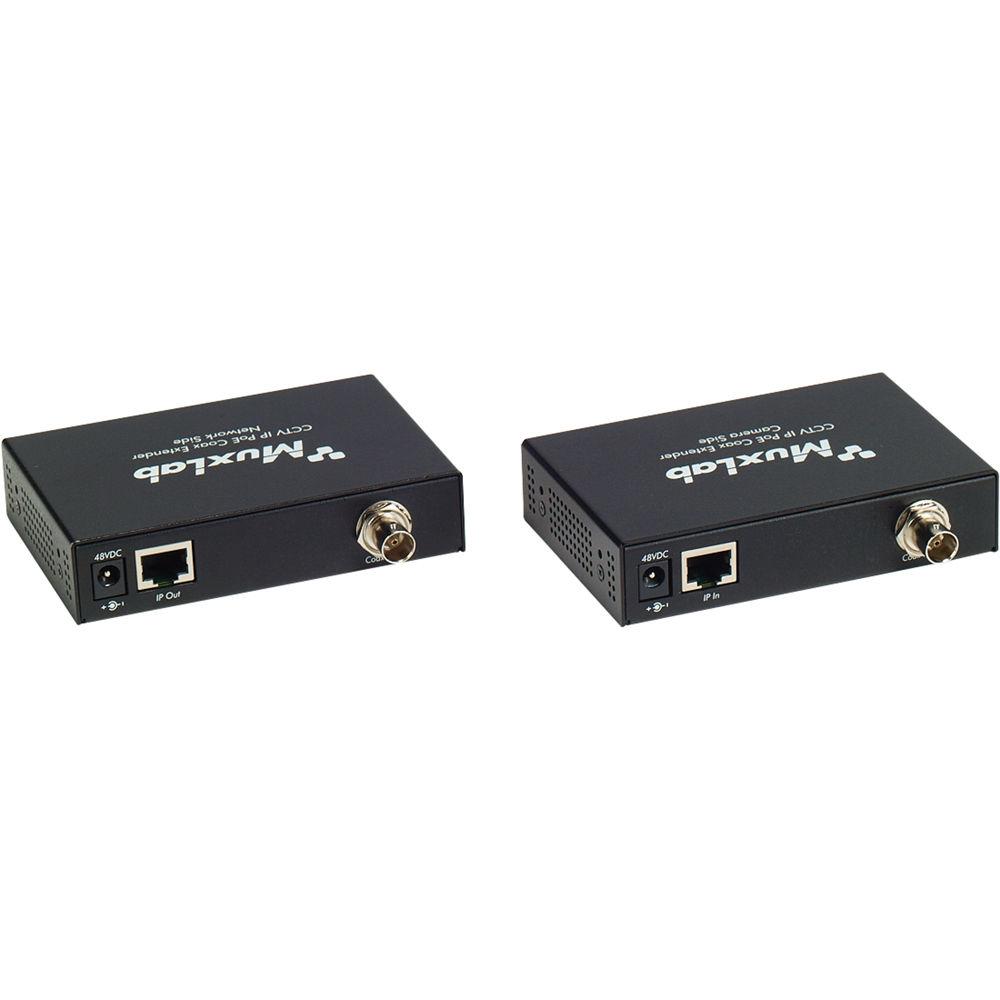

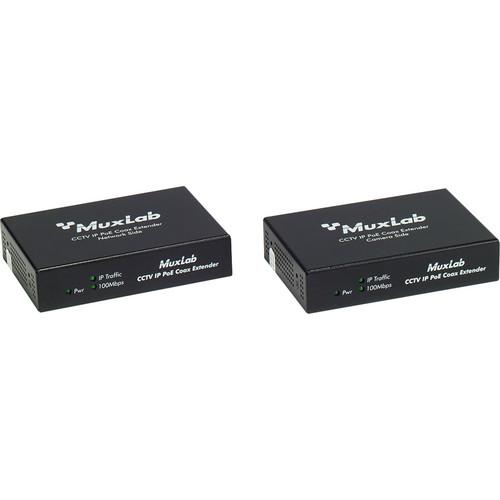

Product description The LongReach CCTV IP PoE Extender Kit from Muxlab allows one CCTV PoE IP camera with up to 15.4W power consumption to be connected up to 980’ via a single 75Ω coaxial cable in a point-to-point configuration to a PoE LAN switch. This kit consists of two extender units, one to be connected to the camera while the other to be connected to the LAN switch. Note: If the LAN switch is not PoE, then the 500113 48 VDC Power Supply is required to power the PoE camera and the Extender Kit. The maximum distance depends on the grade of the coax cable and camera power consumption. - Supports one IP PoE camera via one coax cable
- Supports a single CCTV IP PoE camera with up to 15.4W power consumption
- Up to 980' via coax @ 100Mb/s (15.4W)
- Up to 330' on LAN connection
- LED indicators for power, IP traffic, and 100Mb/s
- Separately sold 48 VDC power supply (500113) available
- Includes wall-mount brackets
- Helps in preserving investments in coax infrastructure
- Can be used for network connections in harsh electrical areas
- Suitable for applications such as campuses, highways, airports, hotels, casinos, commercial complexes, remote parking lots, entry gates, self-storage, hospitals, car dealerships, prisons, and network connections

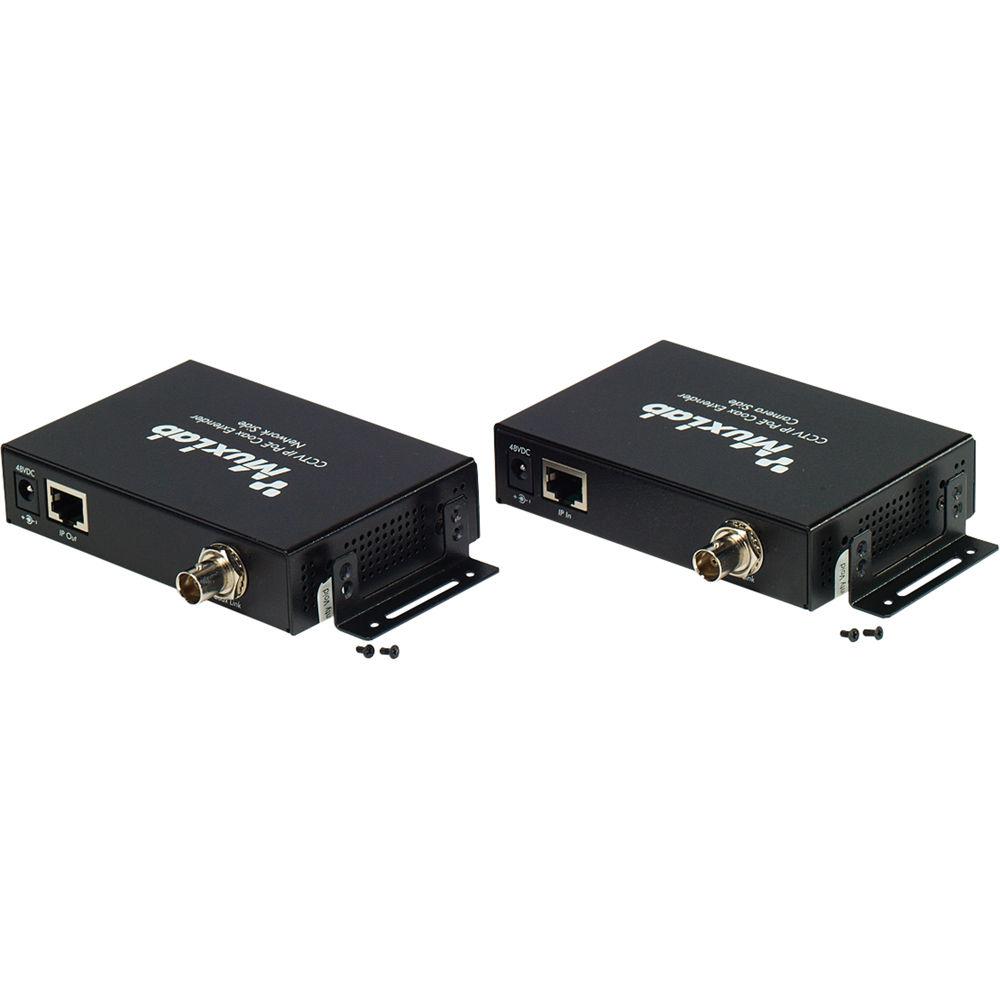

UPC: 627699001127 In the Box MuxLab LongReach CCTV IP PoE Extender Kit for 15.4W Camera 2 x Wall Mount Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab LongReach CCTV IP PoE Extender Kit for 15.4W Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab LongReach Specs | Environment | PoE CCTV IP | | Devices | PoE CCTV IP cameras with a 10/100 Mb/s Ethernet port, using up to 15.4 W | | Transmission | Transparent to the user | | Supported Standards | Ethernet Side: IEEE 802.3 10BaseT, IEEE 802.3U 100Base-TX, IEEE 802.3af compatible | | PoE Power | PoE Class 3 | | Connectors | 1 x BNC 75 Ω
1 x RJ45 for CAT5e/6 unshielded or shielded twisted pair. | | LED Indicators | Power, IP traffic, 100 Mb/s | | Maximum Distance | RG59/RG6: Up to 980' (300 m) @ 100 Mb/s
UTP CAT5e/6: Up to 330' (100 m) @ 100 Mb/s When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. | | Cable | UTP/STP: One CAT5e/6 or better twisted pair cable required
RG59/RG6: 75 Ω (avoid CCS and aluminum foil cable due to DC loss) | | Power Supply | Optional PoE Power Supply (110 to 240 V/48 VDC/0.625 A, 2.1 mm plug) with inter-changeable blades (sold separately). Required at the camera side device when coax cable quality or length results in insufficient power reaching the camera. Required at the network side device when used with non-PoE LAN switch. | | Power Consumption | Network Side: 1.82 W
Camera Side: 1.73 W | | Temperature | Operating: 0 to 104°F (0 to 40°C)
Storage: -4 to 185°F (-20 to 85°C) | | Enclosure | Metal | | Compliance | FCC, CE, RoHS | | Dimensions | 4.37 x 2.95 x 0.99" (111.00 x 75.00 x 25.00 mm) | | Weight | 1.50 lb (0.68 kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.268 x 4.961 x 1.89" |
