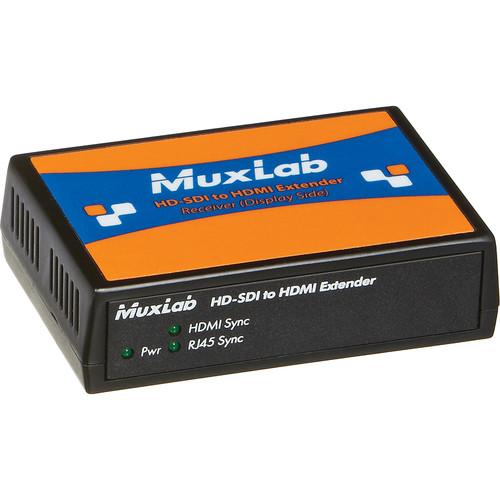

Product description The MuxLab LongReach HD-SDI to HDMI Extender Kit is a transmitter and receiver set that allows you to transmit an HD-SDI signal up to 500 ft via one Cat5e/6 cable and output it via an HDMI output. All resolutions up to 1080p60/50 are supported this 500 ft distance. SDI rates up to 3G are supported and are selected automatically. This extender allows you to use more cost efficient HDMI monitors and also eliminates the need for a separate SDI to HDMI converter. - Key Features
-
- Transmits an HD-SDI signal up to 500 ft via one Cat5e/6 cable
- Outputs signal via an HDMI output to an HDMI display
- Includes US, EU, UK power supply blades
- Indicators
-
- Power
- SDI Sync (on Rx side only)
- RJ45 Sync
- Video (on Tx side only)
- Sound (on Tx side only)
- HDMI Sync (on Rx side only)
UPC: 627699007167 In the Box MuxLab LongReach HD-SDI to HDMI Extender Kit 2 x Power Supplies with Interchangeable Blades for North America, Europe, and UK 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab LongReach HD-SDI to HDMI Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500716 Specs | Supported Devices | HDMI monitors must support the original SDI rate | | Supported Standards | SMPTE 259M (270 Mb/s), SMPTE 292M & SMPTE 424M | | Bit Rates | 270 Mb/s, 1.485 Gb/s, 2.97 Gb/s (automatic selection) | | Supported Video Formats | 3G: 1080p @ 60/50 Hz
HD: 1080p @ 30/25/24 Hz, 720p @ 60/50/30/25/24 Hz, 1080i @ 60/50 Hz
SD: 625i @ 50 Hz, 525i @ 59.94/60 Hz | | Supported Audio Formats | 48 kHz @ 24/20/16 bit | | Input / Output | Transmitter:
1x SDI on BNC, 75 ohm
1x RJ45
1x Power, 2 mm
Receiver:
1x HDMI
1x RJ45
1x Power, 2 mm | | Maximum Distance | UTP Cat 5e/6: 500 ft (152 m)
On SDI side: 450 ft (137 m)
On HDMI side: 15 ft (4.5 m) | | RJ45 Pin Configuration | Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
* Use EIA/TIA 568A or 586B straight-through wiring only | | Power Supply | 100-240 V / 5 VDC, 6W (included) | | Power Consumption | Transmitter: 4 W; Receiver: 6 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Housing | 6061 aluminum alloy | | Dimensions | 4.5 x 3 x 1.25 (11.4 x 7.6 x 3.2 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 12.2 x 8.0 x 4.3" |
