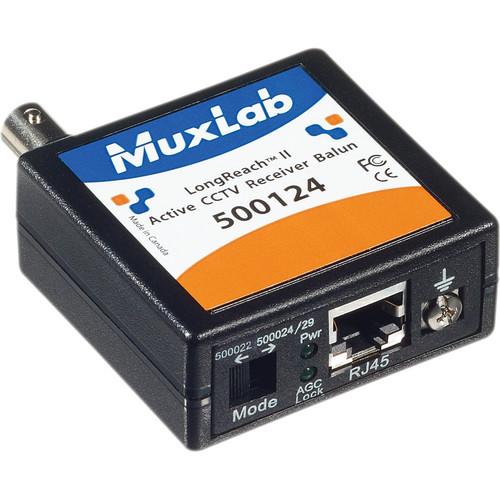

Product description The MuxLab LongReach II Active CCTV Receiver Balun allows you to achieve a separation of up to 5000’ (1500 m) between a CCTV camera and a DVR. Using the cost-efficient CAT5e/6/7 cables, this balun can easily be integrated with an existing cabling system. Auto Gain Control (AGC) amplifies the received signal and delivers high-quality video over long distances. Furthermore, the balun features ground loop isolation and auto polarity correction that enhances the quality of the received video signals.
When used in conjunction with other MuxLab baluns, the LongReach II Active CCTV Receiver Balun simplifies routing solutions by enabling video, power, and PTZ signals to be sent over a single CAT5e/6/7 cable. As a measure of safety, this device comes with built-in surge protection and features LED indicators for you to keep an eye on its operation. - Allows video, power, and PTZ signals to be sent over a single CAT5e/6 cable
- Allows a transmission distance of up to 5000' (1500 m)
- Cost-efficient solution for incorporating CAT-structured cabling system with security systems
- Auto Gain Control (AGC) for high-quality signal output
- Features ground loop isolation and auto polarity correction for eliminating noise accumulated over the transmission length
- Can be used with MuxLab's mounting accessories (500900/902/910/915)
- Suitable for use in airports, hotels, casinos, commercial complexes, remote parking lots, hospitals, etc.
UPC: 627699001240 In the Box MuxLab LongReach II Active CCTV Receiver Balun 5 VDC Power Supply Unit 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab LongReach II Active CCTV Receiver Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab LongReach II Specs | Environment | CCTV composite baseband video; NTSC, PAL, SECAM | | Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equip | | Transmission | Transparent to the user | | | | Bandwidth | 20 Hz to 8 MHz | | Input | 1.5 Vpp maximum, 100Ω, balanced (RJ45) | | Output | 1.1 Vpp, ± 1 dB, 75Ω, unbalanced (BNC) | | Insertion Loss | -14 dB minimum for luma, -60 dB minimum for chroma Determined by Automatic Gain Control | | Return Loss | Greater than 15 dB over the frequency range | | Common Mode Rejection | Greater than 40 dB @ 3.85 MHz | | Auto Polarity Correction | Automatically adjusts for any polarity | | Ground Loop Isolation | Up to +/-50 VDC | | Maximum Distance via Cat5e/6 | 5000' (1500 m) Coax jumper cables must be less than 30' (9 m) | | LED Diagnostics | Power, Video Sync | | AGC (Automatic Gain Control) | Automatically adjusts for gain, sharpness and luminosity | | | | Wiring | Remote low voltage power supported via 2 twisted pairs.
A Class II power supply is recommended | | Maximum Distance@24 VAC | 2 VA : 1500' (457 m)
4 VA : 745' (227 m)
10 VA: 300' (91 m)
20 VA: 150' (46 m) Based on 10% voltage drop at camera. Please consult your CCTV vendor for more info
Longer distances may be achieved @ 28 VAC | | Maximum Current | Fuse supports 2.5A rms or DC. Fuse trips @ 5A May require tilt amplifiers at higher frequencies | | | | Wiring | Remote 2-wire PTZ control supported via one (1) twisted pair | | Maximum Distance | Up to 4000' (1200 m) depending on the PTZ camera vendor | | Maximum Input Voltage | 48 V (AC RMS/DC) | | Maximum Current Rating | 2 A (AC RMS/DC). No fuse | | | | Cable - UTP | 24 gauge or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000 feet at 1 MHz | | Cable - Coax | Impedance: 75 Ω at 1 MHz. (RG59/U) | | Switch | Select between Power-Thru (500024 / 500029) and Pass-Thru (500022) mode | | RJ45 Pin Configuration | For Signal Power A (+)*
500022 Mode: 1,3
500024/500029: 1,3,5
For Signal Power B (-)*
500022 Mode: 2,6
500024/500029: 2,4,6
For Signal Control (+)
500022 Mode: 4
500024/500029: N/A
For Signal Control (-)
500022 Mode: 5
500024/500029: N/A *Reverse polarity sensitive if 12 DC camera is used | | Connectors | Video: BNC-F
Remote Power: 2-pole screw terminal block
PTZ: 2-pole screw terminal block CAT5e/6
Link: RJ45S
Power connector
Gnd screw terminal | | Compatible Baluns | 500000, 500000R, 500009, 500022, 500024, 500100/101 | | Power Supply | 5 VDC /6 W / 100 mA maximum
Floating +/- 20%. 150 mA maximum
Interchangeable blades | | Surge Protection | Above 34 VAC RMS or +/- 48 VDC | | Fuse | Auto-resettable fuse on 5 VDC input and Power A (+) upon power cycling | | Temperature | Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic | | Regulatory Approvals | FCC and CE | | Dimensions | 2.4 x 2.25 x 1" (6.1 x 5.7 x 2.54 cm) | | Weight | 3 oz (85 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.6 x 6.9 x 3.6" |
