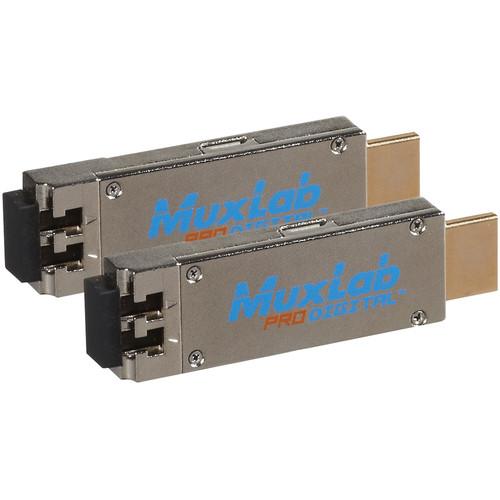

User Manual for MuxLab Mini HDMI Fiber 4K Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab Mini HDMI Fiber 4K Extender
- Product category: HDMI Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab HDMI Signal Extenders
|
User manual for the MuxLab Mini HDMI Fiber 4K Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Mini HDMI Fiber 4K Extender Kit allows an HDMI source such as a Blu-ray player to be extended to a monitor or projector via a dual LC fiber connection. This HDMI 1.4a compliant kit supports resolutions up to 3840 X 2160 and 7.1-channel audio. Each HDMI dongle features a compact design at 2.76' long. - Supports 4K at 24, 25, and 30 Hz
- HDMI 1.4a and HDCP support
- Distance up to 984' using LC Duplex multimode 50/125 µm OM3 fiber cable
- Metallic enclosure for better heat dissipation
- Power using micro USB connector
UPC: 627699004616 In the Box MuxLab Mini HDMI Fiber 4K Extender Kit 2 x HDMI Dongles Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Mini HDMI Fiber 4K Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500461 Specs | HDMI | HDMI 1.4a (3D) | | Devices Supported | DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops | | Transmission | Transparent to the user | | Frequency | 340 MHz | | Connectors | 1 x HDMI Type A male (on each dongle)
1 x LC Duplex (on each dongle)
1 x Micro-USB female (on each dongle) | | Resolution | 480i to 1080p at 50/60 FPS
1080p at 24/50/60 FPS
3840 X 2160 at 24/25/30 FPS
VGA to UXGA | | Color Support | 8, 10, and 12-bit | | Audio | LPCM 7.1-channel, Dolby TrueHD, and DTS-HD Master Audio | | HDCP | Revision 1.3 | | Fiber Cable Supported | LC Duplex multimode 50/125 µm OM3 fiber cable | | Distance Supported | Up to 984' (300 m) using OM3 multimode fiber cable | | Power | Micro-USB (optional power supply only needed if device doesn't have a USB Port or if the USB Port doesn't provide sufficient power) | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: Up to 90% non-condensing | | Enclosure | Metal | | Regulatory | FCC, CE, RoHS | | Dimensions (LxWxD) | 2.76 x 0.79 x 0.31" (70 x 20 x 8 mm) | | Weight | 0.29 lb (0.13 kg) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.1 x 1.2 x 0.5" |
