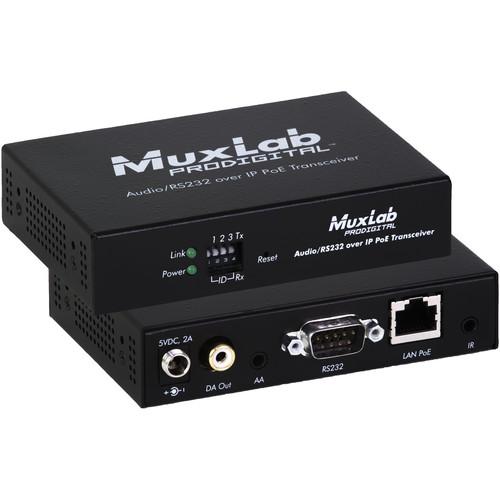

Product description The ProDigital Audio/RS232 over IP PoE Transceiver from Muxlab allows two-channel audio signals to be extended up to 330’ via Cat5e/6 cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint transmission are also supported when several transceivers are connected to the same local Ethernet network. The transceiver also supports PoE (PD) if used with a PoE (PSE) Ethernet switch, and both RS232 & IR transmission for remote control of end devices. The transceiver can be configured as a transmitter or receiver. - General
-
- Extends two-channel audio signals up to 330’ over Cat5e/6 cable
- Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint applications
- Supports multiple transceivers depending on network bandwidth
- Supports RS232 and IR transmission for remote control
- Two-channel analog audio in/out and digital audio out
- PoE powered
- Applications
-
- Commercial and residential AV systems
- Classroom projector systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
UPC: 627699007556 In the Box MuxLab ProDigital Audio/RS232 over IP PoE Transceiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab ProDigital Audio RS232 over IP PoE Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500755 Specs | Signal Type | Two-channel analog audio | | Devices | Two-channel audio equipment, amplifiers, powered speakers, PA systems, AV cameras, and players | | Transmission | To the user | | Bandwidth | 20 Hz to 20 KHz | | Signals | Two-channel analog audio (in or out)
SPDIF out (two-channel digital audio) | | Connectors | 1 x RCA receptacle for SPDIF out
1 x 3.5 mm Mini jack for analog audio (in or out)
1 x RJ45S for Cat5e/6 unshielded or shielded twisted pair
1 x 3.5 mm jack for IR emitter or IR sensor
1 x DB9 serial port for RS232
4 x DIP switches for device ID addressing and transmitter/receiver setting | | Maximum Distance | Cat5e/6: 330' (100 m) Up to 4K @ 30 Hz | | Latency | 30 ms | | Network Requirements | 100BaseT for Point-to-Point; 1000BaseT for other configuration | | IR Frequency | 38 to 56 KHz | | RJ45 Pin Configuration | RJ45 Link:
Pin 1 (R): Pin 2 (T)
Pin 3 (R): Pin 6 (T)
Pin 4 (R): Pin 5 (T)
Pin 7 (R): Pin 8 (T) | | Cable | 1 x Cat5e/6 or better twisted pair cables required | | Power Supply | Supports PoE (PD); an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet switch, in the absence of which, an optional power supply (500993) may be purchased separately. | | PoE | IEEE 802.3af | | Power Consumption | Transmitter: 2.9 W
Receiver: 1.8 W | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: Up to 95%, non-condensing | | Regulatory Compliance | FCC, CE, RoHS | | Flammability | 94V0 | | Dimensions | 3.7 x 3.7 x 1.0" (9.4 x 9.3 x 2.5 cm) each | | Weight | 1.1 lb (0.5 kg) each | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.4" |
