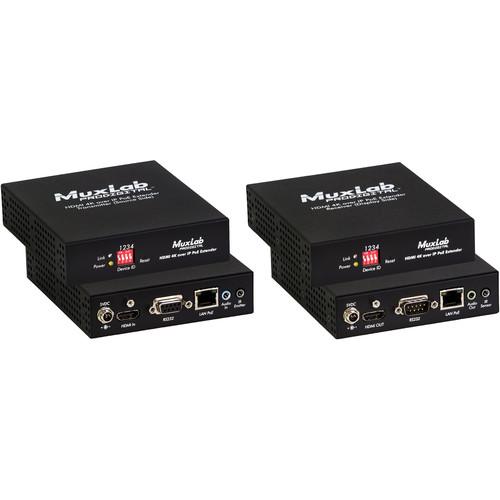

Product description The ProDigital HDMI 4K over IP PoE Extender Kit from Muxlab includes the HDMI 4K Transmitter and Receiver. This system allows for HDMI point-to-point transmissions up to a distance of 330’, supporting UHD 4K resolutions of 3840 x 2160 at 30 Hz via one Cat5e/6 cable. - ProDigital HDMI 4K over IP PoE Transmitter The ProDigital HDMI 4K over IP PoE Transmitter from Muxlab transmits HDMI signals up to a distance of 330’. The transmitter supports up to 3840 x 2160 UHD 4K resolutions at 30 Hz via a single Cat5e/6 cable. This happens in a point-to-point configuration, but point-to-multipoint and multipoint-to-multipoint are also possible by connecting several units to the same local Ethernet network. The transmitter supports PoE (PD) if used with a PoE (PSE) Ethernet switch. If that switch is unavailable, an external power supply (#500993) may be purchased separately.
- General
-
- Supports HDMI up to 4K @ 30 Hz (4:4:4)
- Supports multiple receivers depending on network bandwidth
- Extend HDMI up to 330’ over Cat5e/6 cable
- Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint applications
- Supports audio insert
- Supports RS-232 and IR transmission for remote control
- Applications
-
- Commercial and residential AV systems
- Classroom projector system
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
UPC: 627699907580 - ProDigital HDMI 4K over IP PoE Receiver The ProDigital HDMI 4K over IP PoE Receiver from Muxlab receives an HDMI signal from a distance of 330’. The receiver supports a point-to-point UHD 4K resolution up to 3840 x 2160 at 30 Hz via one Cat5e/6 cable. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several units to the same local Ethernet network. The receiver supports PoE (PD) if used with a PoE (PSE) Ethernet switch. If the switch is unavailable, an external power supply (#500993) may be purchased separately.
- General
-
- Supports HDMI up to Ultra HD 4K at 30 Hz (4:4:4)
- Supports multiple transmitters depending on network bandwidth
- Extend HDMI up to 330’ over Cat5e/6 cable
- Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint applications
- Supports audio extracts
- Supports RS-232 and IR transmission for remote control
- Applications
-
- Commercial and residential AV systems
- Classroom projector system
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
UPC: 627699807583 In the Box Bundle Items ProDigital HDMI 4K over IP PoE Transmitter ryfqszaaffadzu ProDigital HDMI 4K over IP PoE Receiver Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab ProDigital HDMI 4K over IP PoE Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ProDigital HDMI 4K over IP PoE Transmitter
| Signal Type | HDMI 1.4 protocol | | Devices | Blu-ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Bandwidth | 300 MHz | | Connectors | 1 x HDMI receptacle
1 x RJ45S for Cat5e/6 unshielded or shielded twisted pair
2 x 3.5 mm mini jacks for IR emitter
2 x 3.5 mm mini jacks for audio insert
1 x DB9 for RS-232
4 x DIP switches for device ID addressing | | Maximum Distance | Cat5e/6: 330' / 100 m up to 4K @ 30 Hz | | Latency | One frame typical (16 ms), maximum two frames (33 ms) | | Compression | Proprietary compression | | Bandwidth | Up to 850 Mb/s | | Network Requirements | 1000BASET with Jumbo Frame | | IR Frequency | 38 to 56 kHz | | RJ45 Pin Configuration | RJ45 Link:
Pin 1 (R): Pin 2 (T)
Pin 3 (R): Pin 6 (T)
Pin 4 (R): Pin 5 (T)
Pin 7 (R): Pin 8 (T) | | Cable | 1 x Cat5e/6 or better twisted pair cables required | | Power Supply | Supports PoE (PD). An external power supply is not included, and is intended to be powered via a PoE (PSE) Ethernet switch, in the absence of which, an optional power supply (500993) may be purchased separately. | | PoE | IEEE 802.3af | | Power Consumption | 2.85 W | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 185°F / -20 to 85°C
Humidity: Up to 95%, non-condensing | | Regulatory Compliance | FCC, CE, RoHS | | Flammability | 94V0 | | Dimensions | 4.4 x 5.1 x 1.0" / 11.2 x 12.9 x 2.5 cm | | Weight | 1.5 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.9 x 2.3" | - ProDigital HDMI 4K over IP PoE Receiver
| Signal Type | HDMI 1.4 protocol | | Devices | Blu-ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Bandwidth | 300 MHz | | Connectors | 1 x HDMI, female
1 x RJ45S for Cat5e/6 unshielded or shielded twisted pair
2 x 3.5 mm mini jacks for IR sensor
2 x 3.5 mm mini jacks for audio extracts
1 x DB9 for the RS-232
4 x DIP switches for device ID addressing | | Maximum Distance | Cat5e/6: 330' / 100 m
Up to UHD 4K @ 30 Hz | | Latency | One frame typical (16 ms), maximum two frames (33 ms) | | Compression | Proprietary compression | | Bandwidth | Up to 850 Mb/s | | Network Requirements | 1000BASET with Jumbo Frame | | IR Frequency | 38 to 56 kHz | | RJ45 Pin Configuration | RJ45 Link:
Pin 1 (R): Pin 2 (T)
Pin 3 (R): Pin 6 (T)
Pin 4 (R): Pin 5 (T)
Pin 7 (R): Pin 8 (T) | | Cable | 1 x Cat5e/6 or better twisted pair cables required | | Power Supply | Supports PoE (PD). An external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet switch, in the absence of which, an optional power supply (500993) may be purchased separately. | | PoE | IEEE 802.3af | | Power Consumption | 2.55 W | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 185°F / -20 to 85°C
Humidity: Up to 95%, non-condensing | | Regulatory Compliance | FCC, CE, RoHS | | Flammability | 94V0 | | Dimensions | 4.4 x 5.1 x 1.0" / 11.2 x 12.9 x 2.5 cm | | Weight | 1.5 lb / 680.4 g | | | | Box Dimensions (LxWxH) | 8.0 x 5.9 x 2.2" |
