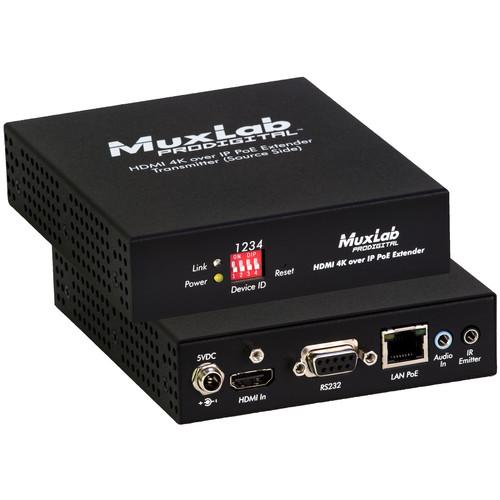

Product description The ProDigital HDMI 4K over IP PoE Transmitter from Muxlab transmits HDMI signals up to a distance of 330’. The transmitter supports up to 3840 x 2160 UHD 4K resolutions at 30 Hz via a single Cat5e/6 cable. This happens in a point-to-point configuration, but point-to-multipoint and multipoint-to-multipoint are also possible by connecting several units to the same local Ethernet network. The transmitter supports PoE (PD) if used with a PoE (PSE) Ethernet switch. If that switch is unavailable, an external power supply (#500993) may be purchased separately. - General
-
- Supports HDMI up to 4K @ 30 Hz (4:4:4)
- Supports multiple receivers depending on network bandwidth
- Extend HDMI up to 330’ over Cat5e/6 cable
- Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint applications
- Supports audio insert
- Supports RS-232 and IR transmission for remote control
- Applications
-
- Commercial and residential AV systems
- Classroom projector system
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
UPC: 627699907580 In the Box MuxLab ProDigital HDMI 4K over IP PoE Transmitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab ProDigital HDMI 4K over IP PoE Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500758-TX Specs | Signal Type | HDMI 1.4 protocol | | Devices | Blu-ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Bandwidth | 300 MHz | | Connectors | 1 x HDMI receptacle
1 x RJ45S for Cat5e/6 unshielded or shielded twisted pair
2 x 3.5 mm mini jacks for IR emitter
2 x 3.5 mm mini jacks for audio insert
1 x DB9 for RS-232
4 x DIP switches for device ID addressing | | Maximum Distance | Cat5e/6: 330' / 100 m up to 4K @ 30 Hz | | Latency | One frame typical (16 ms), maximum two frames (33 ms) | | Compression | Proprietary compression | | Bandwidth | Up to 850 Mb/s | | Network Requirements | 1000BASET with Jumbo Frame | | IR Frequency | 38 to 56 kHz | | RJ45 Pin Configuration | RJ45 Link:
Pin 1 (R): Pin 2 (T)
Pin 3 (R): Pin 6 (T)
Pin 4 (R): Pin 5 (T)
Pin 7 (R): Pin 8 (T) | | Cable | 1 x Cat5e/6 or better twisted pair cables required | | Power Supply | Supports PoE (PD). An external power supply is not included, and is intended to be powered via a PoE (PSE) Ethernet switch, in the absence of which, an optional power supply (500993) may be purchased separately. | | PoE | IEEE 802.3af | | Power Consumption | 2.85 W | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 185°F / -20 to 85°C
Humidity: Up to 95%, non-condensing | | Regulatory Compliance | FCC, CE, RoHS | | Flammability | 94V0 | | Dimensions | 4.4 x 5.1 x 1.0" / 11.2 x 12.9 x 2.5 cm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.0 x 5.9 x 2.3" |
