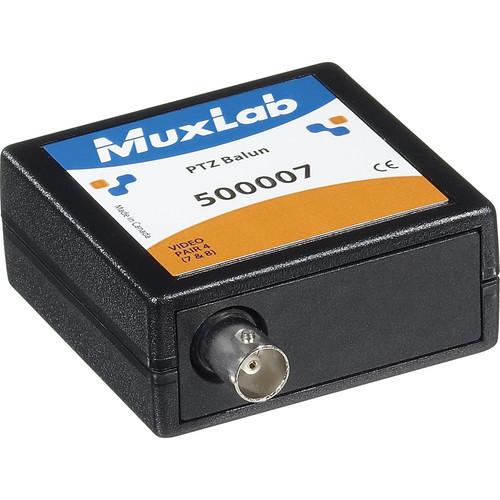

Product description The MuxLab PTZ Balun is a video extender that allows transmission of CCTV video and up-the-coax PTZ control signals via a single UTP cable. When used in pairs, the Balun transmits black and white signals up to 1400’ (427 m) and color signals up to 1250’ (381 m) via Cat5e/6 cables. A low return loss transmission ensures maximum power transfer with no line faults between the input and output. - Used in pairs, allows transmission of CCTV video and "up-the-coax" PTZ control signals via a single UTP cable
- Allows use of Cat3/5e/6 cables as a cost-effective alternative to coaxial cables
- Transmits color signals up to 875' (267 m) via Cat3; distance can be extended up to 1250' (381 m) via Cat5e/6
- Transmits black and white signals up to 980' (299 m) via Cat3; distance can be extended up to 1400' (427 m) via Cat5e/6
- Made of ABS fire-retardant plastic
- Hook and loop mounting strip for neater installation
- Allows movement of security/monitoring devices closer to a modular wall outlet
- Low return loss ensures maximum power transfer with no line faults
- Compact design - 2.40 x 2.25 x 1.00" (6 x 5.71 x 2.54 cm)
- Works with Pelco Coaxitron 2000, Pelco MPT9000-PZ/ MPT9500, and Pelco Spectra SD5AC control systems
UPC: 627699000076 In the Box MuxLab PTZ Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab PTZ Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500007 Specs | Environment | CCTV equipment for security and surveillance
NTSC,PAL, SECAM, Coaxitron | | Devices | CCTV cameras and Pan, Tilt, Zoom controllers supporting one video and one PTZ signal over the same coaxial cable
Works with Pelco Coaxitron, Vicon Vicoax, Videoalarm Coaxlynx, Panasonic and other digital coax pan, tilt, and zoom control systems | | Compatible with these Models | Pelco Coaxitron 2000, Pelco MPT9000-PZ/ MPT9500, Pelco Spectra SD5AC | | Transmission | Transparent to the user | | Bandwidth | Video: DC to 8 MHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance Colour | Cat 3: 875' (267 m), Cat5e/6: 1250' (381 m) | | Maximum Distance Black & White | Cat 3: 980' (299 m), Cat5e/6: 1400' (427 m) | | Cable - UTP | 24 gauge or lower solid copper UTP
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305 m) at 1 MHz | | Cable - BNC | Impedance: 75 ohms at 1 MHz (RG59/U)
Maximum 25' (7.7 m) of coax allowed per end to end link | | Pin Configurations | RJ45 Pins 7 & 8 Reverse polarity sensitive. | | Connectors | One (1) BNC-Female and one (1) RJ45 Female
Comes with one 6" (0.15 m) coax lead | | Impedance | Input: 75 ohms (BNC)
Output: 100 ohms (RJ45) | | Temperature | Operating: 0 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C) | | Humidity | Up to 95% | | Enclosure | Fire retardant plastic | | Mounting | Hook & loop strip | | Dimensions | 2.40 x 2.25 x 1.00" (6 x 5.71 x 2.54 cm) | | Weight | 3 oz (86 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 7.3 x 7.0 x 0.5" |
