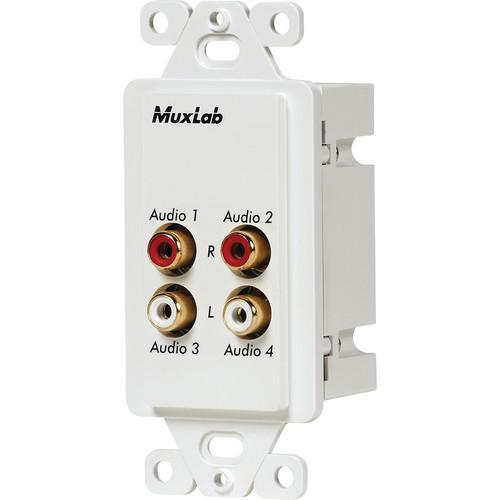

User Manual for MuxLab Quad Audio Wall Plate Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Quad Audio Wall Plate Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab Quad Audio Wall Plate Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Quad Audio Wall Plate Balun (US) allows you to simultaneously transmit up to 4 analog line audio signals via a single UTP (unshielded twisted pair) cable in a point-to-point configuration. The use of a single cost-efficient CAT 5e/6 cable eliminates the need for 4 coaxial audio cables, allowing for a cost-efficient solution. This balun is capable of transmitting composite video signals up to a distance of 3250’ (990.6 m) and component video signals up to a distance of 1000’ (305 m).
Offering bandwidth support from 20 Hz to 20 KHz, the Quad Audio Wall Balun ensures a high-fidelity sound output. When used in conjunction with other MuxLab Baluns, the Quad Video Balun simplifies video routing and is suitable for use in commercial and home A/V systems. - Transmits up to 4 analog line audio signals via a single CAT 5e/6 cable
- Cost-efficient solution for replacing up to 4 audio coax cables
- Transmission distance up to 3250' (990.6 m)
- Compatible with the Muxlab 500019 Analog Audio Balun
- Suitable for use in commercial and home audio systems, intercom systems, rental and staging systems, audio-video conferencing systems, etc.
- Neat and clutter-free installation
- Can be used with a Decora face plate for better aesthetics in an in-wall setup
UPC: 627699920336 In the Box MuxLab Quad Audio Wall Plate Balun (US) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Quad Audio Wall Plate Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500033-WP-US Specs | Environment | Unbalanced line-level analog audio | | Devices | DVD players, audio receivers, audio amplifiers and audio mixers, audio matrix switchers, and other unbalanced line-level audio equipment | | Transmission | Transparent to the user | | Bandwidth | 20 Hz to 20 KHz | | Peripherals' Impedance | Source 100 Ω maximum
Receiver 10 kΩ minimum | | Insertion Loss | Less than 2 dB per pair over the frequency range | | Common Mode Rejection Ratio | Greater than 60 dB at 1 kHz | | THD | Less than 0.007% @ 1 kHz | | Maximum Input Level | 1.1 Vpp | | Impedance Transformation Ratio | Single Unit: 4:1 (source: line) | | Cable: Cat 5E UTP/STP | 24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum Capacitance: 20 pf/ft
Attenuation: 6.6 dB/1000 ft at 1 MHz | | Unbalanced In/ Out Cable | Shielded, coaxial | | Ground Loop Isolation | Range of +/-50 VDC | | Connectors | 4 RCA receptacle for audio
1 RJ45 jack | | Pin Configuration | Audio 1: Pins 7(R) & 8(T)
Audio 2: Pins 3(R) & 6(T)
Audio 3: Pins 4(R) & 5(T)
Audio 4: Pins 1(R) & 2(T) | | Max. Distance: Cat 5E/6 UTP/STP | 3250' (990.36 m) | | Temperature | Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C)
Humidity: Up to 95% | | Enclosure | Fire retardant plastic | | Dimensions | 4.1 x 1.8 x 1.44" (104 x 45.7 x 36.6 mm)
Choose 1.6" (40.6 mm) deep back box to allow for Cat 5E/6 wiring connection | | Weight | 4.1 oz (116.23 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 2.3" |
