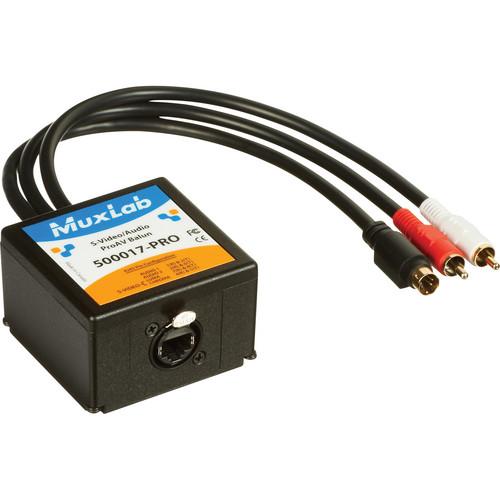

User Manual for MuxLab S-Video Audio ProAV Balun Transmitter Click to enlarge the picture
Contents of the user manual for the MuxLab S-Video Audio ProAV Balun Transmitter
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab S-Video Audio ProAV Balun Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab S-Video/Audio ProAV Balun Transmitter (CAT 5e/6 UTP) can transmit a single S-video and stereo audio channel via a CAT 5e/6 UTP cable up to 1000’ (304.8 m) in a point-to-point connection. A heavy-duty 12” (30.5 cm) built-in cable harness ensures that the wires are secured against vibrations, abrasions, and moisture. In addition, it features a rugged aluminum enclosure and an Ethercon RJ45 connector that ensures protection in a harsh A/V environment. - Allows transmission of a single S-video and stereo audio channel via a CAT 5e/6 UTP up to 1000' (304.8 m) in a point-to-point connection
- Compatible with Muxlab 500017, 500038 and 500038-WP balun transmitters
- Rugged aluminum enclosure and Ethercon RJ45 connector ensures protection in harsh A/V environments
- 12" (30.5 cm) heavy-duty built-in cable harness ensures that the wires are secured against vibrations, abrasions, and moisture
- Supports audio bandwidth from 20 Hz to 20 kHz
- Suitable for rental & staging and video production applications
- For use with podium systems, venues, and HD camcorders
UPC: 627699900178 In the Box MuxLab S-Video/Audio ProAV Balun Transmitter (CAT 5e/6 UTP) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab S-Video Audio ProAV Balun Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500017-PRO Specs | Environment | S-video equipment | | Devices | DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, LCD projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, S-video splitters, S-video converters and other S-video equipment. | | Transmission | Transparent to the user | | Cable - UTP | 24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' at 1 MHz | | Connectors | 4-pin Mini DIN S-video 12" (30.5 cm) cable lead
2 RCA audio jacks for stereo audio
Ethercon RJ45 for CAT 5e | | Temperature | Operating: 32 to 131° F (0 to 55º C)
Storage: -4 to 185° F (-20 to 85º C)
Humidity: up to 95% | | Enclosure | Cast aluminium | | | | Bandwidth | 20 Hz to 20 KHz | | Impedance | 600 ohms min | | Maximum Input | 1.1 Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range | | Common Mode Rejection | Greater than 60 dB @ 1 KHz
Greater than 40 dB over the frequency and distance range | | Max. Distance via CAT 5e/6 UTP | 3250' (990 m) | | RJ45 Pin Configuration | Audio 1: pins 1 [R] & 2 [T]
Audio 2: pins 3 [R] & 6 [T] | | | | Bandwidth | DC to 6 MHz | | Impedance | 75 ohms | | Maximum Input | 1.1 Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 6 MHz | | Return Loss | Better than 15 dB over the frequency range | | Common Mode Rejection | Greater than 40 dB over the frequency range | | Max. Distance via CAT 5e/6 UTP | 1,000' (305 m) | | RJ45 Pin Configuration | S-video Luma: pins 7 [R] &8 [T]
S-video Chroma: pins 4 [R] & 5 [T] | | Dimensions | 2.7 x 2.6 x 2 (7 x 6.7 x 5 cm)
Plus 12" (30.5 cm) cable lead | | Weight | 0.54 lb (245.8 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 2.4" |
