User Manual for MuxLab Shielded CATV Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Shielded CATV Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab Shielded CATV Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

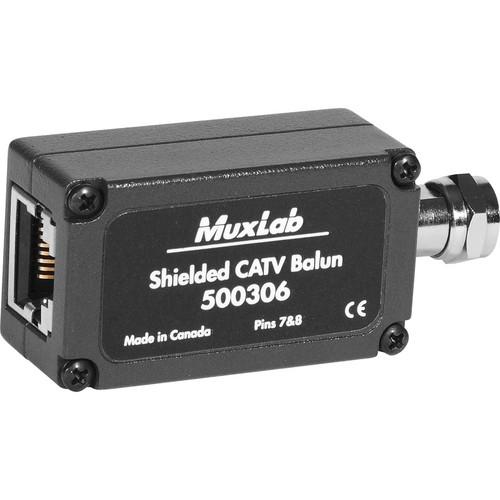

Product description The Shielded CATV Balun from MuxLab allows you to transmit terrestrial RF signals via a single UTP or CAT5e/6/7 STP cable. When used in pairs, this balun allows you to integrate your RF sources such as the Internet and digital cable with a more efficient CAT-structured cabling system. The balun allows you to replace a coaxial cable with a single CAT5e/6/7 cable and supports high-amplified RF signals. In addition, the balun is capable of achieving transmissions up to a distance of 330’ (100 m).
The cast-aluminum enclosure reduces EMI / RFI egress that minimizes the drop in signal strength, making the CATV Balun useful for long distance transmissions. When used in conjunction with other MuxLab CATV Hubs (500300/303), the Shielded CATV Balun simplifies routing solutions and is suitable for use in commercial and home A/V systems. - Allows CATV equipment to be used with any convenient modular wall outlet
- Transmits a terrestrial RF signal via a CAT5e/6/7 STP or UTP cable
- Easily incorporate broadband CAT equipment into a structured cabling system
- Supports bandwidth up to 900 MHz (Internet, digital cable, etc.)
- Transmission distance up to 330' (100 m)
- High-quality EMI/RFI shielding with a cast aluminum enclosure
- Can be placed besides most RF splitters
- Compatible with the MuxLab 500300 or 500303 CATV Hubs for an efficient cabling solution
- Suitable for use in schools, government, offices, hospitals, financial institutions, hotels, residential complexes, and similar environments
UPC: 627699003060 In the Box MuxLab Shielded CATV Balun Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Shielded CATV Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500306 Specs | Environment | Private and public broadband CATV, VHF, and FM networks | | Devices | Terrestrial CATV, satellite receivers, DVD players, RF modulators, splitters, cable modems, and other broadband video equipment | | Transmission | Transparent to the user | | 3dB Bandwidth | 5 to 900 MHz | | Video Channels Supported | CATV 2-142, VHF channels 2-13, FM broadcast band | | Insertion Loss Per Pair | Less than 3 dB: 5 - 295 MHz, 510 - 725 MHz
Less than 4.2 dB: 295 - 510 MHz, 725 - 900 MHz | | Return Loss | Greater than 10 dB: 5 - 245 MHz, 493 - 900 MHz
Greater than 9.6 dB: 245 - 493 MHz | | Common Mode Rejection | -20 dB or higher at 5 to 900 MHz | | Cable-UTP | 24-AWG or lower solid copper twisted pair
Impedance: 100-120 ohms | | Cable - Coax | Impedance: 75-ohms at 1MHz (RG6) | | Connectors | Input : F connector (male)
Output : RJ45S (female) | | RJ45 Pin Configuration | RJ45 pins 7 & 8 | | Maximum Distance | Up to 330' (100 m) via Cat5 UTP depending on channel frequency and input power
Maximum 330' (100 m) at CATV channel 2 (may require tilt amplifiers at high frequencies) | | Temperature | Operating: 32 to 104° F (0 to 40° C)
Storage: -10 to 70° F (-14 to 158° C) | | Humidity | Maximum 95% (non-condensing) | | Enclosure | Aluminum cast | | Regulatory Approvals | FCC, CE | | Dimensions (L x H x W) | 0.8 x 1.85 x 1.05 (2 x 2.6 x 4.7 cm) | | Weight | 1.5 oz (44 g) | | | | Package Weight | 0.13 lb | | Box Dimensions (LxWxH) | 5.6 x 4.4 x 0.8" |
