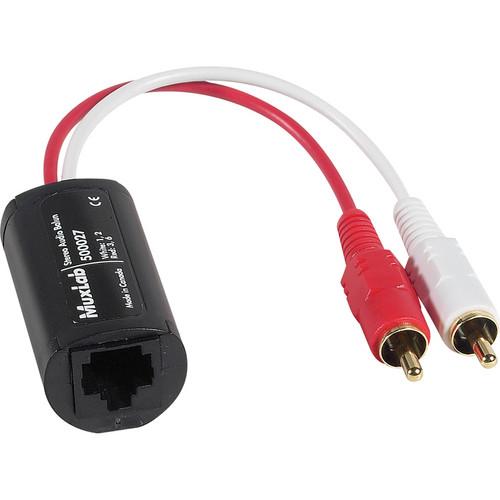

Product description The MuxLab Stereo Audio Balun allows an unbalanced line level stereo audio from an analog audio source to be connected up to 5000' (1.5 km) away using Cat 5e/6 (UTP) cables. It is designed for audio applications with a midrange audio frequency response. Eliminating the use of coaxial cables, the Stereo Audio Balun allows audio equipment to be connected or moved within a structured cabling environment. It has a common mode rejection of 60 dB at 1 KHz, and features color-coded RCA cable leads for an easy and error-free connection to an audio source. - Connects an audio source up to 5000' (1.5 km) away
- Uses Cat 5e/6 (UTP) cables
- Supports unbalanced line level stereo audio formats
- Designed for audio applications where primarily midrange audio frequency response is required
- Eliminates the use of coaxial cables
- Allows audio equipment to be connected or moved within a structured cabling environment
- Common mode rejection greater than 60 dB at 1 KHz for an error-free connection
- Features color-coded RCA cable leads for an easy connection to an audio source
- Works in conjunction with other MuxLab products such as the 500019, 500001, 500012, 500017, and 500200
UPC: 627699000274 In the Box MuxLab Stereo Audio Balun Lifetime Warranty Quick-Start Guide PDF 53.2kbcyseqrffbdtrycdcactbwvqcb Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Stereo Audio Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500027 Specs | Standards | Line level unbalanced analog audio | | Transmission | Transparent to the user | | Bandwidth | Up to 1,000' (305m): 60Hz - 20 kHz
1,000 - 5,000' (305m - 1.5km): 100Hz - 20 kHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Insertion Loss per Balun Pair: Less than 1 dB per pair over the frequency range | | Common Mode Rejection | Greater than 60 dB @ 1 kHz | | Impedance | Audio Source Impedance: Less than 600 ohms
Audio Receiver Impedance: 10 k ohms or greater
Impedance Transformation Ratio (Single Unit): 4:1 (source: line) | | Cable | UTP
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1,000' (304.8m) at 1 MHz | | Maximum Distance | Cat 5e/6 UTP: 5000' (1.5km) | | Connectors | 2 RCA-M 6" (152mm) cable leads
1 RJ45 | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | Enclosure | ABS fire retardant plastic | | Dimensions (Diam. x L) | 1 x 1.9" (25 x 48mm) - plus 6" (152mm) audio lead | | Weight | 1 oz (28g) | | | | Package Weight | 0.08 lb | | Box Dimensions (LxWxH) | 5.3 x 4.3 x 0.6" |
