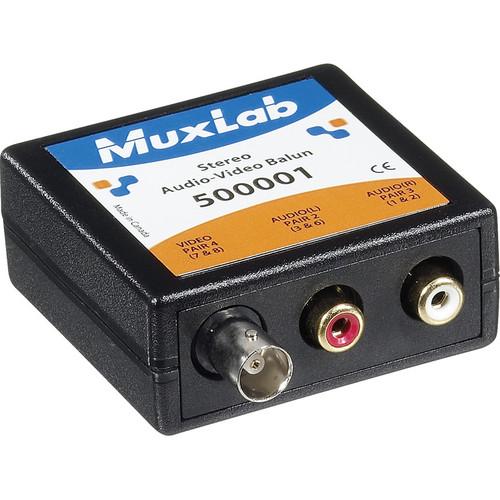

Product description The MuxLab Stereo Audio-Video Balun allows transmission of composite video signals and up to 2 unbalanced audio signals in a point-to-point configuration using Cat5E/6 UTP (Unshielded Twisted Pair) cable, eliminating the need for up to 3 coaxial cables.
When used in conjunction with MuxLab’s Audio-Video Distribution Hub (500200), the balun allows distribution of audio-video programming via UTP. It is used in pairs to transmit color video signals at a distance of up to 2200’ (670m) and audio signals up to 5000’ (1524m) via Cat5E/6.
Made of fire retardant plastic, the compact balun measures 2.40 x 2.25 x 1.00” (6.1 x 5.7 x 2.54 cm) and features a 9” (22.86 cm) coax (BNC/BNC) jumper cable.
Providing a hassle-free cabling solution, the balun connects to DVD, VCR, camcorders, audio receivers, audio amplifiers, AV switchers, splitters, AV mixers, and other analogue audio-video equipment featuring coaxial input or output with BNC or RCA connectors.
Supporting composite video and unbalanced audio, the audio-video balun can be used in classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks. - Allows transmission of a composite video signals and up to 2 unbalanced audio signals in a point-to-point configuration using Cat5E/6 UTP cable
- Eliminates the need for up to 3 coaxial cables
- Allows distribution of audio-video programming via UTP when used in conjunction with MuxLab's
- Audio-Video Distribution Hub (p/n 500200)
- Used in pairs to transmit color video signals at a distance of up to 2200' (670m) and audio signals up to 5000' (1524m)
- Fire retardant plastic enclosure
- Compact design - 2.40 x 2.25 x 1.00" (6.1 x 5.7 x 2.54 cm)
- Includes 9" (22.86 cm) coax (BNC/BNC) jumper cable
- Hassle-free cabling solution
UPC: 627699000014 In the Box MuxLab Stereo Audio-Video Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Stereo Audio-Video Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500001 Specs | Standards | Composite video and unbalanced audio for the consumer and commercial market | | Transmission | Transparent to the user | | Bandwidth | Video: DC to 8 MHz
Audio: 20 Hz to 20 KHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color Video Cat5e/6: 2,200' (671m)
Audio Cat5e/6: 5,000' (1.5 km) | | Cable | Cat5E/6 UTP
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1,000' (304.8m) at 1 MHz
RCA
Standard audio cable terminated by RCA connectors
BNC
75-ohm coaxial cable | | Connectors | 1 BNC-receptacle / Includes 9" (229mm) coax jumper cable
2 RCA-receptacle
1 RJ45 jack | | Pins | Video: Pins 7 (R) & 8 (T)
Audio 1: Pins 1 (R) & 2 (T)
Audio 2: Pins 3 (R) & 6 (T) | | Impedance | Video: 75 ohms (BNC) unbalanced
Audio: 600 ohms (RCA) unbalanced | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | Enclosure | Fire retardant plastic | | Dimensions | 2.4 x 2.3 x 1" (6.1 x 5.7 x 2.5cm) | | Weight | 4.3 oz (121g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.4 x 4.2 x 1.0" |
