User Manual for MuxLab Stereo Hi-Fi Balun 500028 Click to enlarge the picture
Contents of the user manual for the MuxLab Stereo Hi-Fi Balun 500028
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Stereo Hi-Fi Balun 500028 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

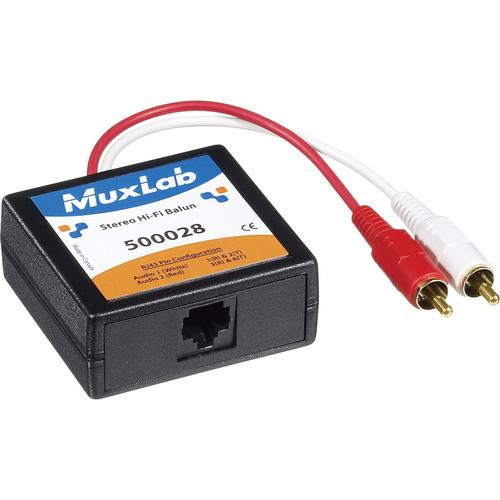

Product description The MuxLab Stereo Hi-Fi Balun 500028 carries an unbalanced signal from an analog audio source, like a DVD player, to a hi-fi amplifier system so as to achieve hi-fi sound quality for the analog source.
Such a setup requires two Balun units. Each connects to its source by two integrated 6" RCA-M cables, and the two units connect by Cat5, over which the analog signal is carried.
The Balun allows a simple, neat and affordable way of getting a hi-fi frequency response. UPC: 627699000281 In the Box MuxLab Stereo Hi-Fi Balun 500028 2 x Integrated RCA-M Cable 2-Year Limited Warranty Quick-Start Guide PDF 159.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Stereo Hi-Fi Balun 500028 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500028 Specs | Environment | Line level unbalanced analogue audio | | Device Compatibility | DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio amplifiers, audio switchers, AV monitors, powered subwoofer and other line level audio equipment | | Transmission | Transparent to the user | | 3dB Bandwidth | 20 Hz to 20 KHz over the distance range | | Maximum Input | 1.1Vp-p unbalanced | | Insertion Loss | Per balun pair: less than 2 dB over the frequency range | | Common Mode Rejection | Greater than 60 dB @ 1 KHz
Greater than 40 dB over the frequency and distance range | | THD | Maximum 0.007% @ 1 KHz over distance range | | Audio Source Impedance | 100 ohms maximum | | Audio Receiver Impedance | 10 k ohms minimum | | Maximum Distance | By Cat5e/6 UTP: 3,250 ft (1 km) | | Pin Configuration | RJ45 (EIA 568 A or B):
Audio 1 (white) -- pins 1 [R] & 2 [T]
Audio 2 (red) -- pins 3 [R] & 6 [T] | | Cable - UTP | 24AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot (20 pf/30 cm)
Attenuation: 6.6 dB/1000 ft at 1 MHz (6.6 dB/304 m at 1 MHz) | | Cable - Coax | Shielded audio cable | | Connectors | RCA-M 6" (15 cm) cable leads x2
RJ45 x1 | | Temperature | Operating: 32 to 131ºF (0 to 55ºC) Storage: -4 to 185ºF (-20 to 85ºC) Humidity: up to 95% | | Enclosure | ABS, fire retardant plastic | | Dimensions | 2.4 x 2.25 x 1" plus 6" audio lead (6 x 5.7 x 2.5 cm plus 15 cm audio lead) | | Weight | 3.1 oz (89 g) | | | | Package Weight | 0.22 lb | | Box Dimensions (LxWxH) | 5.95 x 4.45 x 1.1" |
