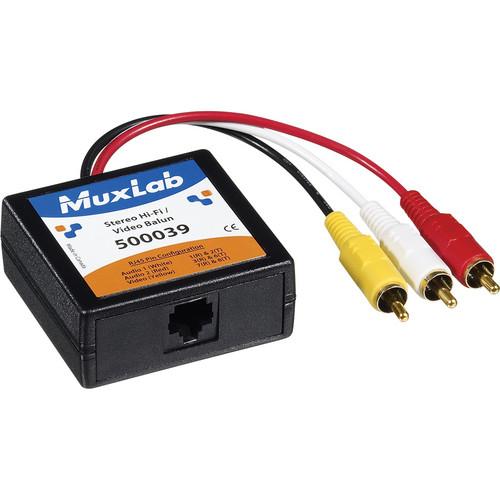

User Manual for MuxLab Stereo Hi-Fi Video Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Stereo Hi-Fi Video Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab Stereo Hi-Fi Video Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The Stereo Hi-Fi/Video Balun from MuxLab allows you to transmit a composite video signal via a single UTP (Unshielded Twisted Pair) cable in a point-to-point configuration. It is capable of achieving transmissions of up to 2200' for use in comprehensive systems such as those used for classroom video distribution, hospital video training, video conferencing, and video kiosks.
With full audio bandwidth support, the Stereo Hi-Fi/Video Balun offers a high-quality sound output, which is suitable for high-fidelity applications. When used in conjunction with other MuxLab baluns, the Stereo Hi-Fi/Video Balun simplifies video routing solutions and is suitable for use in commercial and home A/V systems. - Transmits one composite video signal via a CAT 5e/6 cable
- Full audio bandwidth support for clear sound output
- Efficient solution for point-to-point connections
- Transmission distances of up to 2200' (670.56 m)
- Quick and easy installation with built-in color-coded cable leads
- Can be used with MuxLab's Audio-Video Distribution Hub for distribution via UTP
- Facilitates clutter-free installation
- Suitable for use in classroom video distribution, AV systems, and video conferencing
UPC: 627699000397 In the Box MuxLab Stereo Hi-Fi/Video Balun Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Stereo Hi-Fi Video Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500039 Specs | Environment | Composite video (NTSC, PAL, SECAM) equipment | | Devices | DVD players, VCRs, satellite receivers, MPEG players, laptops, notebooks, monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters, and other composite video equipment | | Transmission | Transparent to the user | | Bandwidth | Composite Video: DC to 6 MHz
Audio: 20 Hz to 20 kHz over the distance range | | Impedance | Composite Video: 75 Ohms;
Audio: 600 Ohms (minimum) | | Maximum Input | Composite Video: 1.1 V p-p
Audio: 1.1 V p-p | | Insertion Loss | Composite Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
Audio: Less than 2 dB per pair over the frequency range | | Return Loss | Composite Video: Better than 15 dB over the frequency range | | Common Mode Rejection | Composite Video: Greater than 40 dB over the frequency range | | Max. Distance via CAT 5e/6 UTP | Composite Video: 2200' (670 m)
Audio: 3250' (990 m) | | Pin Configuration | Composite Video: Video (Yellow): Pins 7(R) and 8(T) (reverse polarity sensitive)
Audio: Audio 1 (White): Pins 1(R) and 2(T) / Audio 2 (Red): Pins 3(R) and 6(T) | | Cable - UTP | 24 AWG or lower solid copper twisted pair wire
Impedance: 100 Ohms at 1 MHz; Maximum Capacitance: 20 pf/foot
Attenuation: 6.6 dB per 1,000' / 304.8 at 1 MHz | | Connectors | 1 x RCA-M for video (yellow)
2 x RCA-M for stereo audio (red, white)
1 x RJ45 for Cat 5e/6 | | Temperature | Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C)
Humidity: Up to 95% (non-condensing) | | Enclosure | Fire retardant plastic | | Dimensions | 2.40 x 2.25 x 1" (6.1 x 5.7 x 2.54 cm) + 6" (15.24 cm) cable leads for video and stereo audio | | Weight | 3.1 oz (88 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.6 x 4.4 x 1.1" |
