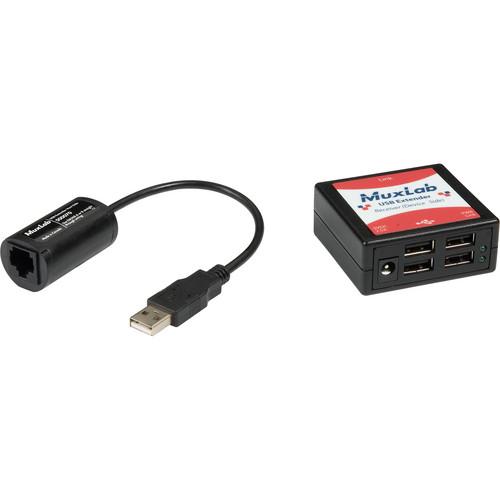

Product description The MuxLab USB 4-Port Extender Kit allows you to connect up to 4 USB 1.1 full speed or low speed devices to a USB host. Using Cat5E/6 cable, the kit extends transmission signals up to 150’ (46m) in a point-to-point connection, using a host adaptor and a transceiver. It offers plug-and-play operation and operates on a 500mA current from an external PSU. The extender can be installed in a rack or on wall or any surface and is ideal for use with multimedia, residential audio-video, webcam surveillance, keyboard/mouse, I/O device, printers, scanners, hard drives, flash drives, and MP3 players, credit card readers, and signature pads. - Allows you to connect up to 4 USB 1.1 full speed or low speed devices to a USB host
- Extends transmission signals up to 150' (46m) in a point-to-point connection
- Uses a host adaptor and a transceiver
- Offers plug-and-play operation
- Can be installed in a rack, on a wall, or any other surface
- Ideal for use with multimedia, residential audio-video, webcam surveillance, keyboard/mouse, I/O device, printers, scanners, hard drives, flash drives and MP3 players, credit card readers, and signature pads
- Requires 500mA current for operation
UPC: 627699000700 In the Box MuxLab USB 4-Port Extender Kit 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab USB 4-Port Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500070 Specs | Environment | USB 1.1 (full speed and low speed) | | Devices | keyboard, mouse, I/O devices, printers, webcam, scanners, hard drives, flash drives and mp3 players | | Transmission | Transparent to the user | | Speed | 12Mbps, 1.5 Mbps | | USB | 1.1 | | Connectors | Host side : 1 USB Type A receptacle, 1 RJ45 for link
Device side : 4 USB type A receptacles, 1 RJ45 for link, 1 PSU connector for optional 500 mA power | | Maximum Distance | 150' (46m) | | Cable | Category 5E/6 twisted pair cables required | | Power | Bus powered
110-240V/5VDC power supply with interchangeable US, UK and Euro blades
500 mA per port | | Power Consumption | 110-240V/5VDC/2.6A | | Temperature | Operating : 32 to 131º F (0 to 55º C)
Storage : -4 to 85º F (-20º to 85º C)
Humidity : up to 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Dimensions | Host side: 1.875 x 1.0" diameter plus 6" USB lead (4.76 x 2.54 dia plus 15.2cm)
Device side: 2.4 x 2.25 x 1.0" (6.1 x 5.5 x 2.5cm) | | Weight | 0.6 lbs (.3 kg) Total | | Mounting | Hook and loop pads included
Compatible with MuxLab rack, wall and surface mount accessories | | Compliance | FCC, CE, RoHS | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 10.0 x 7.9 x 1.6" |
