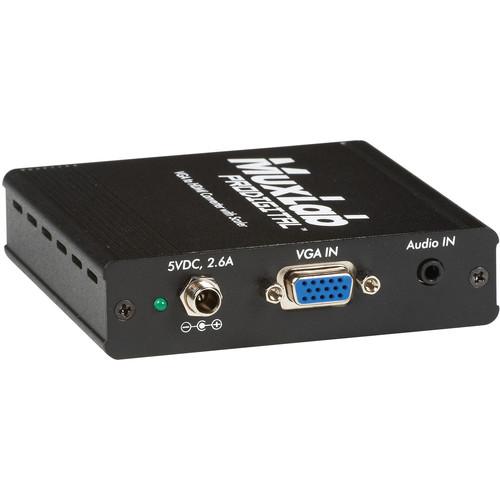

Product description The VGA to HDMI Converter with Scaler from MuxLab is a converter unit designed to scale analog video from a PC input source to a digital HDMI output over a wide-range of HD and PC resolutions up to 1080p or WUXGA. Besides video scaling, the device can convert analog stereo audio input to digital format and embed it to HDMI output as 2-Channel LPCM. This unit has a comprehensive resolution button that allows user to select a variety of output resolutions and adjust for best picture quality. - HDMI and DVI 1.0 Compliant
- Scales many PC resolutions to many HD or PC resolutions
- Solves odd VGA resolutions to display on a fixed HDMI panel
- Supports high resolution output
- PC resolutions supported: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, and WUXGA
- SD/HD resolutions supported: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
- Automatically detects the factory settings of the connected display and outputs the corresponding resolution and refresh rate, when the NATIVE resolution is selected
- Supports stereo analog input with PC video to HDMI output
- Supports firmware upgrading via USB
- Powered by local 5 VDC power supply with locking connector
- Aluminum enclosure designed for better cooling
UPC: 627699001493 In the Box MuxLab VGA to HDMI Converter with Scaler Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab VGA to HDMI Converter with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500149 Specs | Video Resolution | PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA
SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p | | Audio Bandwidth | 20 Hz to 20 kHz | | Audio Impedance | >10 ohms | | SNR | Audio: >70 dB @ 20 Hz to 20 kHz | | Signals | HDMI 1.3a protocol and HDCP | | Connectors | 1 x 15-pin Sub-D, VGA input
1 x 3.5mm phone jack, stereo audio input
1 x HDMI, output
1 x Mini USB, Service port
1 x 2.1mm DC barrel locking, power | | Power Supply | 1 x 110 - 240 VAC, 5 VDC power supply with interchangeable blades for use in the US, UK, Europe, and Australia | | LED | 1 x LED green, power | | Controls | 2 x Push-buttons, auto adjust and resolution | | Power Consumption | 4.6 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Enclosure | Metal | | Compliance | Regulatory: FCC, CE, RoHS | | Chassis Style | Ruggedized Aluminum Extrusion | | Dimensions | 4.02 x 4.02 x 0.98" (10.21 x 10.21 x 2.49 cm) | | Weight | 1.43 lb (0.65 kg) | | | | Package Weight | 1.31 lb | | Box Dimensions (LxWxH) | 10.0 x 5.35 x 2.35" |
