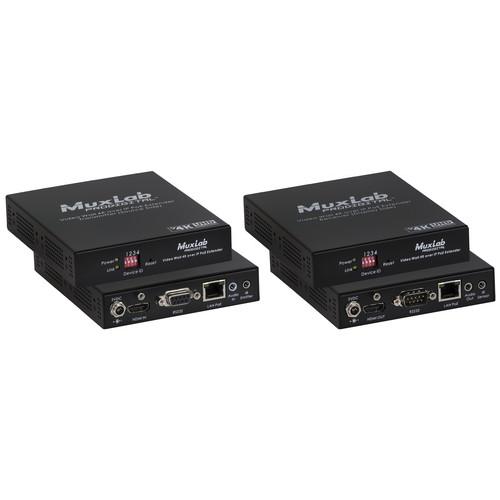

User Manual for MuxLab Video Wall 4K HDMI over IP PoE Transmitter & Receiver Kit Click to enlarge the picture
Contents of the user manual for the MuxLab Video Wall 4K HDMI over
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Video Wall 4K HDMI over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description Provided by third party: The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30 Hz or 1080p at 60 Hz resolution to be connected and extended to create a video wall of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one receiver for each display in the array. The transmitters and receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet switch.
- Key Features
-
- Configure a video wall array with 100's of displays, depending on network bandwidth
- Supports up to 4K @ 30 Hz and 1080p @ 60 Hz
- Visually lossless video (1 frame latency)
- Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
- Transmission up to 330 ft (100 m) over Cat5e/6
- Supports audio insert (TX) & audio extract (RX)
- Supports RS232 and IR transmission for remote control
- PoE powered
UPC: 627699007594 Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Video Wall 4K HDMI over IP PoE Transmitter & Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500759 Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | RS-232, HDMI, infrared | | Max Video Bandwidth | 300 MHz | | Max Transfer Distance | 328 ft | | Features | Power over Ethernet (PoE), 4K resolution support | | Compliant Standards | IEEE 802.3af | | | | Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female
1 x RS-232 - DB-9 male
1 x IrDA - mini jack female
2 x Ethernet 1000Base-T (PoE) - RJ-45 female
1 x audio (input) - mini jack female
1 x HDMI (output) - 19 pin HDMI Type A female
1 x RS-232 - DB-9 female
1 x audio (output) - mini jack female | | | | Compliant Standards | FCC, RoHS | | | | Power Over Ethernet (PoE) | PoE | | Power Device | External power adapter | | Installed Qty | 2 | | Max Supported Qty | 2 | | | | Width | 4.4 in | | Depth | 5.1 in | | Height | 1 in | | Weight | 23.98 oz | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 32
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
