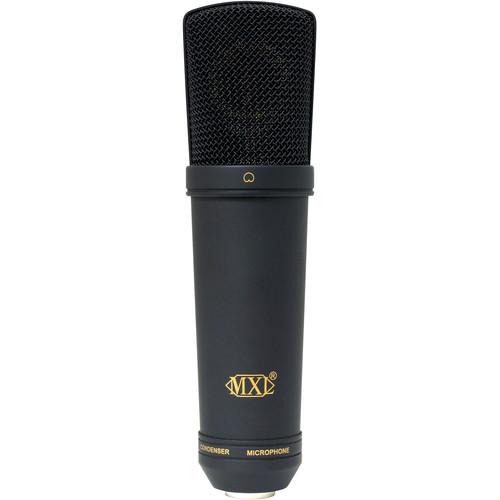

User Manual for MXL 2003A Large Capsule Condenser Microphone Click to enlarge the picture
Contents of the user manual for the MXL 2003A Large Capsule Condenser Microphone
- Product category: Large Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Large Diaphragm Condenser
|
User manual for the MXL 2003A Large Capsule Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|
Product description The black with black grill 2003A Large Capsule Condenser Microphone from MXL is suitable for studio or live applications, providing clarity, presence, and detail. It features a cardioid pickup pattern and a bass roll-off switch which reduces low-frequency noises and proximity effect. A switchable -10dB pad provides extra headroom when recording extremely loud sound sources, and the vintage-style capsule design provides a smooth and even frequency response. The transformerless output provides low-noise operation and the mic operates on standard 48V phantom power. The 2003A includes a high-isolation shockmount. - All-purpose microphone with a vintage-modeled capsule design
- Transformerless FET preamp for a smooth, even response
- Suitable realism for recordings of most instruments
- Bass roll-off and attenuator for most recording situations
- Can be used to record a variety of music styles
UPC: 801813131680 In the Box MXL 2003A Large Capsule Condenser Microphone (Black with Black Grill) MXL-56 High-Isolation Microphone Shock Mount rvcrassqfxyxuzuvuderecre Limited 3-Year Warranty User Manual PDF 526.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL 2003A Large Capsule Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL 2003A Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 83 dB A-Weighted | | Equivalent Noise Level | -11 dB A-Weighted | | Maximum SPL | 152 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | -42.9 dB | | | | Operating Current Consumption | 6.6 µA | | Operating Voltage | 48 V ± 4 V | | Length | 7.48" / 190 mm | | Diameter | 1.97" / 50 mm | | Weight | 1.0 lb / 0.45 kg | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 10.2 x 8.2 x 4.2" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
