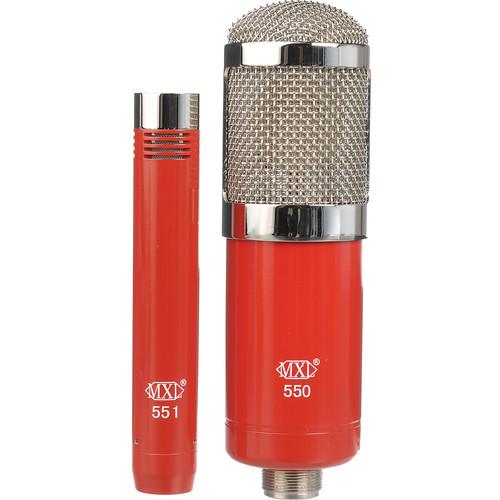

User Manual for MXL 550 551 Microphone Ensemble Kit Click to enlarge the picture
Contents of the user manual for the MXL 550 551 Microphone Ensemble Kit
- Product category: Large Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Large Diaphragm Condenser
|
User manual for the MXL 550 551 Microphone Ensemble Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|
Product description The red 550/551 Microphone Ensemble from MXL features two professional-quality microphones suitable for recording vocals and instruments. The 550 large-diaphragm mic is a robust vocal condenser mic and the 551 small-diaphragm mic can be used with a variety of instruments. Each mic has a pressure gradient condenser capsule with a cardioid pickup pattern for off-axis noise rejection. The mics also contain internal Mogami wiring for high-quality connections and a high SPL capability, allowing the mics to record loud sources without distortion. Each mic works through 48V of phantom power and has a wide frequency range of 30 Hz to 20 kHz. - Microphone pair for a wide range of recording situations
- Can be used together, one mic for vocals and one for instruments
- Fine-tuned to deliver additional clarity and detail
- FET preamp with balanced output and low noise
UPC: 801813134421 In the Box MXL 550/551 Microphone Ensemble Kit (Red) 550 Microphone 551 Microphone MXL-MT001 Hard Mount Mic Stand Adapter fbztftsd MXL H-03 Mic Stand Adapter Mount Cleaning Cloth Carrying Case Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL 550 551 Microphone Ensemble Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the MXL 550 551 Microphone Ensemble Kit can be downloaded in PDF format at the link stated below.
Technical parametersMXL 550/551 Specs | Transducer | Pressure Gradient Condenser | | Polar Pattern | Cardioid | | Frequency Response | 30Hz - 20kHz | | Sensitivity | 15mV/Pa | | Signal-to-Noise Ratio | 500: 80dB
551R: 78dB | | Max Input Sound Level (SPL) | 500: 130dB
551R: 137dB | | Power Requirements | 48V Phantom Power | | Output Impedance | 500: 200 Ohms
551R: 110 Ohms | | Output Connectors | 3-Pin XLR Male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 500: 6.69 x 1.85" (170 x 47mm)
551: 5.25 x 0.87" (134 x 22mm) | | Weight | 500: 0.8 lbs (363g)
551: 0.2 lbs (91g) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 11.8 x 7.4 x 3.6" |
