User Manual for MXL 603 PAIR Small-Diaphragm Cardioid Microphones Click to enlarge the picture
Contents of the user manual for the MXL 603 PAIR Small-Diaphragm Cardioid Microphones
- Product category: Small Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Small Diaphragm Condenser
 |
User manual for the MXL 603 PAIR Small-Diaphragm Cardioid Microphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

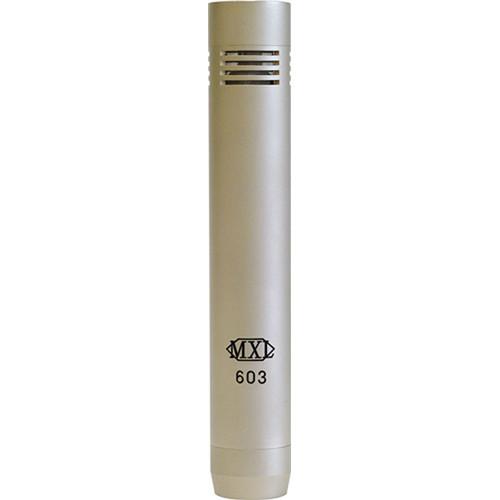

Product description The 603 PAIR from MXL is a stereo pair of microphones for instrument and vocal recording in project studios. The 603 features a wide-cardioid, small-diaphragm condenser element with a wide, flat frequency response. Its transformerless output stage improves the signal-to-noise ratio for a clearer output signal. The wide-cardioid polar pattern excels in capturing instruments and vocals with minimal residual noise and feedback. - Stereo Pair
- The stereo package provides a pair of 603 cardioid microphones for stereo recording of instruments such as percussion and piano.
- Mogami Internal Wiring
- These MXL mics are internally wired with Mogami cable for a low noise floor and pristine fidelity throughout.

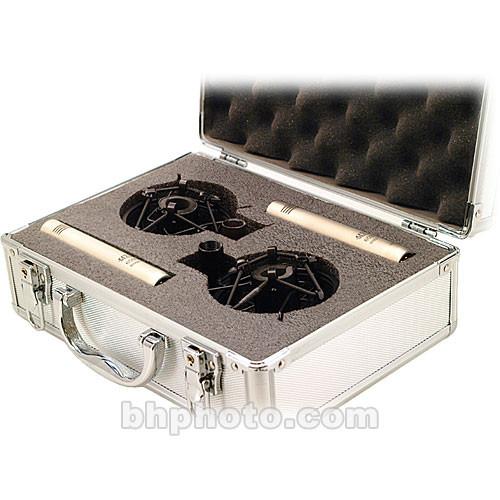

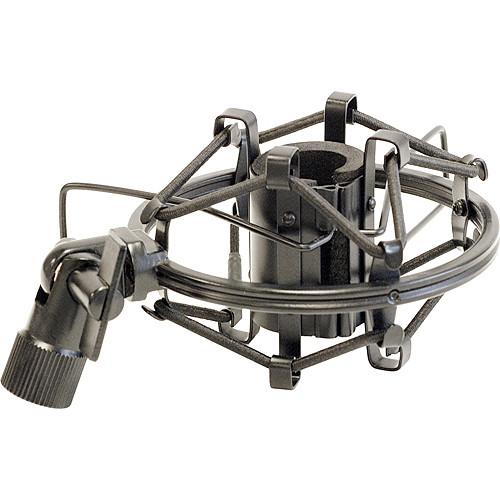

UPC: 801813093353 In the Box MXL 603 PAIR Small-Diaphragm Cardioid Microphones (Stereo Pair) 2 x High-Isolation Shockmounts Aluminum Flight Case Limited 3-Year Warranty User Manual PDF 23.2kbetcburfusxdbxqyqesdwtcevyyrcxqcccrwx Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL 603 PAIR Small-Diaphragm Cardioid Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL 603S Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.87" / 22 mm | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 134 dB SPL | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | 10 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3 mA | | Operating Voltage | 48 V ± 4 V | | Length | 5.31" / 135 mm | | Diameter | 0.87" / 22 mm | | Weight | 0.29 lb / 130 g | | | | Package Weight | 3.66 lb | | Box Dimensions (LxWxH) | 11.7 x 9.6 x 4.75" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
