User Manual for MXL 606 Small Diaphragm Instrument Microphone Click to enlarge the picture
Contents of the user manual for the MXL 606 Small Diaphragm Instrument Microphone
- Product category: Small Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Small Diaphragm Condenser
 |
User manual for the MXL 606 Small Diaphragm Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

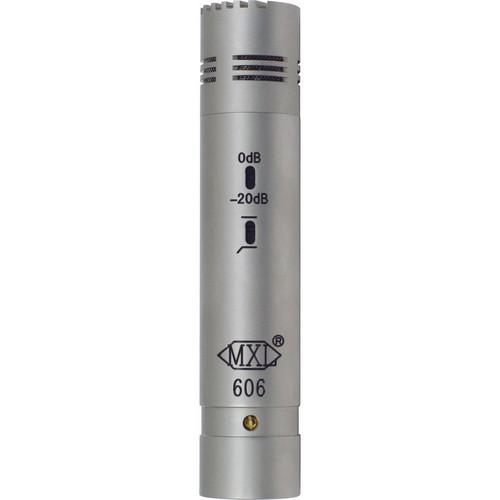

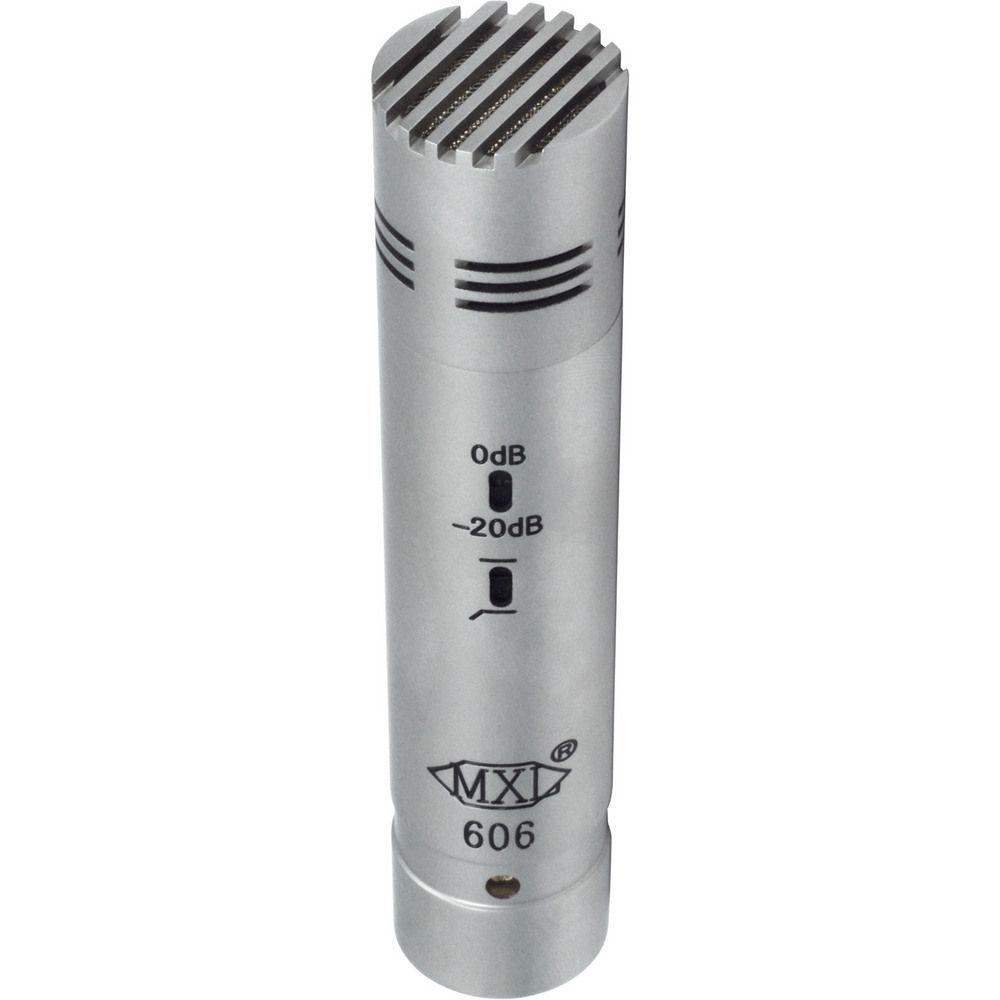

Product description The 606 Small Diaphragm Instrument Microphone from MXL is a microphone for capturing drums, cymbals, amplifier cabinets, and more. This versatile condenser microphone features a cardioid capsule, FET output stage, and a -20 dB pad switch for maximizing headroom and minimizing distortion noise. A high pass filter switch further minimizes low-frequency noise and hum. - Designed for snare drums, yet useful for all instruments
- -20 dB pad for higher SPL recording
- High-pass filter for removing unwanted low frequencies
- Extremely small footprint and easy to place

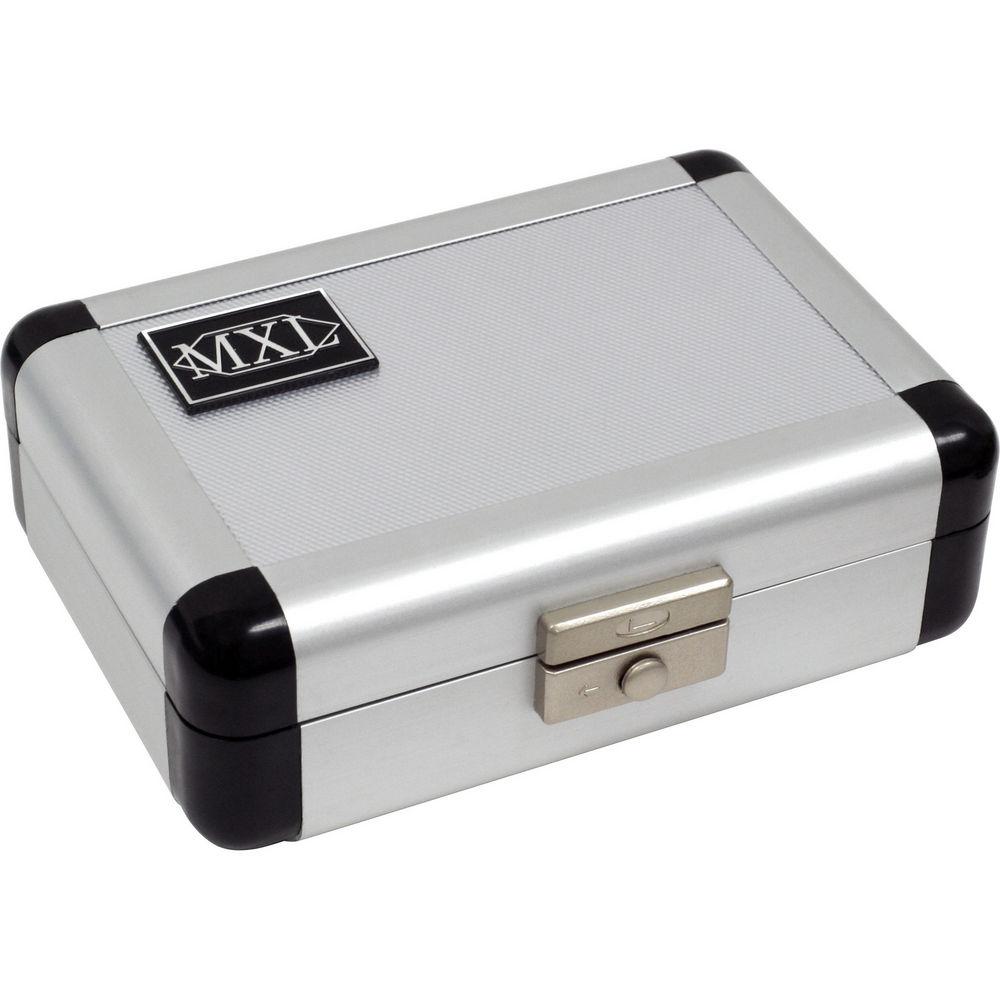

UPC: 801813149340 In the Box MXL 606 Small Diaphragm Instrument Microphone H-03 Hard Mount Mic Clip Aluminum Carrying Case Limited 3-Year Warranty User Manual PDF 120.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL 606 Small Diaphragm Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL 606 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 77 dB A-Weighted | | Equivalent Noise Level | 17 dB A-Weighted | | Maximum SPL | 137 dB SPL | | Pad | -20 dB | | THD | 0.5% | | Impedance | 150 Ohms | | Sensitivity | 15 mV/Pa | | | | Operating Voltage | 48 V ± 4 V | | Length | 4.3" / 109.22 mm | | Diameter | 0.89" / 22.61 mm | | Weight | 0.25 lb / 113 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 6.6 x 5.0 x 2.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
