User Manual for MXL 770 Small-Diaphragm Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the MXL 770 Small-Diaphragm Cardioid Condenser Microphone
- Product category: Small Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Small Diaphragm Condenser
 |
User manual for the MXL 770 Small-Diaphragm Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

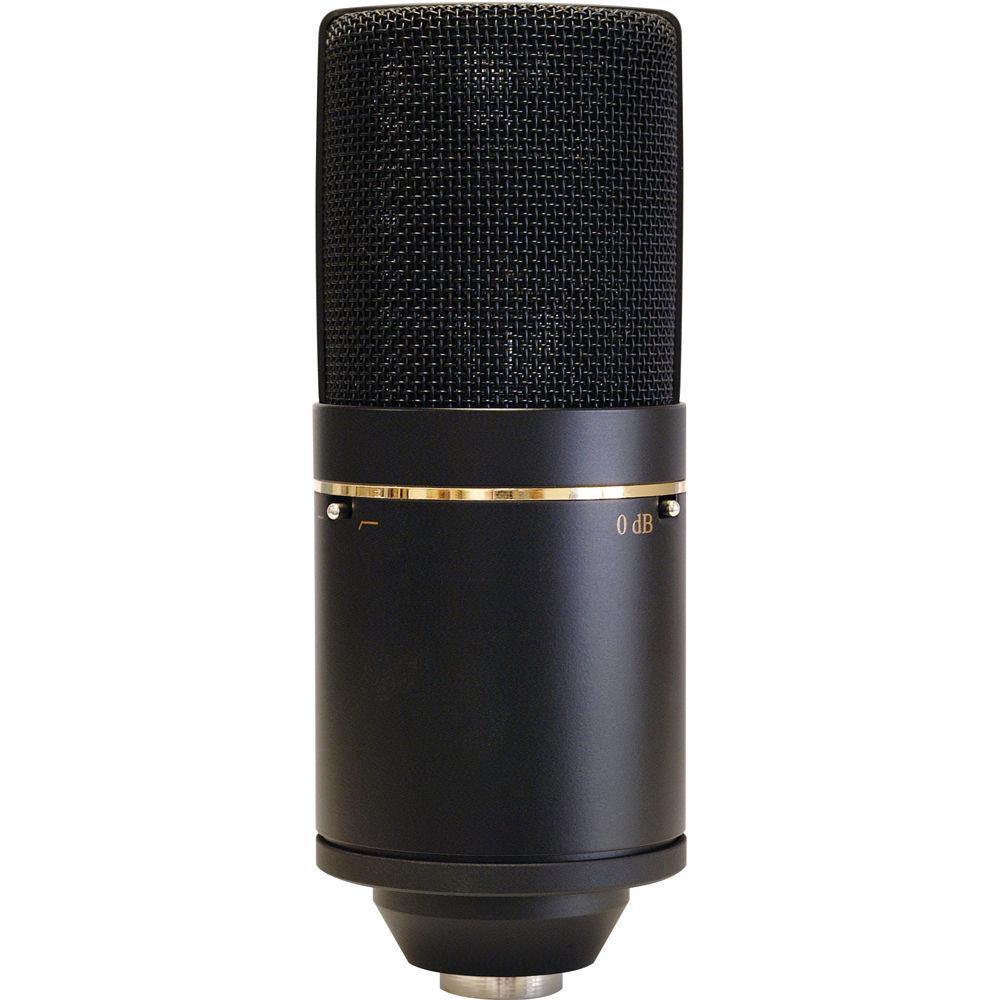

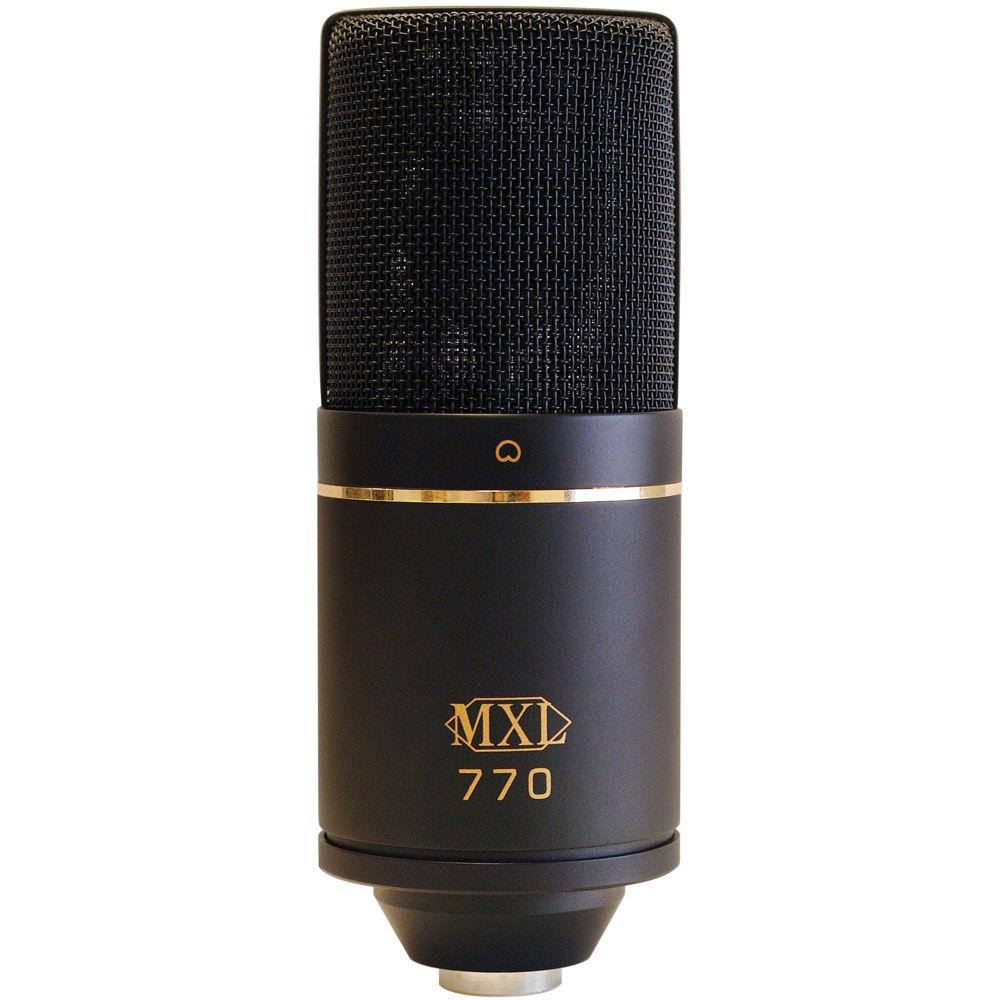

Product description The black 770 from MXL is a small-diaphragm studio condenser microphone with a cardioid polar pattern. The FET output electronics ensure low noise and high output gain. The 770 is suitable for single- and multi-voice recording, and also works well for capturing instruments such as pianos and strings. This microphone is a solid choice for experienced or new musicians who want a quality condenser mic. - Smooth Audio Reproduction
- The 770 features a flat frequency response and is ideal for accurate vocal reproduction.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes off-axis (side) audio and suppresses feedback.

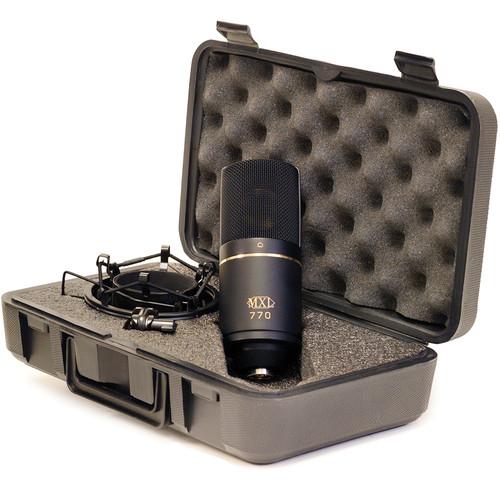

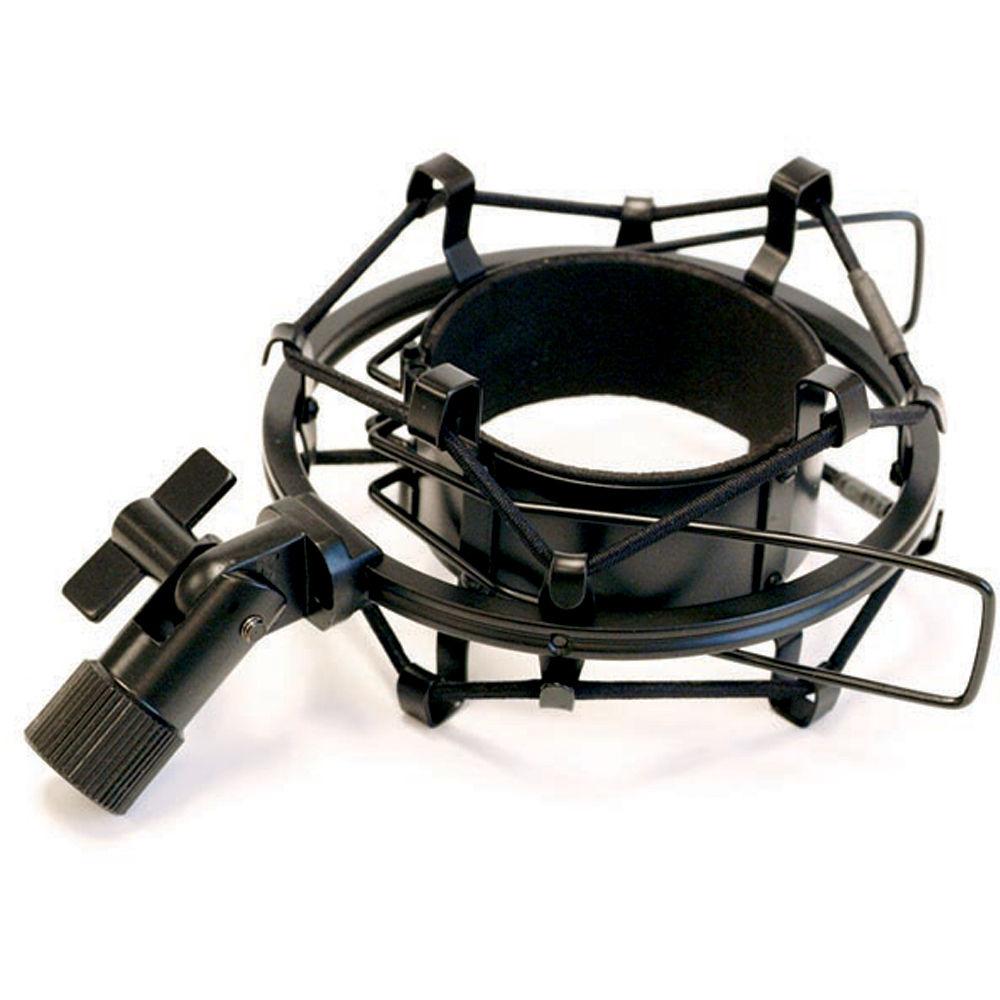

UPC: 801813086393 In the Box MXL 770 Small-Diaphragm Cardioid Condenser Microphone (Black) High-Isolation Shockmount Rugged Carrying Case Limited 1-Year Warranty User Manual PDF 55.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL 770 Small-Diaphragm Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL 770 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.87" / 22.10 mm | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 74 dB A-Weighted | | Equivalent Noise Level | 20 dB A-Weighted | | Maximum SPL | 137 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 150 Ohms | | Sensitivity | 15 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V ± 4 V | | Length | 6.22" / 158 mm | | Diameter | 2.32" / 59 mm | | Weight | 1 lb / 0.45 kg | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 11.9 x 7.6 x 3.6" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
