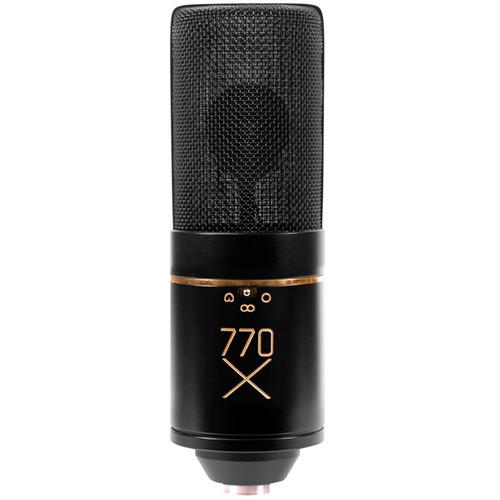

User Manual for MXL 770X Multi-Pattern Vocal Condenser Microphone Package Click to enlarge the picture
Contents of the user manual for the MXL 770X Multi-Pattern Vocal Condenser Microphone
- Product category: Large Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Large Diaphragm Condenser
|
User manual for the MXL 770X Multi-Pattern Vocal Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|
Product description New MXL Microphones: 770X and DX-2 Read More The 770X Multi-Pattern Vocal Condenser Microphone Package from MXL includes a 770X large-diaphragm condenser microphone, a shockmount with integrated pop filter, a 20' XLR mic cable, and a microfiber cleaning cloth. The 770X microphone features a dual-diaphragm capsule with three selectable patterns—cardioid, figure-8, omnidirectional—which let you adjust what the mic picks up and rejects. The mic's 1.26" gold-sputtered diaphragm is capable of handling SPL up to 140 dB to accurately capture loud signals without distorting, and it delivers a clear, detailed sound with warm low end, ideal for recording vocal and instruments in home studios or professional facilities. - Pressure-gradient, multi-pattern condenser microphone for vocals, instruments, and room sound
- Three selectable polar patterns: cardioid, figure-8, omnidirectional
- 1.26" gold-sputtered diaphragm for enhanced dynamic range
- Clear and detailed high frequencies, balanced with warm low end
- 140 dB maximum SPL allows microphone to accurately capture loud signals without distorting
- Attenuation switch: 0 & -10 dB
- Black metal finish with black grille
- Includes shockmount with integrated pop-filter
- Includes XLR microphone cable (20')
- Includes microfiber cleaning cloth
UPC: 801813183474 In the Box MXL 770X Multi-Pattern Vocal Condenser Microphone Package Shockmount with Integrated Pop Filter XLR Microphone Cable (20') Microfiber Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL 770X Multi-Pattern Vocal Condenser Microphone Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL 770X Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.26" / 32.00 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | -35 dB | | | | Cable Length | 20' / 6.10 m | | Operating Voltage | 48 V ± 4 V | | Length | 7.28" / 184.91 mm | | Diameter | 2.36" / 59.94 mm | | Weight | 1.1 lb / 499 g | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 10.9 x 8.5 x 7.3" |
