User Manual for MXL AC-404-LED USB Boundary Microphone with Color-Changing LED Base Click to enlarge the picture
Contents of the user manual for the MXL AC-404-LED USB Boundary Microphone with
- Product category: USB Microphones MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL USB Microphones
 |
User manual for the MXL AC-404-LED USB Boundary Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

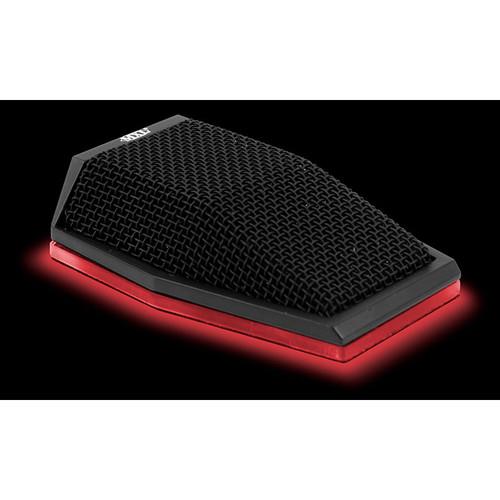

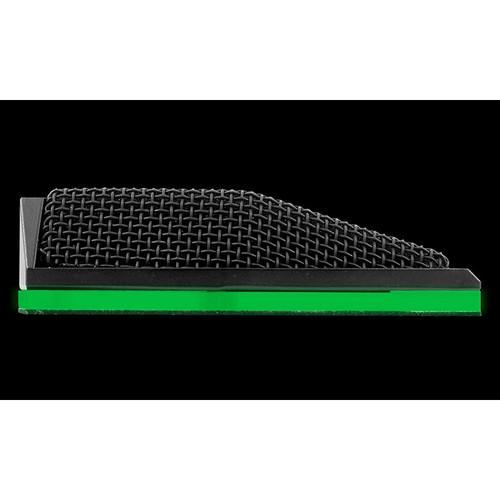

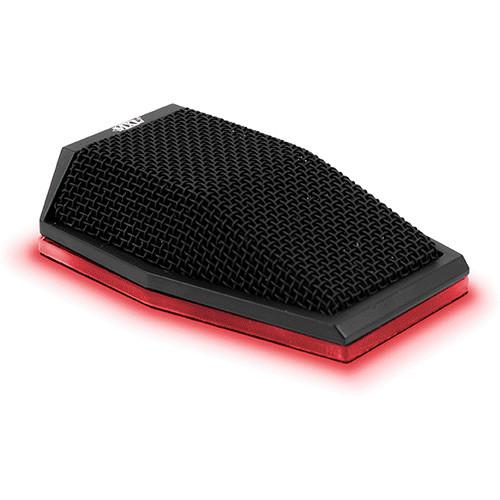

Product description The MXL AC-404-LED is a USB boundary microphone designed to deliver broad sound pick-up and customizable color identification for groups of people in conferences, meetings, podcasts, and gaming environments. Its three-capsule boundary design yields 180° of coverage and a 25' maximum range. Internal A/D conversion takes place at up to 16-bit/48 kHz resolution and negates the need for an external converter.Plug-in your headphones to the 1/8" headphone output for effortless monitoring. Power the sturdy metal-bodied mic via a USB connection with the supplied USB cable to your computer running macOS or Windows. Personalize the appearance of the AC-404-LED microphone by choosing one of the eight color modes for the LED base. - Ideal for conferencing and meetings
- 3-capsule design yields wide polar pattern with 180° of coverage and a maximum range of 25'

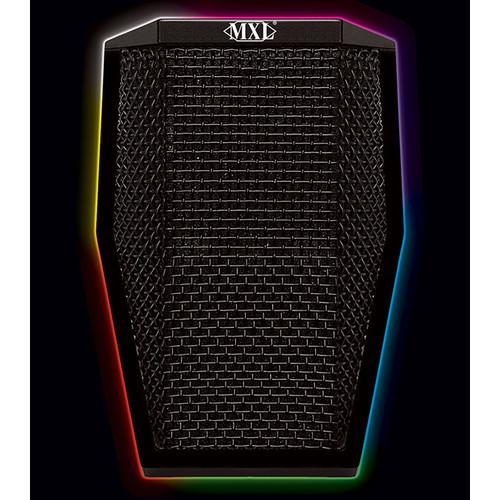

- LED base offers eight preset color modes—white, yellow, red, green, blue, purple, magenta, and auto-blend
- Easy USB connectivity and no driver installation required for use with Mac and Windows

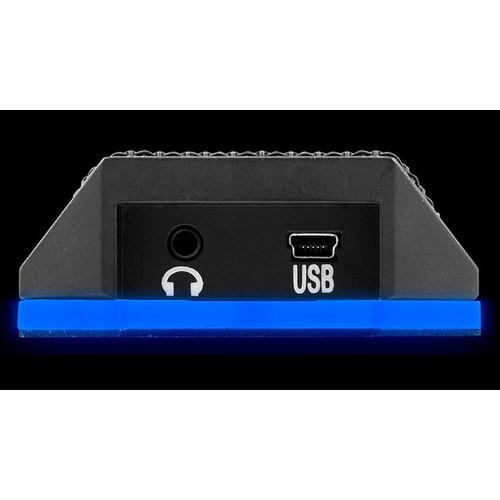

- 1/8" headphone output allows simple monitoring
- Supports USB 1.1 and USB 2.0 standards and connects to USB 1.1/2.0/3.0 ports
UPC: 801813188684 In the Box MXL AC-404-LED USB Boundary Microphone with Color-Changing LED Base USB Cable Mini Philips Screwdriver Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL AC-404-LED USB Boundary Microphone with Color-Changing LED Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL AC-404 LED Specs | | | Tube | No | | Polar Pattern | Hemispherical/Half-Omnidirectional | | Frequency Range | 40 Hz to 16 kHz | | Pad | None | | THD | 0.01% | | Low-Cut Filter | None | | | | Bit Depth | 16-Bit | | Sample Rate | 44.1 kHz
48 kHz | | Operating System Support | Windows, macOS/OS X | | Available Port | USB (Interface Unspecified), USB 2.0, USB 3.0 | | | | Output Connectors | 1 x Micro-USB | | Headphone Connector | 1 x 1/8" (3.5 mm) | | Length | 4.29" / 109 mm | | Diameter | 2.95" / 75 mm | | Weight | 1 lb / 454 g | | | | Package Weight | 0.86 lb | | Box Dimensions (LxWxH) | 10.15 x 4.2 x 2.15" |
