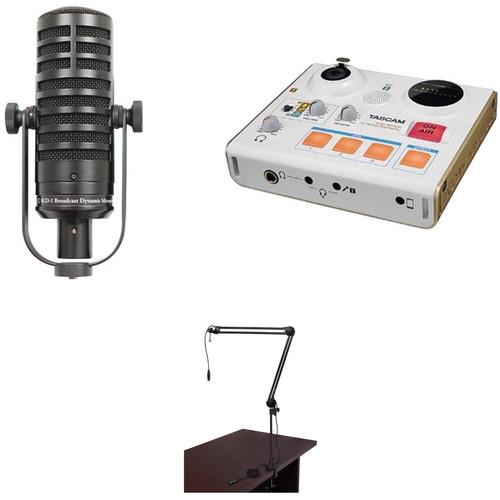

User Manual for MXL BCD-1 Live Broadcast Mic and Tascam US-32 Interface Broadcast Kit

• Product category: Dynamic Microphones MXL
• Brand: MXL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for MXL Dynamic Microphones

Product description

• MXL BCD-1 Live Broadcast Dynamic Microphone (Black) The black BCBD-1 Live Broadcast Dynamic Microphone from MXL is an end address, professional microphone with a cardioid polar pattern that is designed for radio broadcasts, voice overs, podcasts, announcers, and more. It delivers a warm, rich tone making vocals stand out in any performance or recording. The BCD-1 features a built-in shockmount that prevents unwanted noise and vibration. The flexible BCD-1 includes a windscreen and a swivel mount that allows for perfect positioning on any mic stand.
  • High-quality dynamic mic built for broadcast and voice-over productions
  • Excellent side rejection
  • 3 selectable roll-off switches to help pinpoint precision sound
  • Built-in isolation shockmount
  UPC: 801813150322
• Tascam MiNiSTUDIO Personal US-32 Audio Interface for Online Broadcasts Designed for personal and aspiring broadcasters and gamecasters (i.e. those who broadcast their gaming prowess over the web), the Tascam MiNiSTUDIO Personal US-32 is a high-speed USB 2.0 interface. It's capable of capturing 24-bit/96 kHz audio, compatible with Mac and Windows computers, works with most DAW software, and can even interface with iOS devices using an adapter (available separately). With its intuitive layout and various inputs for recording the human voice, it's suitable for those looking to get into podcasting, gamecasting, and broadcasting—though its included software and high-resolution digital capacity renders it useful for all levels of broadcasters as well.

  For inputs, the US-32 sports a combination XLR/TRS input, a 3.5mm jack suitable for headset mics, and an auxiliary 3.5mm stereo input most agreeable for looping in the signal of consumer-grade audio equipment. A built-in omnidirectional condenser mic bypasses the need for extrinsic microphones, should you wish to speak directly into the interface. The unit provides two headphone outputs—one 1/4", one 3.5mm—as well as 48V phantom power for condenser microphones and support for 4-pole headphone/mic configurations.
  Hardware Components
  • The US-32 features an efficient hardware layout that clearly displays its various features. Glancing at the tabletop interface, you'll see the combo XLR / 1/4" jack on the left, the built-in microphone in the center, and a sizable level meter to monitor the incoming signal. The reverb-blend knob sits prominently between the input-selector switch and on-air button, which commences transmission to your computer or device.

    The lower portion of the interface clearly shows its output knob, three pads for triggering on-board sound effects, and an effect on/off pad. Thus, while creating your personal broadcast, you'll have the tools you need to keep the show running at your fingertips.
  Included Software
  • This device comes with software for better utilizing the hardware component of the US-32. The software features two panels, giving you an Easy view into the system and an Expert peak behind the curtain, so to speak.

    The Easy panel breaks down your options for manipulating signal into three overarching categories: Sound (presets for your particular sonic setup), Effect (presets for manipulating your vocals upon pressing the effect on/off pad), and Reverb (types of ambiance with which you can effect your vocal). Beneath these knobs, you can assign the sounds of the trigger pads, and set their volume as well.

    The Expert panel, on the other hand, gives you comprehensive controls of the US-32's compressor, equalizer, and reverb. In this panel, you also have control over buffer size, as well as the ability to manipulate the trigger pad's settings further; for example, you can set the rate of fade-in and fade-out for the sample being triggered.
  Notable Features at a Glance
  • • XLR/TRS input jack for balanced inputs
    • 48V phantom-power support for condenser microphones
    • 3.5mm input for headset microphones
    • Supports connection of 4-pole earphone with mic
    • 3.5mm stereo aux input for connecting portable audio players, game devices, etc.
    • Built-in omnidirectional condenser mic
    • Support for low-level dynamic-mic input signals
    • On-board DSP effects, including equalizer, compressor, several types of reverb, and special vocal effects
    • Input monitoring allows you to hear incoming signal before it's transmitted
    • 3 self-lighting, velocity-sensitive trigger pads
    • Reverb knob allows you to manually adjust amount of wet signal
    • Voice Effect on/off button
    • Clearly labeled "ON AIR" button to start transmission to your computer
    • 3.5mm stereo headphone jack
    • 1/4" headphone output
  UPC: 043774032402
• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

  The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  XLR Cable
  • The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578272

• BCD-1 Live Broadcast Dynamic Microphone (Black) xtartffqwywr
• WS002 Windscreen
• Limited 1-Year Warranty

• Tascam - MiNiSTUDIO Personal US-32 Audio Interface for Online Broadcasts

• Auray - BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MXL BCD-1 Live Broadcast Dynamic Microphone (Black)

  Sound Field	Mono
  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	40 Hz to 15 kHz
  Impedance	600 Ohms
  Sensitivity	54 dBV/Pa

  Output Connectors	1 x 3-Pin XLR
  Length	6.20" / 157.5 mm
  Diameter	2.00" / 50.8 mm
  Weight	1.25 lb / 567 g

  Box Dimensions (LxWxH)	11.8 x 7.5 x 3.8"

• Tascam MiNiSTUDIO Personal US-32 Audio Interface for Online Broadcasts

  Max Sample Rate/Resolution	96 kHz / 24-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	1 x Combo XLR / 1/4" TRS Input 1 x 1/8" (3.5 mm) TRS Input 1 x 1/8" (3.5 mm) TRS Aux Input 1 x 1/4" (6.3 mm) TRS Headphone Output 1 x 1/8" (3.5 mm) TRS Headphone Output
  Digital I/O	None
  MIDI I/O	None

  Sample Rates	Up to 96 kHz
  Bit Depth	Up to 24-Bit

  OS Compatibility	iOS iOS compatible with Apple Lightning-USB camera adapter (available separately).

  Box Dimensions (LxWxH)	8.7 x 6.7 x 4.0"

• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	XLR M to XLR F: 15' (457.2 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.5"
