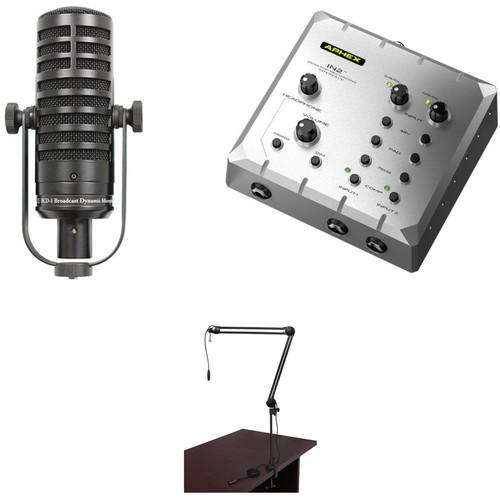

User Manual for MXL BCD-1 Live Broadcast Mic with Aphex Interface and Recording Kit

• Product category: Dynamic Microphones MXL
• Brand: MXL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for MXL Dynamic Microphones

Product description

• MXL BCD-1 Live Broadcast Dynamic Microphone (Black) The black BCBD-1 Live Broadcast Dynamic Microphone from MXL is an end address, professional microphone with a cardioid polar pattern that is designed for radio broadcasts, voice overs, podcasts, announcers, and more. It delivers a warm, rich tone making vocals stand out in any performance or recording. The BCD-1 features a built-in shockmount that prevents unwanted noise and vibration. The flexible BCD-1 includes a windscreen and a swivel mount that allows for perfect positioning on any mic stand.
  • High-quality dynamic mic built for broadcast and voice-over productions
  • Excellent side rejection
  • 3 selectable roll-off switches to help pinpoint precision sound
  • Built-in isolation shockmount
  UPC: 801813150322
• Aphex In2 Desktop USB Recording Interface The In2 Desktop USB Recording Interface from Aphex is a USB audio interface that is capable of up to 24-bit/192kHz conversion. It features two channels with Aphex class A mic preamps and Aphex optical compressors with LED indicators. Each channel also features a 75Hz high pass filter for cutting low frequencies, a 20dB pad, and assignable 48-volt phantom power. The In2 has channel independent input level control as well as a dedicated output level control knob with Dim and Mono buttons. All of the controls are located on its front panel for quick access.

  The In2 provides a variety of input and output options, including two rear-panel XLR inputs and two front-panel 1/4" instrument inputs. Its outputs include dual 1/4" TRS outputs as well as a 1/4" headphone output. Its headphone output is powered by a built-in headphone amplifier taken directly from Aphex's Headpod4 amplifier. The In2 also has S/PDIF digital audio input and output as well as two 5-pin Din MIDI connectors. It features multi-colored LEDs that display level and peak. The In2 unit is powered by a 12-volt external power supply. UPC: 693714914215
• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

  The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  XLR Cable
  • The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578272

• BCD-1 Live Broadcast Dynamic Microphone (Black) asqdtuubvebxbytzxdrqeerzs
• WS002 Windscreen
• Limited 1-Year Warranty

• Aphex - In2 Desktop USB Recording Interface

• Auray - BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MXL BCD-1 Live Broadcast Dynamic Microphone (Black)

  Sound Field	Mono
  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	40 Hz to 15 kHz
  Impedance	600 Ohms
  Sensitivity	54 dBV/Pa

  Output Connectors	1 x 3-Pin XLR
  Length	6.20" / 157.5 mm
  Diameter	2.00" / 50.8 mm
  Weight	1.25 lb / 567 g

  Box Dimensions (LxWxH)	11.8 x 7.5 x 3.8"

• Aphex In2 Desktop USB Recording Interface

  Max Sample Rate/Resolution	192 kHz / 24-Bit

  Host Connection	USB Type-B (USB 1.0)
  Analog I/O	2 x XLR 3-Pin Input 2 x 1/4" (6.3 mm) Hi-Z Input 2 x 1/4" (6.3 mm) TRS Balanced Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Phantom Power	+48 V (Selectable on Individual Inputs)
  Digital I/O	1 x RCA Coaxial / S/PDIF Input 1 x RCA Coaxial / S/PDIF Output
  MIDI I/O	1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out

  Sample Rates	192 kHz (AD/DA Conversion)
  Bit Depth	24-Bit

  OS Compatibility	macOS 10 Windows XP Windows Vista Windows 7

  AC/DC Power Adapter	12 V (Included)

  Box Dimensions (LxWxH)	10.5 x 8.6 x 3.5"

• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	XLR M to XLR F: 15' (457.2 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.5"
