User Manual for MXL CR20 Versatile Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the MXL CR20 Versatile Cardioid Condenser Microphone
- Product category: Large Diaphragm Condenser MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Large Diaphragm Condenser
 |
User manual for the MXL CR20 Versatile Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

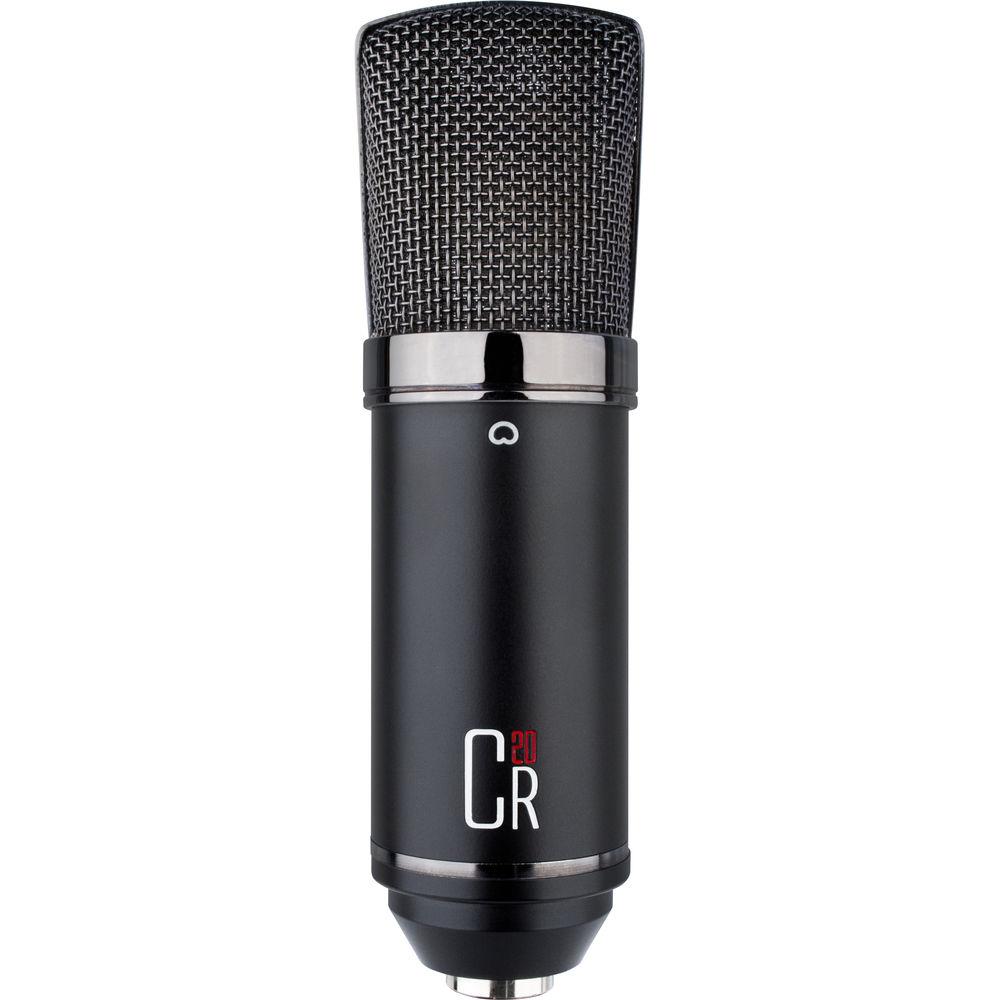

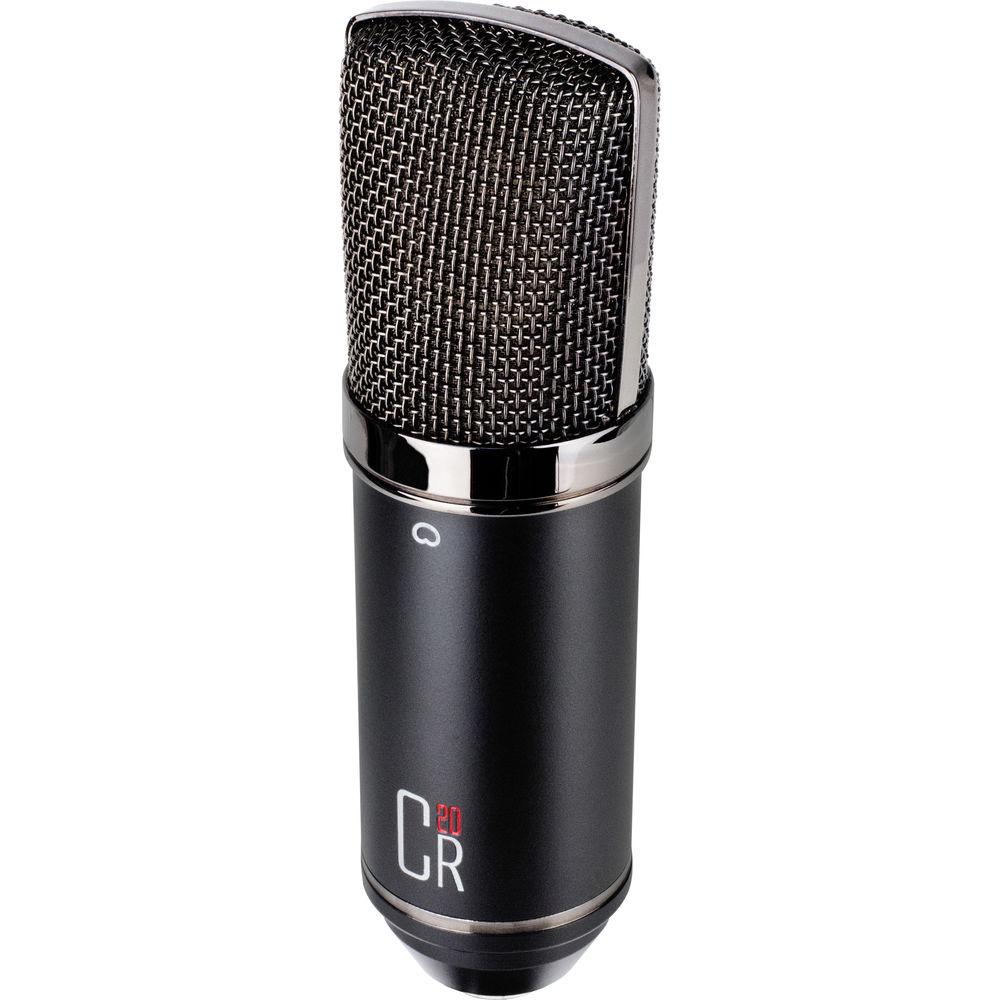

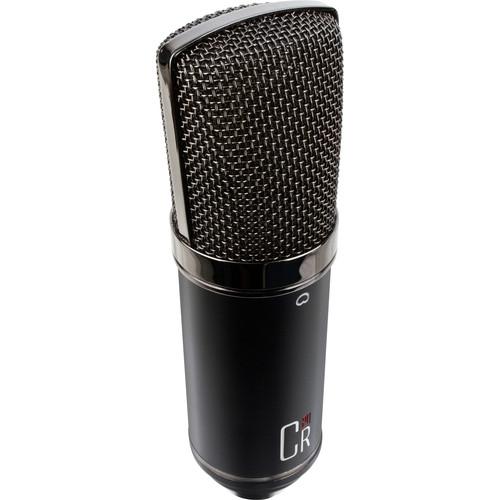

Product description The black CR20 Versatile Cardioid Condenser Microphone from MXL features a 22mm capsule with a gold-sputtered diaphragm and a fixed cardioid pickup pattern. This condenser microphone has a tube-emulation switch and can be used to capture audio for vocal and instrument applications. At the flip of a switch, the sonic characteristic of the MXL CR20 instantly changes from crisp and clear with detailed high-end to warm and balanced with a rich bottom-end, which produces a tone similar to that of a vintage tube microphone. Two layers of alloy mesh shield the sensitive, condenser capsule from moisture and vocal plosives. Additionally, the microphone is 48V phantom-powered and is built with an XLR connector. The CR20 includes a standard hard-mount mic stand adapter and microfiber cleaning cloth, and it's packed in an impact-resistant foam, which is housed in a rugged hard plastic case. UPC: 801813170535 In the Box MXL CR20 Versatile Cardioid Condenser Microphone (Black) MXL-MT001 Hard Mount Mic Stand Adapter tuyxtqabyyfvazbbufrwxe Rugged Carrying Case Microfiber Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL CR20 Versatile Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL CR20 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.87" / 22 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 145 dB SPL RMS | | Impedance | 200 Ohms | | Sensitivity | 38 dB | | | | Operating Current Consumption | 5.5 mA | | Length | 7.01" / 178 mm | | Diameter | 1.97" / 50 mm | | Weight | 0.70 lb / 320 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 11.12 x 7.6 x 3.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
