User Manual for MXL FR-355K Lavalier Interview Microphone Kit Click to enlarge the picture
Contents of the user manual for the MXL FR-355K Lavalier Interview Microphone Kit
- Product category: Lavalier Microphones MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Lavalier Microphones
|
User manual for the MXL FR-355K Lavalier Interview Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

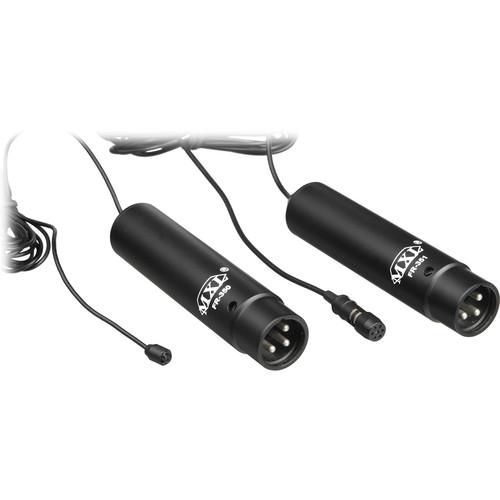

Product description Essential Guide on How to Mic Talent for Video Read More wruwdqfvybbxzayzfbxwfbxuveyssybu The MXL FR-355K Lavalier Kit is a pair of lavalier microphones, one with a cardioid and one with an omnidirectional polar pattern. It is intended to provide the user with options for interviews, instrument capturing, presentations and other applications.The cardioid pattern microphone yields a generous pickup area while maintaining adequate feedback and noise rejection at the off-axis section of the capsule. The omnidirectional polar pattern microphone provides a uniform frequency response at the direct and off-axis sections of the capsule, and is noted to reject clothing, contact and handling noise more efficiently.The lavalier pair of mics both require phantom power, feature XLR output connectors and include a windscreen and clothing clip. The modestly priced kit is an ideal solution for in studio interviews, instrument capturing and more. - Omnidirectional Polar Pattern
- The lavalier mic with the omnidirectional polar pattern provides a uniform frequency response at the direct and off-axis sections of the capsule, and is noted to reject clothing, contact and handling noise more efficiently.
- Cardioid Polar Pattern
- The lavalier mic with the cardioid pattern yields a generous pickup area while maintaining adequate feedback and noise rejection at the off-axis section of the capsule.
UPC: 801813125771 In the Box MXL FR-355K Lavalier Interview Microphone Kit 2 x Windscreens 2 x Microphone Clips 1 Year Warranty User Manual PDF 135.7kbwruwdqfvybbxzayzfbxwfbxuveyssybu Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL FR-355K Lavalier Interview Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL FR-355K Specs | Transducer | Back Electret Condenser | | Polar Pattern | Omnidirectional and Cardioid | | Frequency Response | 30Hz - 18kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | Not Specified By Manufacturer | | Maximum Input Sound Level | 120dB | | Power Requirements | 48V +/- 4V | | Output Impedance | 200 ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | Microphone: 1.18 x 0.5"
Cable Length: 6' (1.82m) | | Weight | 2.4 oz (68g) | | | | Package Weight | 0.585 lb | | Box Dimensions (LxWxH) | 8.8 x 7.3 x 2.75" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
