User Manual for MXL Genesis FET HE Heritage Edition Solid-State Condenser Microphone Click to enlarge the picture
Contents of the user manual for the MXL Genesis FET HE Heritage Edition
- Product category: Tube Microphones MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Tube Microphones
 |
User manual for the MXL Genesis FET HE Heritage Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

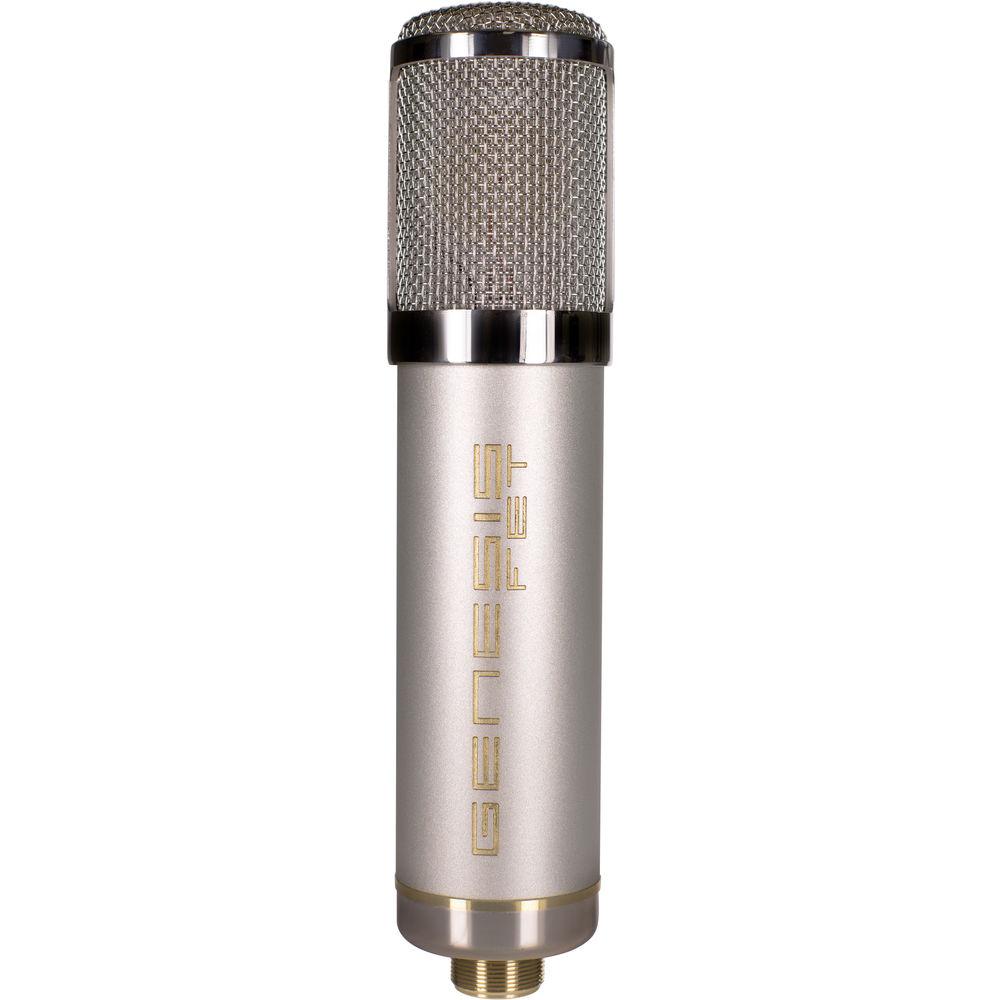

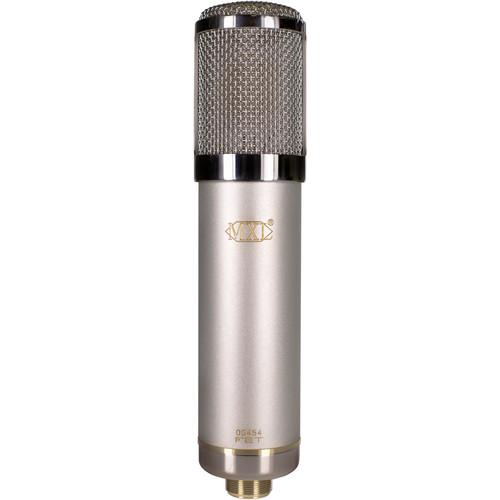

Product description The Genesis FET HE from MXL is a cardioid, large-diaphragm condenser microphone designed for recording vocals and instruments in commercial and project studios. It is the solid-state version of the original MXL Genesis tube condenser microphone.Its cardioid polar pattern maximizes sound rejection from the rear of the mic, providing a directional focus that reduces room reflections in the recording. Its 20 Hz - 20 kHz frequency response ensures full-range transducing of a wide variety of sound sources. The mic features a 32mm capsule with a 6-micron, gold-sputtered diaphragm, and it can handle a high maximum SPL of 140 dB. Low-noise FET circuitry, phantom-power compliance, and an XLR output make it ready for use in the studio.The supplied shockmount decouples the mic from a stand, reducing the pickup of rumble. Also included with the Genesis FET HE is a metal mesh pop filter, ideal for minimizing plosives during vocal recording sessions. The provided aluminum flight case ensures the mic's safety during storage or transport. -
- Solid-state, phantom-powered condenser microphone
- Low-noise FET circuitry
- Cardioid polar pattern
- 6-micron, gold-sputtered diaphragm
- Large 32mm capsule
- 20 Hz - 20 kHz frequency response
- 140 dB maximum SPL
- Wide 127 dB dynamic range
- Includes shockmount and metal mesh pop filter
- Aluminum flight case
- Microfiber cleaning cloth included

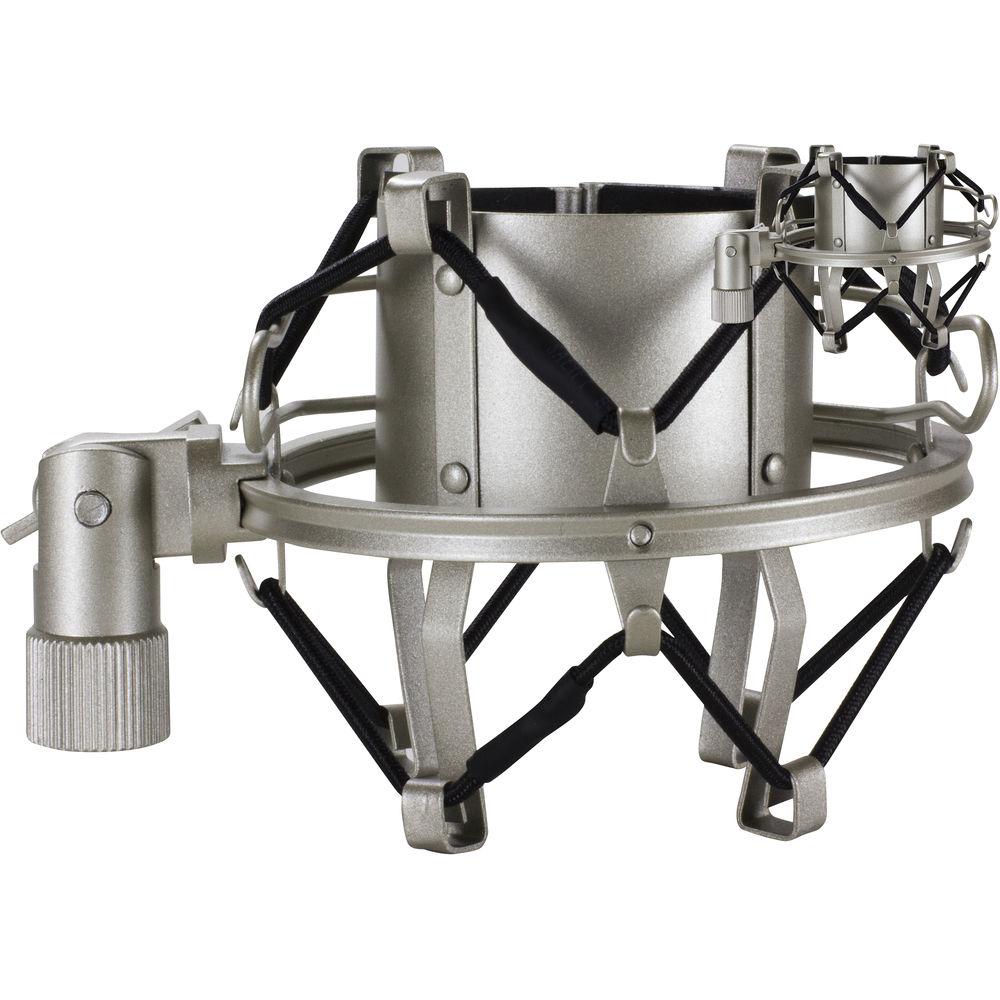

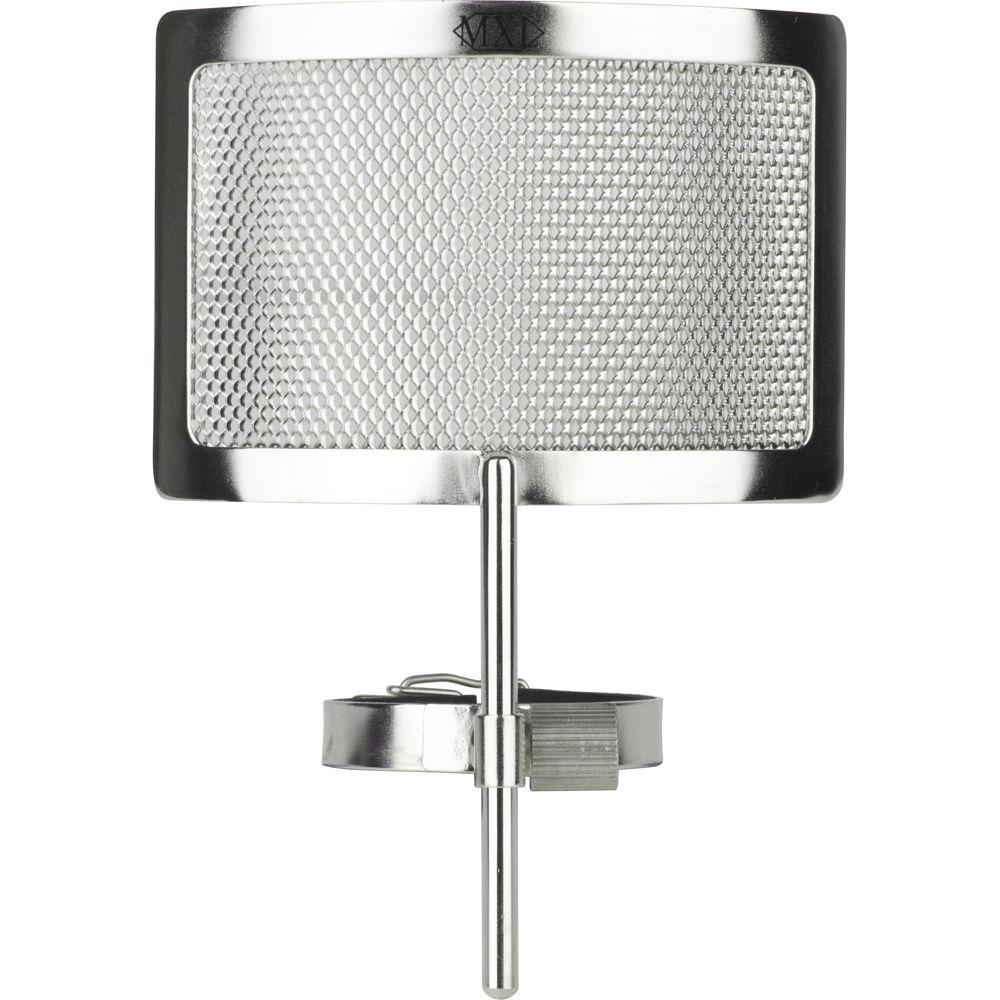

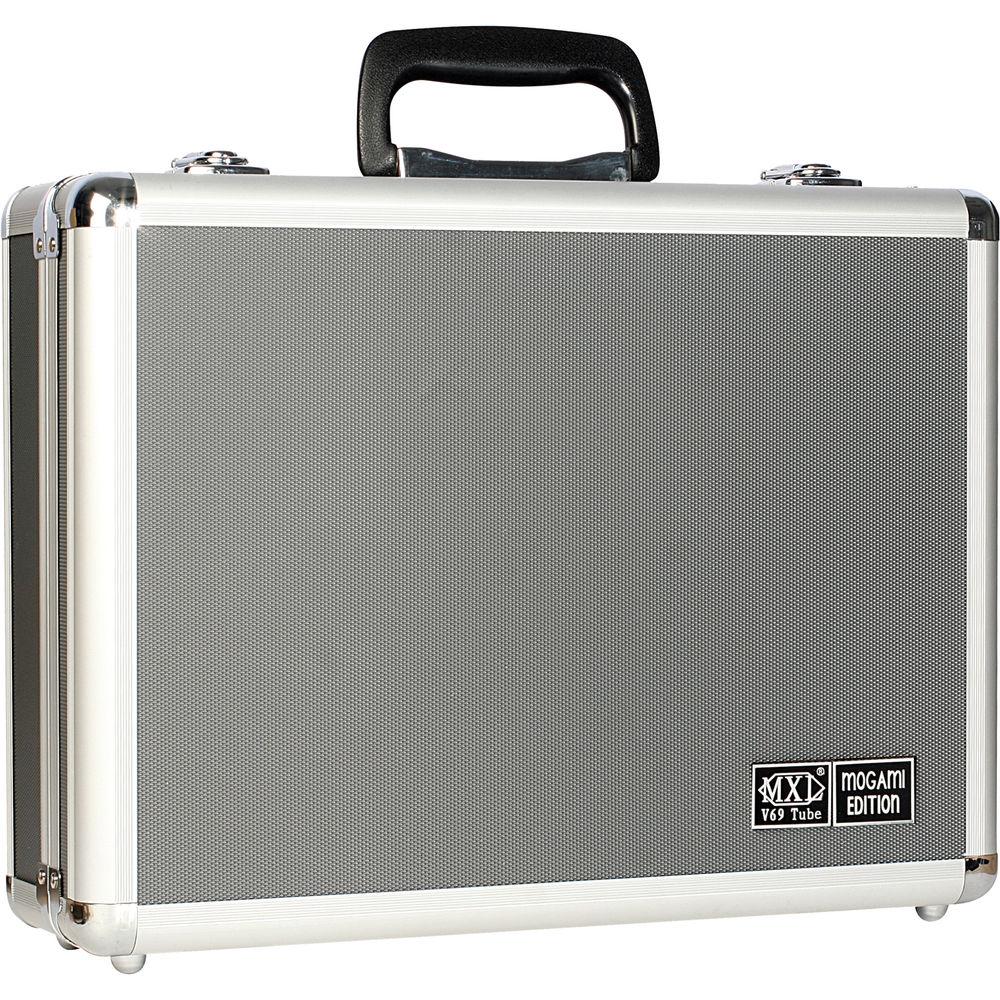

UPC: 801813177954 In the Box MXL Genesis FET HE Heritage Edition Solid-State Condenser Microphone MXL-57-Silver High-Isolation Microphone Shock Mount (Silver) PF-004-SS Metal Mesh Pop Filter for Genesis Microphones (Chrome) Microfiber Cleaning Cloth Aluminum Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL Genesis FET HE Heritage Edition Solid-State Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL Genesis FET HE Specs | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.26" / 32 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 81 dB A-Weighted | | Equivalent Noise Level | Cardioid: 13 dB A-Weighted | | Maximum SPL | Cardioid: 140 dB SPL | | Pad | None | | Impedance | Cardioid: 150 Ohms | | Sensitivity | Cardioid: -30 dB | | Low-Cut Filter | None | | Dynamic Range | Cardioid: 127 dB | | | | Length | 8.86" / 225 mm | | Diameter | 1.85" / 47 mm | | Weight | 0.95 lb / 431 g |
