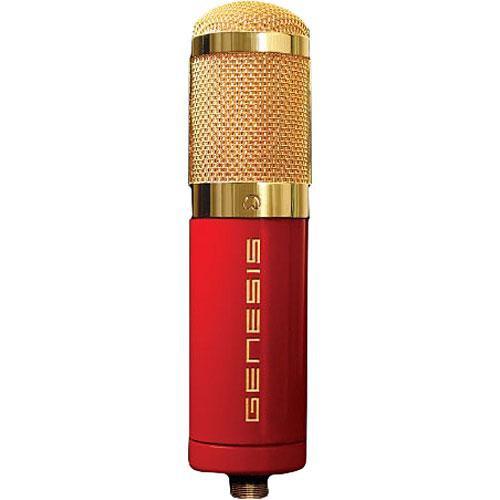

User Manual for MXL Genesis Large Diaphragm Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the MXL Genesis Large Diaphragm Tube Condenser
- Product category: Tube Microphones MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Tube Microphones
|
User manual for the MXL Genesis Large Diaphragm Tube Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|
Product description The MXL Genesis Tube Condenser Microphone delivers a professional solution for home studio, project studio and professional studio recording. The Mullard 12AT7 tube and large diaphragm cardioid capsule deliver the warmth, smooth highs and tight low-end associated with higher priced tube microphones.A -10dB Pad switch is provided for maximizing headroom and minimizing distortion when capturing excessive transients (peaks). A low-frequency roll-off switch minimizes low-end noise such as hum, wind or proximity effect.The Genesis features a cardioid polar pattern that effectively minimizes noise and off-axis feedback. Its wide frequency response and warm audio reproduction add character to both vocal and instruments alike. A dedicated power supply and cable is included. - Mullard 12AT7 tube
- The Genesis features the Mullard 12AT7 tube (or equivalent) for warm, signal reproduction with smooth highs and tight low-end response.
- -10dB Pad Switch
- A -10dB pad switch is provided for maximizing headroom and minimizing distortion when capturing excessive transients (peaks).
- Low-Frequency Roll-Off
- A low-frequency roll-off switch minimizes low-end noise such as hum, wind or proximity effect.
- Cardioid Polar Pattern
- The cardioid capsule minimizes off-axis noise and feedback.
- Dedicated Power Supply
- The tube requires a dedicated powers supply. The power supply and cable are both included.
UPC: 801813125313 In the Box MXL Genesis Large Diaphragm Tube Condenser Microphone Power Supply Mogami 7-Pin XLR Cable Mogami 3-Pin XLR Cable Shockmount Pop Filter Microfiber Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL Genesis Large Diaphragm Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL Genesis Specs | Transducer | Mullard 12AT7 Tube | | Polar Pattern | Cardioid | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 78dB (Ref. 1Pa A-weighted) | | Maximum Input Sound Level | 130dB/140dB (0dB, -10dB Pad) | | Power Requirements | Dedicated Power Supply | | Output Impedance | 200 ohms | | Output Connectors | 3-pin XLR | | Pad | -10dB Pad | | Low Frequency Roll-Off | 6dB/octave @ 150Hz | | Dimensions (LxDiameter) | 9.45 x 2.32" (240 x 59mm) | | Weight | 1.55 lbs | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 14.5 x 11.8 x 5.4" |
