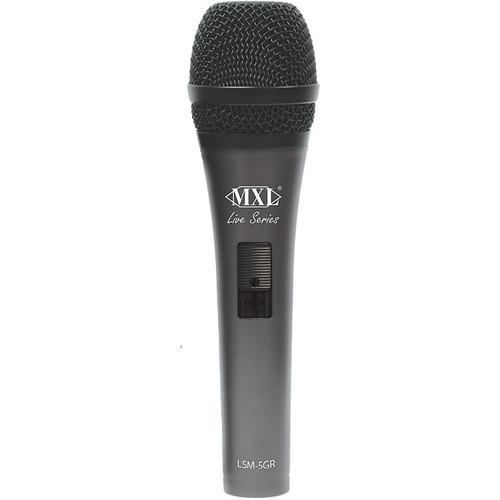

User Manual for MXL LSM-5GR Live Series Handheld Cardioid Dynamic Microphone with On Off Switch Click to enlarge the picture
Contents of the user manual for the MXL LSM-5GR Live Series Handheld Cardioid
- Product category: Dynamic Microphones MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Dynamic Microphones
|
User manual for the MXL LSM-5GR Live Series Handheld Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|
Product description The MXL LSM-5GR is a Live Series handheld cardioid dynamic microphone offering a frequency response tailored for reproduction of vocals and speech in concert venues, lectures, houses of worship, and presentations. Its dynamic element requires no power source and delivers a frequency response of 40 Hz to 15 kHz with a high-end boost tailored to help vocals cut through a mix. The cardioid polar pattern rejects sound behind the mic, yielding enhanced immunity to feedback and decreased pickup of room ambience. Its XLR 3-pin connector provides compatibility with most microphone preamps, mixer inputs, and audio interfaces. The LSM-5GR also features a noiseless magnetic on/off switch and ships with a hard-mount mic stand adapter. - Cardioid polar pattern provides excellent off-axis rejection for enhanced gain before feedback
- Convenient on/off switch for easy control of audio from the stage
- Engineered to allow vocals to cut through a mix
- Hard-mount mic stand adapter for easy attachment to a mic stand
UPC: 801813149302 In the Box MXL LSM-5GR Live Series Handheld Cardioid Dynamic Microphone with On/Off Switch Hard-Mount Mic Stand Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL LSM-5GR Live Series Handheld Cardioid Dynamic Microphone with On Off Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL LSM-5GR Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 15 kHz | | Pad | None | | Impedance | 600 Ohms | | Sensitivity | -54 dBV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.09" / 180 mm | | Diameter | 1.93" / 49 mm | | Weight | 10.41 oz / 295 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 10.9 x 3.1 x 1.9" |
