User Manual for MXL MM-4000 Mobile 4-Channel Audio Mixer and Interface Click to enlarge the picture
Contents of the user manual for the MXL MM-4000 Mobile 4-Channel Audio Mixer
- Product category: Analog Utility Mixers MXL
- Brand: MXL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MXL Analog Utility Mixers
 |
User manual for the MXL MM-4000 Mobile 4-Channel Audio Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MXL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MXL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MXL product will considerably shorten its lifespan!
|

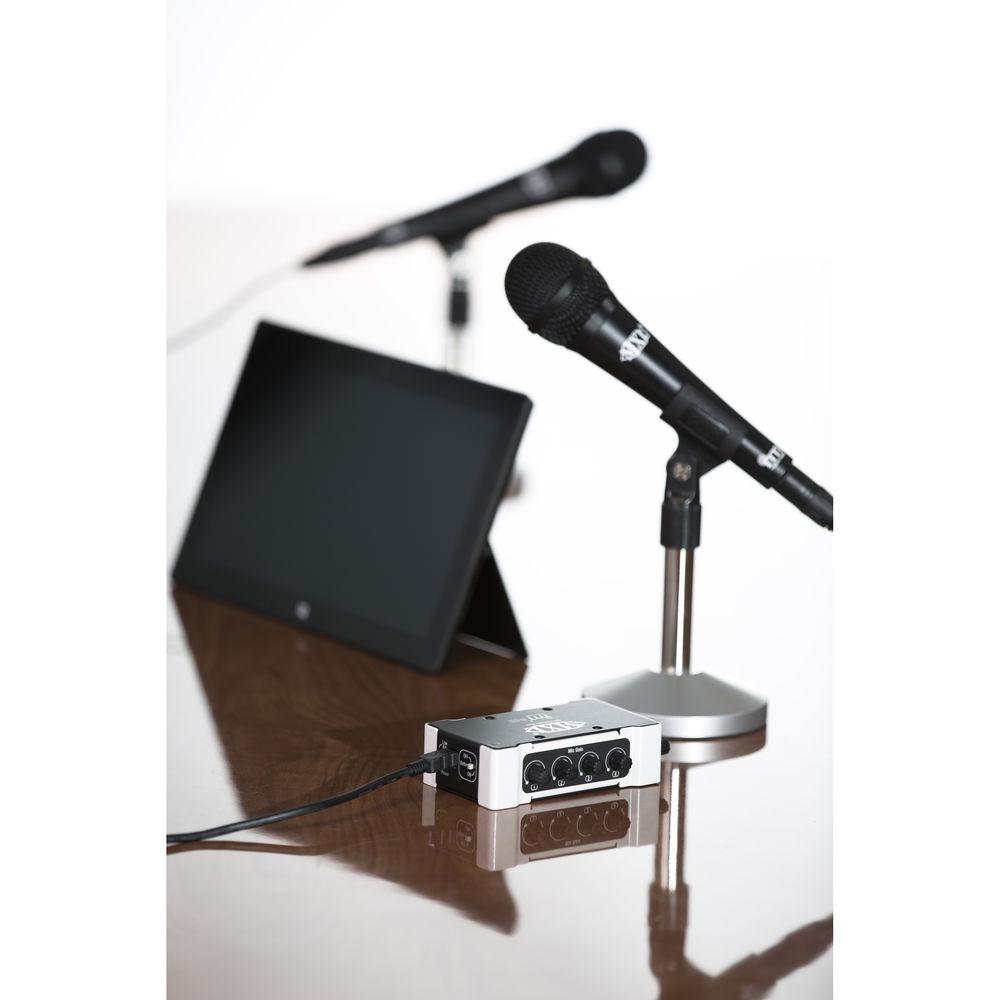

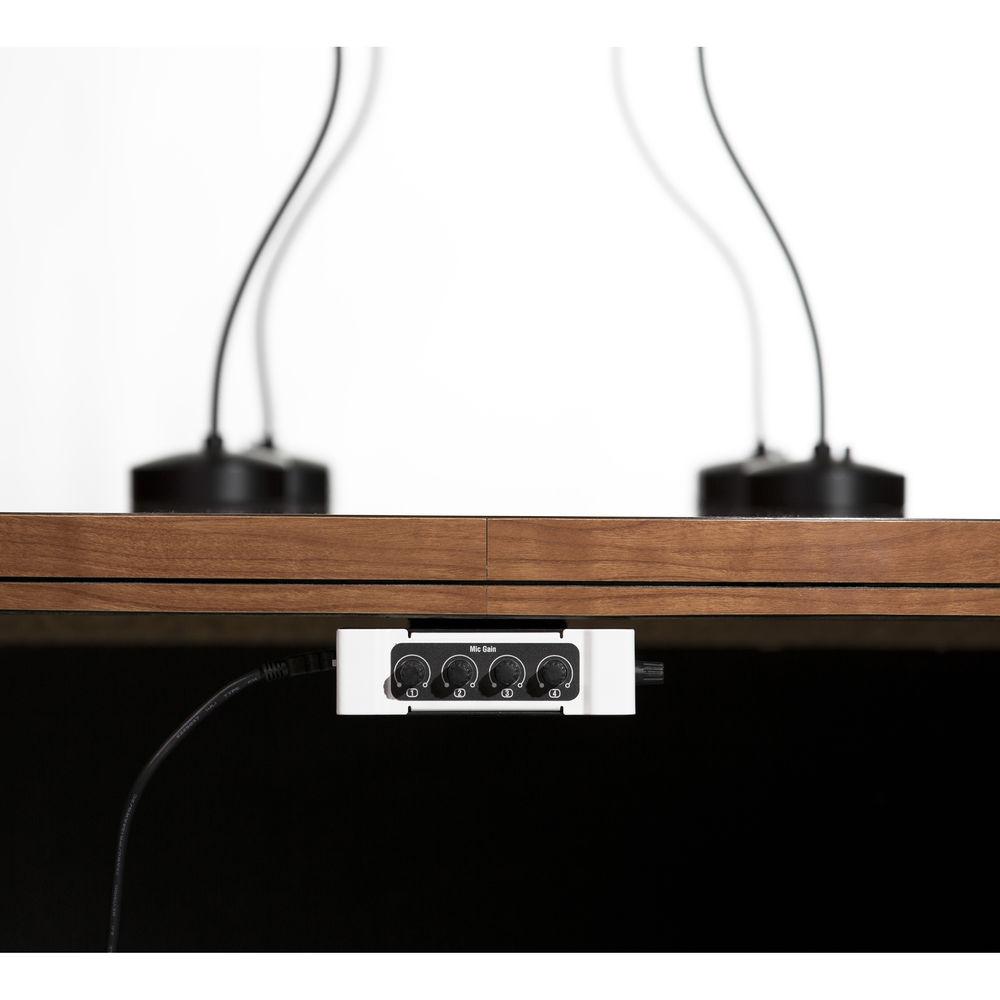

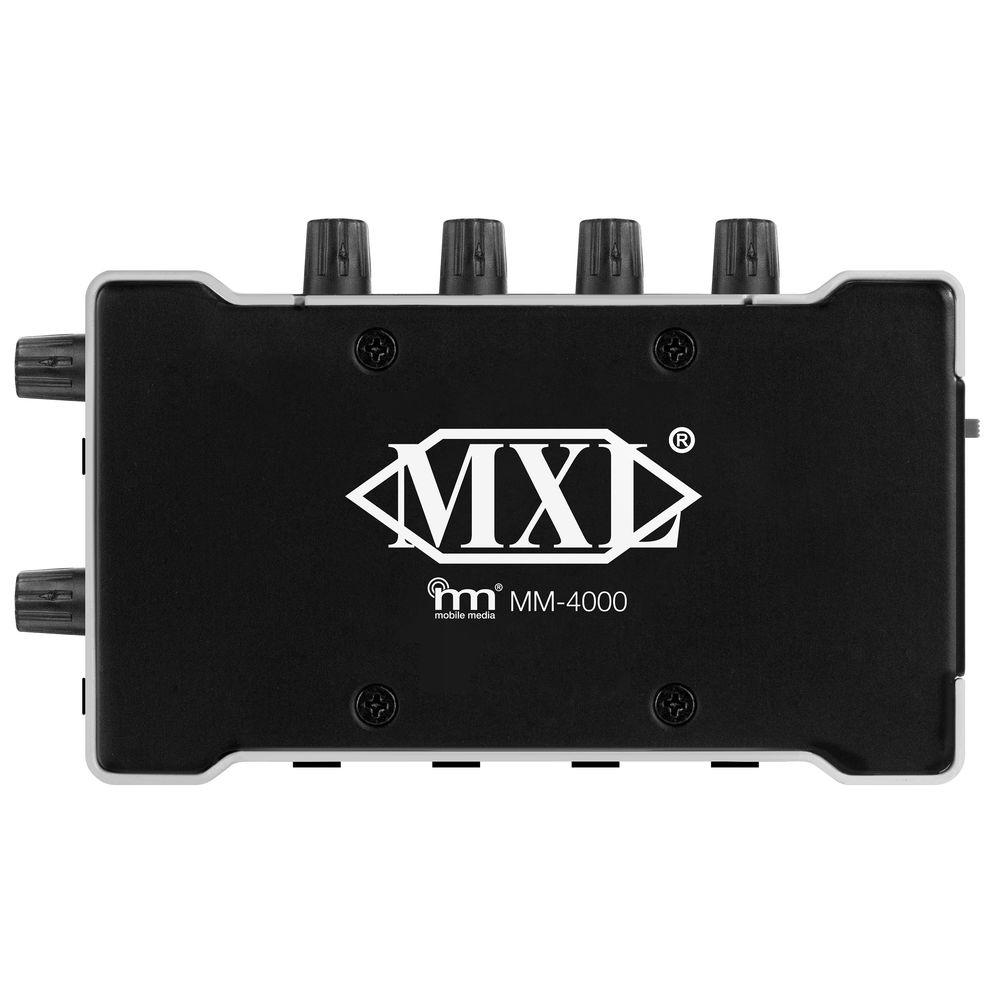

Product description The MM-4000 from MXL is a compact, battery- or USB-powered 4-channel audio mixer and audio interface designed for recording four microphones as a summed, mono signal to a mobile phone, tablet, DSLR, or computer.It supports up to four dynamic or electret condenser microphones through 3.5mm (1/8") TRRS input jacks. Each input offers approximately 45 dB of gain via a dedicated level control. A 3.5mm (1/8") TRRS line out jack, with adjustable level, is provided for recording the mono analog output to a mobile device or DSLR. The 3.5mm (1/8") TRS headphone output and corresponding level control enable easy headphone monitoring. In computer-based setups, USB connectivity allows use of the mixer as an audio interface for recording and playback.The MM-4000's compact design uses less area than a 3 x 5" card, making it easy to transport in small cases and bags. It can be powered via batteries or a USB connection, and features a switch to choose the desired power source. Multiple cables are included for connection with a variety of devices. -
- 4 x mic inputs via 3.5mm (1/8") TRRS jacks
- Supports dynamic and electret condenser microphones
- Approximately 45 dB of mic pre gain
- 3.5mm (1/8") TRRS mono line output jack with level control
- 3.5mm (1/8") TRS headphone output jack with level control
- Powered by 2 x AA batteries, 5 VDC USB power adapter, USB battery pack, or USB connection to a compatible device
- Includes USB cable and 3.5mm TRRS cable
- Includes 3.5mm TRRS to TRS cable
- Compatible with Mac OS X and Windows
UPC: 801813177213 In the Box MXL MM-4000 Mobile 4-Channel Audio Mixer and Interface Male TRRS to Male TRRS Multimedia Cable for MM-4000 Mini Mixer+ to Mobile Devices (6') wxdvqzzdauxabv Male TRS to Male TRRS Multimedia Cable for MM-4000 Mini Mixer+ to Select DSLR Cameras (6') USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MXL MM-4000 Mobile 4-Channel Audio Mixer and Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMXL MM-4000 Specs | Mic Pre Gain | 45 dB (approximately) | | Input Connections | 4 x 3.5 mm (1/8") TRRS mono | | Output Connectors | 1 x 3.5 mm (1/8") TRRS mono
1 x 3.5 mm (1/8") TRS stereo | | Interface Connector | USB Mini-B (5-pin) | | Phantom Power | No | | Power Requirements | 2 x AA batteries, 5 VDC USB power adapter, USB battery pack, or USB-powered via connection to a compatible device | | Compatibility | Mac OS X
Windows XP or higher | | Dimensions (W × H × D) | 4.8 x 1.3 x 2.9" / 121 x 32 x 73 mm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 12.2 x 6.4 x 2.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
